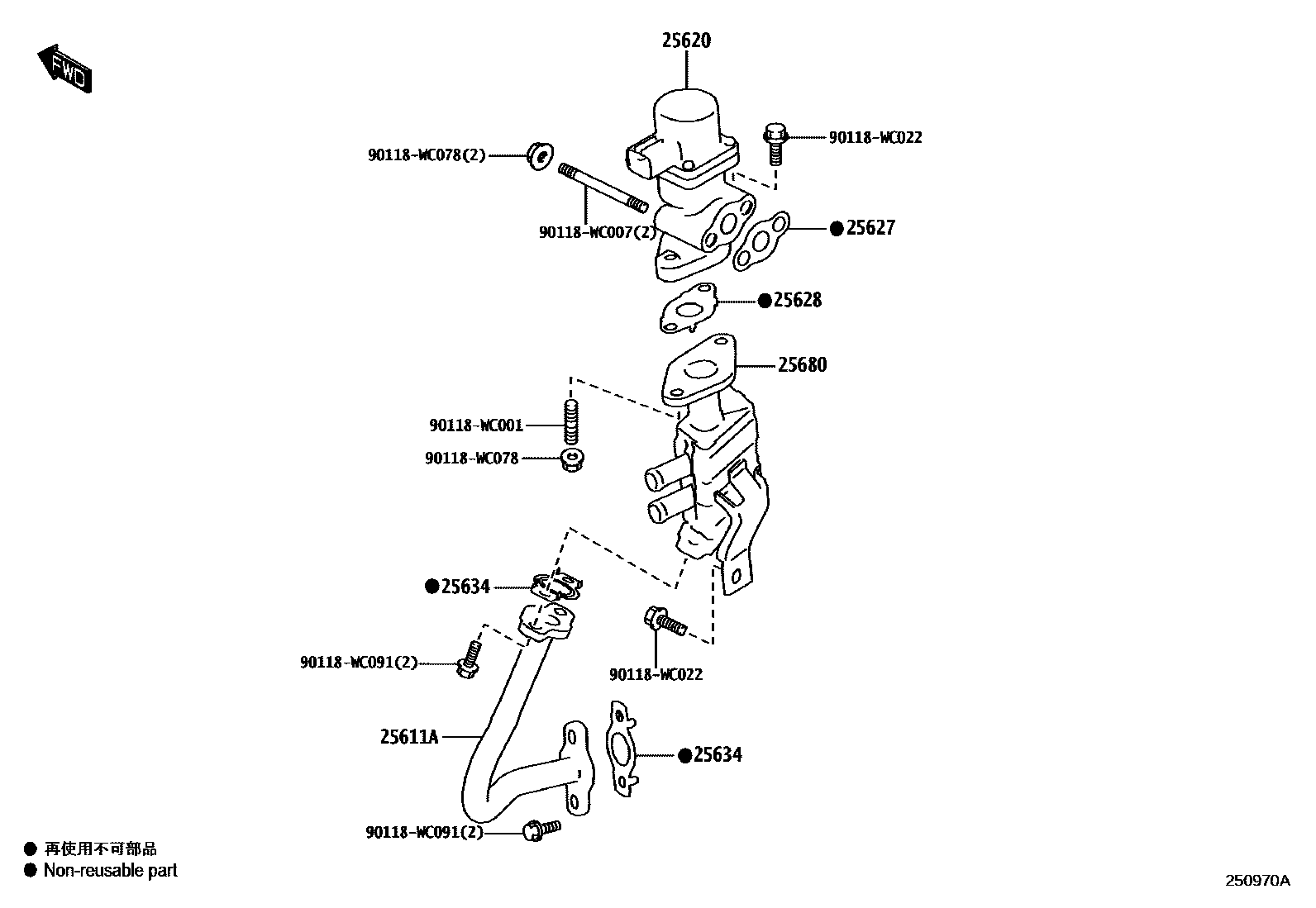

Toyota VITZ — EXHAUST GAS RECIRCULATION SYSTEM

25611APIPE, EGR, NO.1

25620VALVE ASSY, EGR

main25620-WC001

25627GASKET, EGR VALVE

main25627-WC001

25628GASKET, EGR INLET

main25628-WC002

25634GASKET, EGR PIPE

main25634-WC001

25680COOLER ASSY, EGR

main25680-WC001

90118WC001

main90118-WC001

90118WC007

main90118-WC007

90118WC022

main90118-WC022

90118WC078

main90118-WC078

90118WC091

main90118-WC091

11 parts on this diagram · 1 diagram in section
