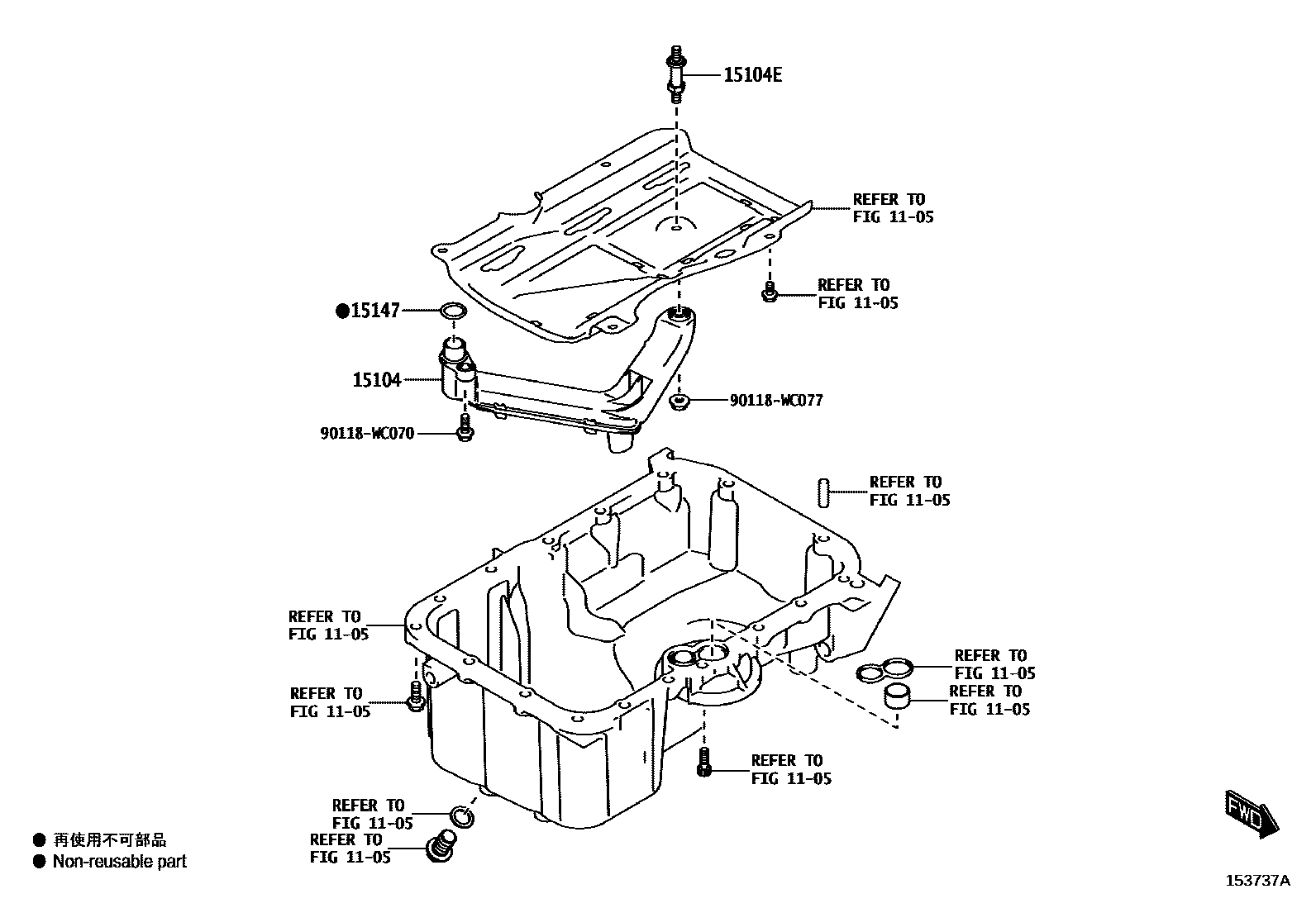

Toyota VITZ — ENGINE OIL PUMP

0001 1 0002 1

1105

15104STRAINER SUB-ASSY, OIL

main15104-WC003

main90118-WC300

15104EBOLT, STUD(FOR OIL STRAINER)

15147GASKET, OIL STRAINER

main90118-WC337

90118WC070

main90118-WC070

90118WC077

main90118-WC077

6 parts on this diagram · 2 diagrams in section
