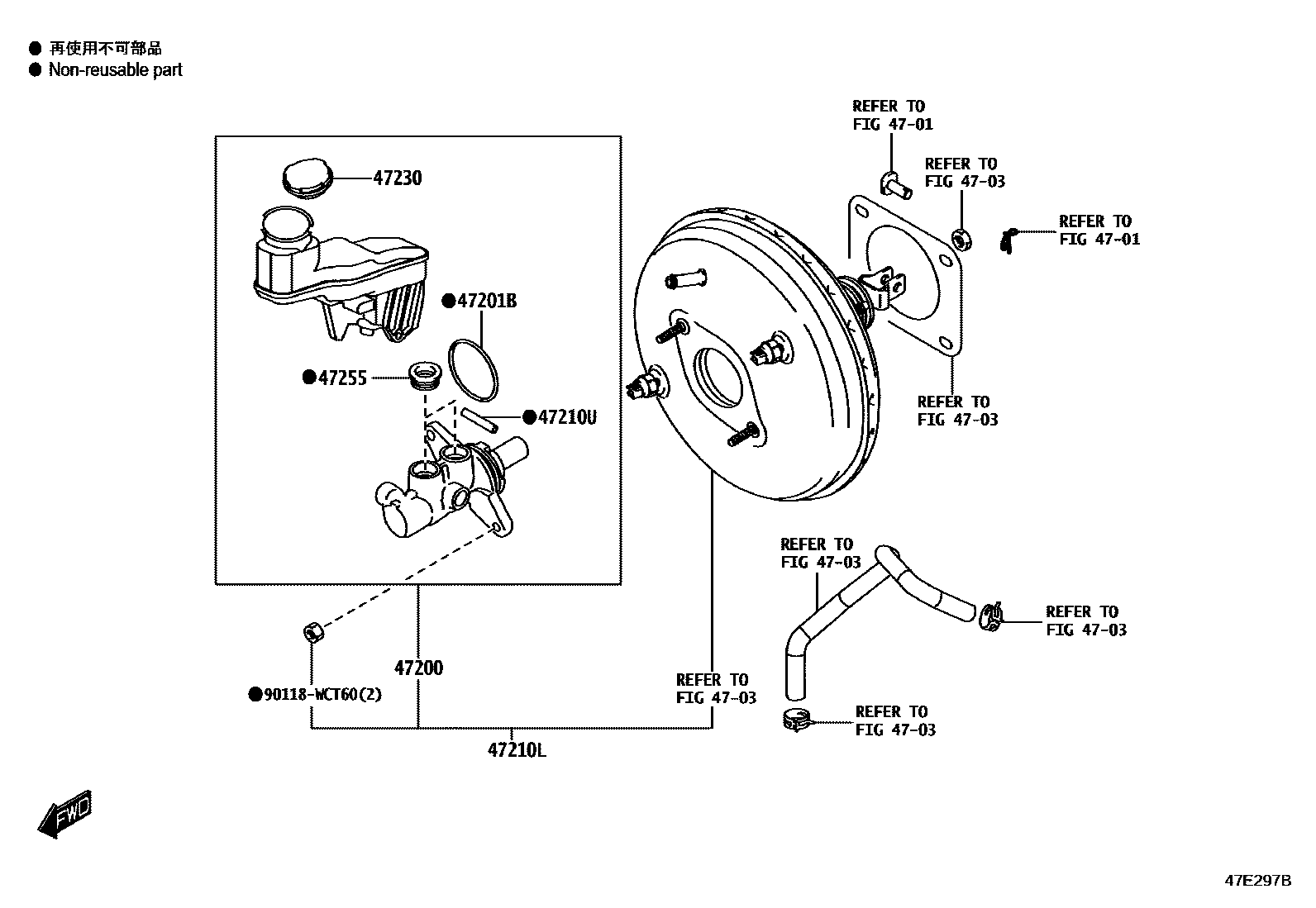

Toyota VITZ — BRAKE MASTER CYLINDER

0001 1 0002 1

4701

4703

47200CYLINDER ASSY, BRAKE MASTER

main47201-WC028

main47201-WC033

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47211-WC005

main90118-WCD71

main90118-WCT61

47201BRING, O(FOR BRAKE MASTER CYLINDER)

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-WC003

main47230-WC009

47255GROMMET, MASTER CYLINDER RESERVOIR

main90118-WCD69

main90118-WCT63

90118WCT60

main90118-WCT60

10 parts on this diagram · 2 diagrams in section
