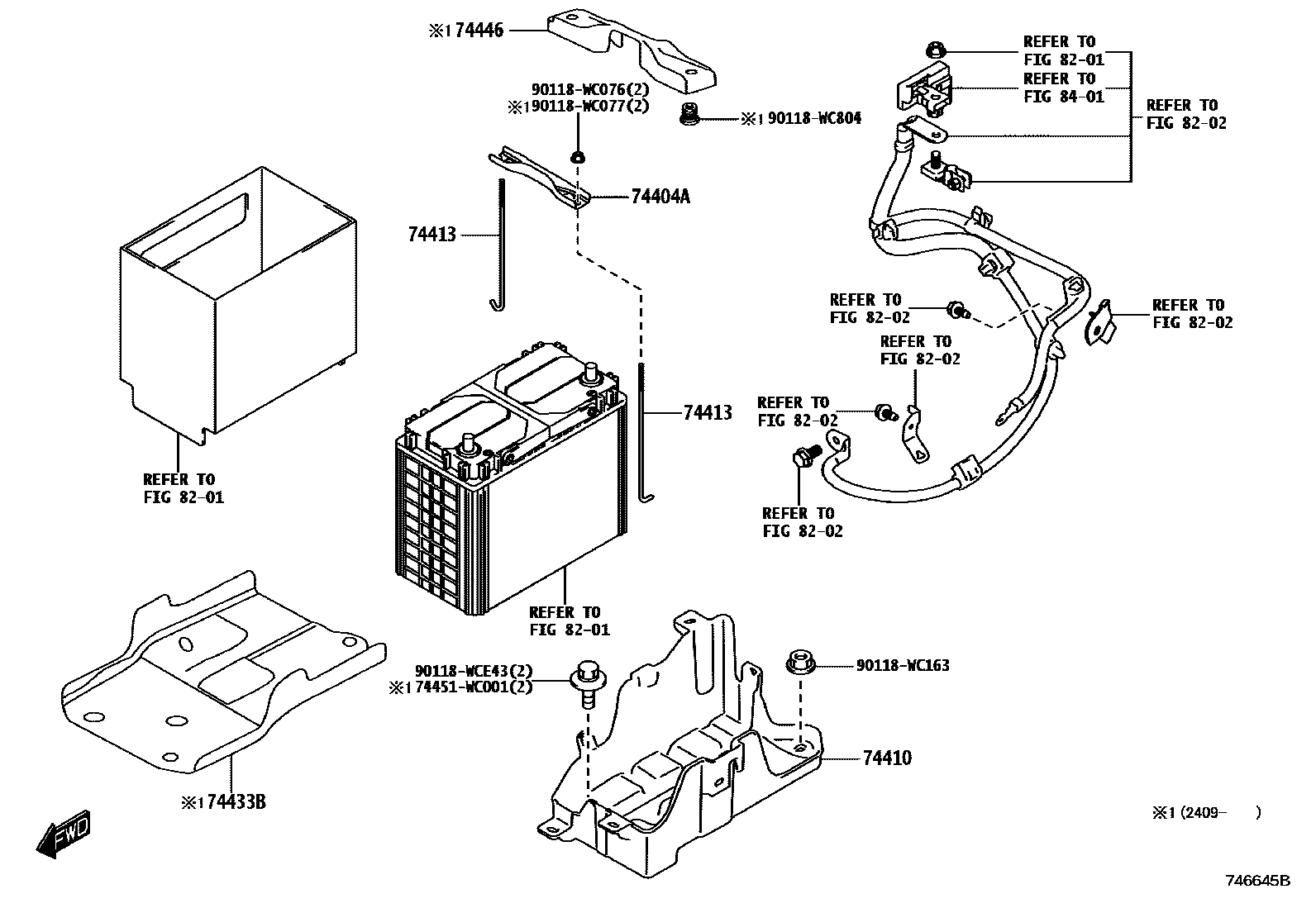

Toyota VITZ — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

74410CARRIER ASSY, BATTERY

main74410-WC010

main74410-WC013

74413BOLT, BATTERY CLAMP

main74413-WC001

74433BSUPPORT, BATTERY TRAY, NO.1

74446BAND, BATTERY

main58218-WC001

8201

8202

8401

74451WC001PLATE, BATTERY CARRIER SUPPORT

main74451-WC001

90118WC076

main90118-WC076

90118WC077

main90118-WC077

90118WC163

main90118-WC163

90118WC804

main90118-WC804

90118WCE43

main90118-WCE43

14 parts on this diagram · 1 diagram in section
