Toyota VIOS — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0007 1ENGINE 0008 1ENGINE 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1DOOR 0012 1FLOOR & ROOF 0013 1CLAMP & BRACKET 0014 1CONNECTOR 1/2 0015 1CONNECTOR 2/2

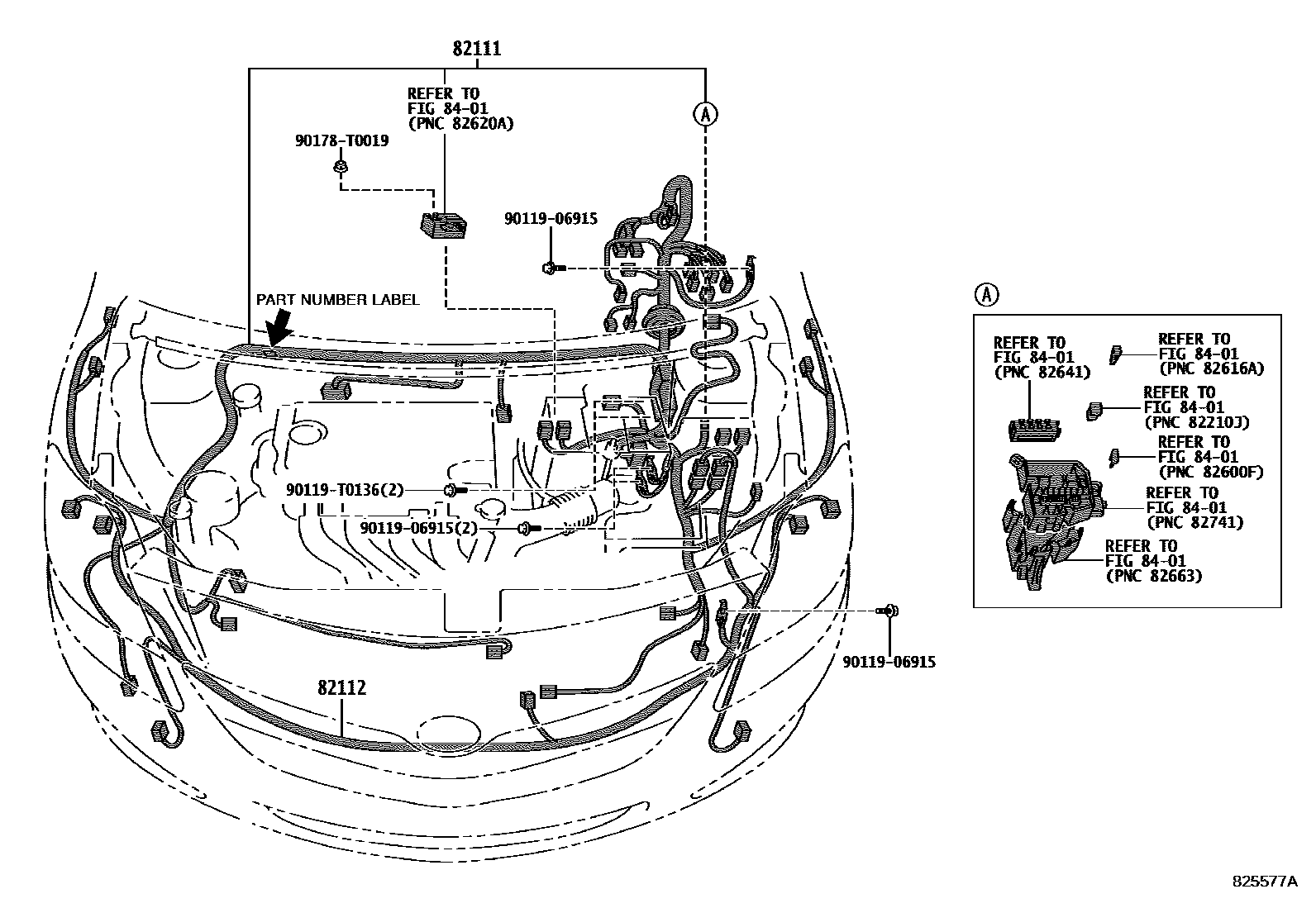

82111WIRE, ENGINE ROOM MAIN

main82111-0DF80iNCP93..ATM..15E200702-200805

main82111-0DF81iNCP93..ATM..15E200805-200909

main82111-0DF82iNCP93..ATM..15E200909-201003

main82111-0DF90iNCP93..(15E,15J)..TH200702-200909

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

main82111-0DF90iNCP93..15G..TH200702-200909

SINGAPORE & BRUNEI SPEC

main82111-0DF91iNCP93..15G..TH200909-201003

SINGAPORE & BRUNEI SPEC

main82111-0DF91iNCP93..(15E,15J)..TH200909-201003

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

main82111-0DG10iNCP93..RHD..(15J,LIMO)200702-200807

main82111-0DG11iNCP93..ATM..15J200807-200909

main82111-0DG12iNCP93..ATM..15J200909-201003

main82111-0DG20iNCP93..15G..TH;NCP93..15E..IDN200702-200909

main82111-0DG21iNCP93..15G..TH;NCP93..15E..IDN200909-201003

main82111-0DG30iNCP93..15S;NCP93..15G..IDN200702-200909

main82111-0DG31iNCP93..15S;NCP93..15G..IDN200909-201003

main82111-0DG40iNCP93..E..VN200709-200910

main82111-0DG41iNCP93..E..VN200910-201004

main82111-0DG50iNCP93..LHD..(15G,G)200708-200910

main82111-0DG51iNCP93..LHD..(15G,G)200910-201004

main82111-0DG60iNCP92..13J200708-201004

main82111-0DG70iNCP92..13E200708-200910

main82111-0DG71iNCP92..13E200910-201004

main82111-0DJ20iNCP93..E..MA200710-200910

main82111-0DJ21iNCP93..(E,G,S)..MA200910-201004

main82111-0DJ30iNCP93..J200710-200910

main82111-0DJ31iNCP93..J200910-201004

main82111-0DJ90iNCP93..ATM..15E200702-200805

SRS AIR BAG-WITHOUT

main82111-0DJ91iNCP93..ATM..15E200805-200909

SRS AIR BAG-WITHOUT

main82111-0DJ92iNCP93..MTM..15E..TH200909-201003

SRS AIR BAG-WITHOUT

main82111-0DK10iNCP93..LIMO..VN200709-201004

main82111-0DK20iNCP93..E..MA200710-200804

main82111-0DQ20iNCP93..RHD..MTM..(15J,LIMO)200807-201003

J-ECO PACKAGE

main82111-0DS40iNCP93..15G..IDN201003-201102

main82111-0DS41iNCP93..MTM..15G..IDN201102-201304

main82111-0DS50iNCP93..ATM..15E201003-201304

main82111-0DS60iNCP93..15G..TH201003-201106

sub82111-0DS61

main82111-0DS61iNCP93..15G..TH201107-201304

main82111-0DS70iNCP93..MTM..15E..TH201003-201209

SRS AIR BAG-WITHOUT

main82111-0DS71iNCP93..MTM..15E..TH201209-201304

main82111-0DS80iNCP93..ATM..15J201003-201209

main82111-0DS81iNCP93..ATM..15J201209-201304

main82111-0DS90iNCP93..15G..TH201003-201304

SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT

main82111-0DT00iNCP93..RHD..MTM..(15J,LIMO)201003-201209

J-ECO PACKAGE

main82111-0DT01iNCP93..ATM..15J201209-201304

J-ECO PACKAGE

main82111-0DT10iNCP93..J201004-201310

main82111-0DT20iNCP93..(E,G,S)..MA201004-201310

main82111-0DT30iNCP93..LHD..(15G,G)201004-201403

main82111-0DT40iNCP92..MTM..13E201004-201307

main82111-0DT50iNCP93..E..VN201004-201403

main82111-0DT60iNCP93..LIMO..VN201004-201403

main82111-0DT70iNCP93..LIMO..VN201004-201209

main82111-0DT70iNCP93..LIMO..VN201209-201403

SRS AIR BAG-WITHOUT

main82111-0DV90iNCP93..15E..IDN201003-201304

main82111-0DW00iNCP93..(15E,15J)..TH201003-201304

SINGAPORE & BRUNEI SPEC

main82111-0DX20iNCP92..ATM201004-201307

main82111-0U090iNCP93..ATM..IDN201102-201304

main82111-0U101iNCP93..15G..TH201003-201304

G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

main82111-0UF00iNCP93..LIMO..IDN201209-201304

SRS AIR BAG-WITHOUT

82112WIRE, ENGINE ROOM, NO.2

main82112-0D100iNCP93..RHD..(15E,15J,LIMO)200702-201004

main82112-0D110iNCP93..(15G,E,G,S)..(MA,PH,VN)200702-201004

main82112-0D120iNCP93..15S;NCP93..15G..IDN200702-201003

8401

9011906915

main90119-06915¥60

90119T0136

main90119-T0136

90178T0019

main90178-T0019

6 parts on this diagram · 13 diagrams in section
