Toyota VIOS — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1STEERING 0010 1STEERING 0012 1DOOR,ROOF,FLOOR,SEAT & LAGGAG

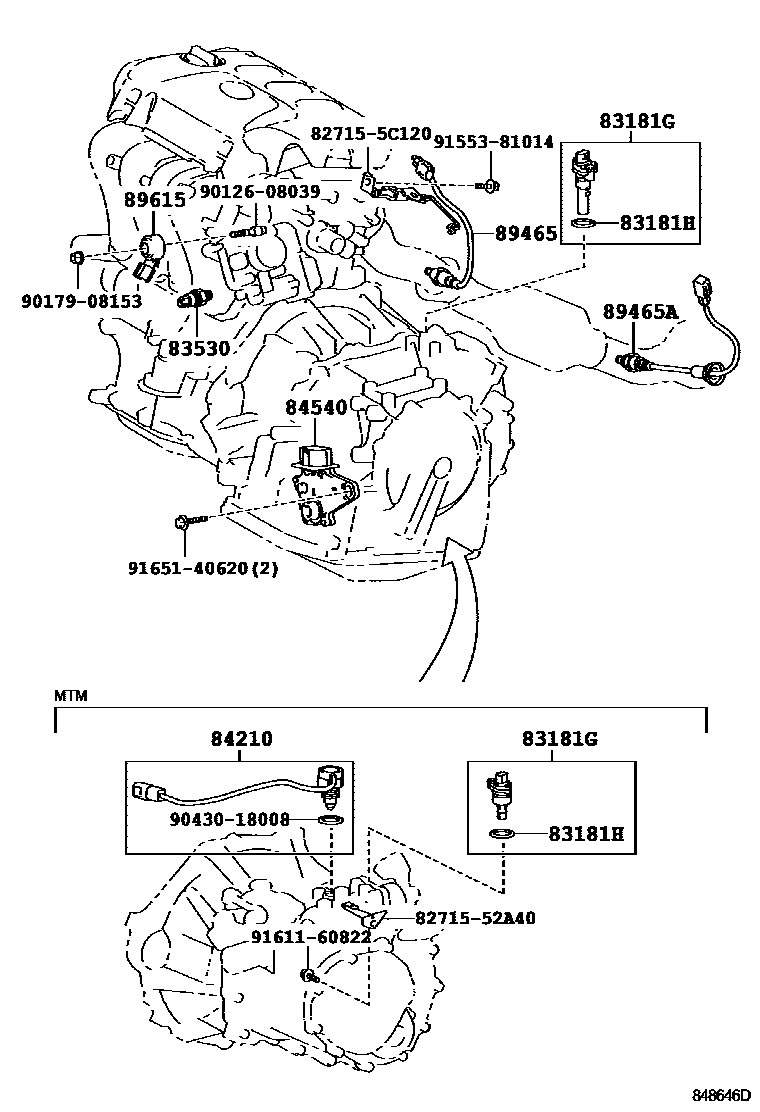

83181GSENSOR, SPEEDOMETER

main83181-12020iNCP9#..LHD..(13J,LIMO)¥0200708-201004

main83181-12020iNCP9#..MTM..(13J,15J,LIMO)¥0201003-201403

main83181-12020iNCP93..RHD..MTM..(15J,LIMO)¥0200807-201004

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iNCP9#..LHD..(13J,LIMO)¥170200708-201004

main96711-24030iNCP9#..MTM..(13J,15J,LIMO)¥170201003-201403

main96711-24030iNCP93..RHD..MTM..(15J,LIMO)¥170200807-201003

SINGAPORE & BRUNEI SPEC

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP9#¥1,970201003-201403

DENSO

main83530-28020iNCP93..IDN,TH¥1,970200702-201003

main83530-28020iNCP9#..MA,PH,VN¥1,970200702-201004

main83530-60020iNCP9#¥1,970201003-201403

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52010iNCP9#..MTM¥1,360200702-201004

main84210-52010iNCP9#..MTM¥1,360201003-201403

84540SWITCH ASSY, NEUTRAL START

main84540-46010iNCP93..ATM¥8,400200702-201004

main84540-46010iNCP9#..ATM¥8,400201003-201403

89465SENSOR, OXYGEN

main89465-52380iNCP93..IDN,TH¥8,700200702-201003

main89465-52380iNCP9#..MA,PH,VN¥8,700200702-201004

main89465-52380iNCP9#¥8,700201003-201403

89465ASENSOR, OXYGEN NO.2

main89465-52370iNCP93..IDN,TH¥10,500200702-201003

main89465-52370iNCP9#..MA,PH,VN¥10,500200702-201004

main89465-52370iNCP9#¥10,500201003-201403

89615SENSOR, KNOCK CONTROL

main89615-20090iNCP93..IDN,TH¥2,370200702-201003

main89615-20090iNCP9#..MA,PH,VN¥2,370200702-201004

main89615-20090iNCP9#¥2,370201003-201403

8271552A40BRACKET,WIRING HARNESS CLAMP

main82715-52A40¥220

827155C120BRACKET,WIRING HARNESS CLAMP

main82715-5C120

9012608039

main90126-08039¥240

9017908153

main90179-08153¥90

9043018008

main90430-18008¥110

9155381014

main91553-81014¥100

9161160822

main91611-60822¥170

9165140620

main91651-40620¥70

16 parts on this diagram · 10 diagrams in section
