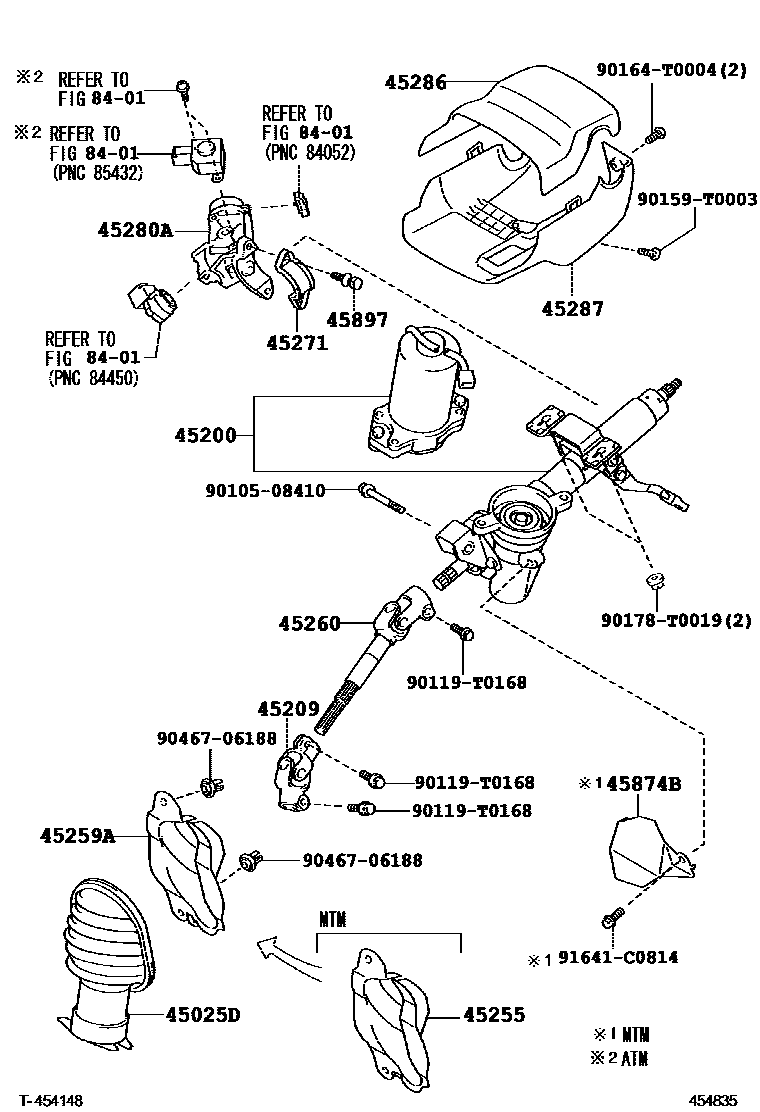

Toyota VIOS — STEERING COLUMN & SHAFT

0001 1 0002 1W(SMART KEY SYSTEM) 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D110iNCP93..IDN,TH200702-201003

main45025-0D110iNCP9#..MA,PH,VN200702-201004

main45025-0D110iNCP9#201003

45200POST ASSY, STEERING

main45200-0D250iNCP93..MA,TH;NCP93..MTM..IDN200702-200812

sub45200-0D252

main45200-0D251iNCP93..MA200901-201004

sub45200-0D252

main45200-0D251iNCP93..TH;NCP93..MTM..IDN200901-201003

sub45200-0D252

main45200-0D252iNCP93..MA,TH;NCP93..MTM..IDN201003-201310

main45200-0D260iNCP93..ATM..IDN200702-200812

G-LIMITED

sub45200-0D262

main45200-0D261iNCP93..ATM..IDN200901-201003

G-LIMITED

sub45200-0D262

main45200-0D262iNCP93..ATM..IDN201003-201304

G-LIMITED

main45200-0D270iNCP9#..LHD200708-200812

sub45200-0D272

main45200-0D271iNCP9#..LHD200901-201004

sub45200-0D272

main45200-0D272iNCP9#..LHD201004

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D030iNCP9#..MA,PH,VN200702-201004

main45209-0D030iNCP93..IDN,TH200702-201003

main45209-0D030iNCP9#201003

45255PLATE, STEERING COLUMN HOLE COVER

main45255-0D050iNCP93..MTM..(IDN,TH)200702-201003

main45255-0D050iNCP93..MTM..MA200702-201004

main45255-0D050iNCP93..RHD..MTM201003-201304

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D030iNCP93..ATM..MA200702-201004

main45259-0D030iNCP93..ATM..(IDN,TH)200702-201003

main45259-0D030iNCP93..RHD..ATM201003-201310

main45259-0D070iNCP9#..LHD201004

main45259-0D070iNCP9#..LHD200708-201004

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D100iNCP93..MA200702-201004

main45260-0D100iNCP93..IDN,TH200702-201003

main45260-0D100iNCP93..RHD201003-201310

main45260-0D110iNCP9#..LHD201004

main45260-0D110iNCP9#..LHD200708-201004

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP9#..MA,PH,VN¥440200702-201004

main45271-52030iNCP9#¥440201003-201403

main45271-52030iNCP93..IDN,TH¥440200702-201003

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06080iNCP93..ATM..TH200702-201003

main45280-06080iNCP9#..ATM..(MA,PH,TH,VN)201003-201403

main45280-06080iNCP93..ATM..(MA,PH,VN)200702-201004

main45280-06100iNCP9#..MTM..(MA,PH,VN)200702-201004

main45280-06100iNCP93..MTM..(IDN,TH)200702-201003

main45280-06100iNCP9#..MTM201003-201403

45286COVER, STEERING COLUMN

main45286-0D080-B0iNCP93..PH;NCP9#..13E,13J,15S200702-201004

DK.GRAY,TRIM1#

sub45286-0D080

main45286-0D080-B0iNCP93..PH;NCP9#..13E,13J,15S200702-201004

DK.GRAY,TRIM1#,4#

sub45286-0D080

main45286-0D080-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

sub45286-0D080

main45286-0D080-B0iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)201003-201403

DK.GRAY,TRIM1#

sub45286-0D080

main45286-0D080-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub45286-0D080

45287COVER, STEERING COLUMN, LWR

main45287-0D050-B0iNCP93..PH;NCP9#..13E,13J,15S200702-201004

DK.GRAY,TRIM1#

sub45287-0D050

main45287-0D050-B0iNCP93..PH;NCP9#..13E,13J,15S200702-201004

DK.GRAY,TRIM1#,4#

sub45287-0D050

main45287-0D050-B0iNCP93..G..VN200709-201004

DK.GRAY,TRIM4#

sub45287-0D050

main45287-0D050-B0iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)201003-201403

DK.GRAY,TRIM1#

sub45287-0D050

main45287-0D050-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

ASH BROWN,TRIM4#

sub45287-0D050

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-0D030iNCP93..MTM..(IDN,TH)200702-201003

main45874-0D030iNCP93..MTM..MA200702-201004

main45874-0D030iNCP93..RHD..MTM201003-201304

45897BOLT, STEERING LOCK SET

main45897-12020iNCP93..IDN,TH¥210200702-201003

main45897-12020iNCP9#..MA,PH,VN¥210200702-201004

main45897-12020iNCP9#¥210201003-201403

8401

9010508410

main90105-08410¥220

90119T0168

main90119-T0168

90159T0003

main90159-T0003¥60

90164T0004

main90164-T0004¥110

90178T0019

main90178-T0019

9046706188

main90467-06188¥160

91641C0814

main91641-C0814¥130

20 parts on this diagram · 3 diagrams in section
