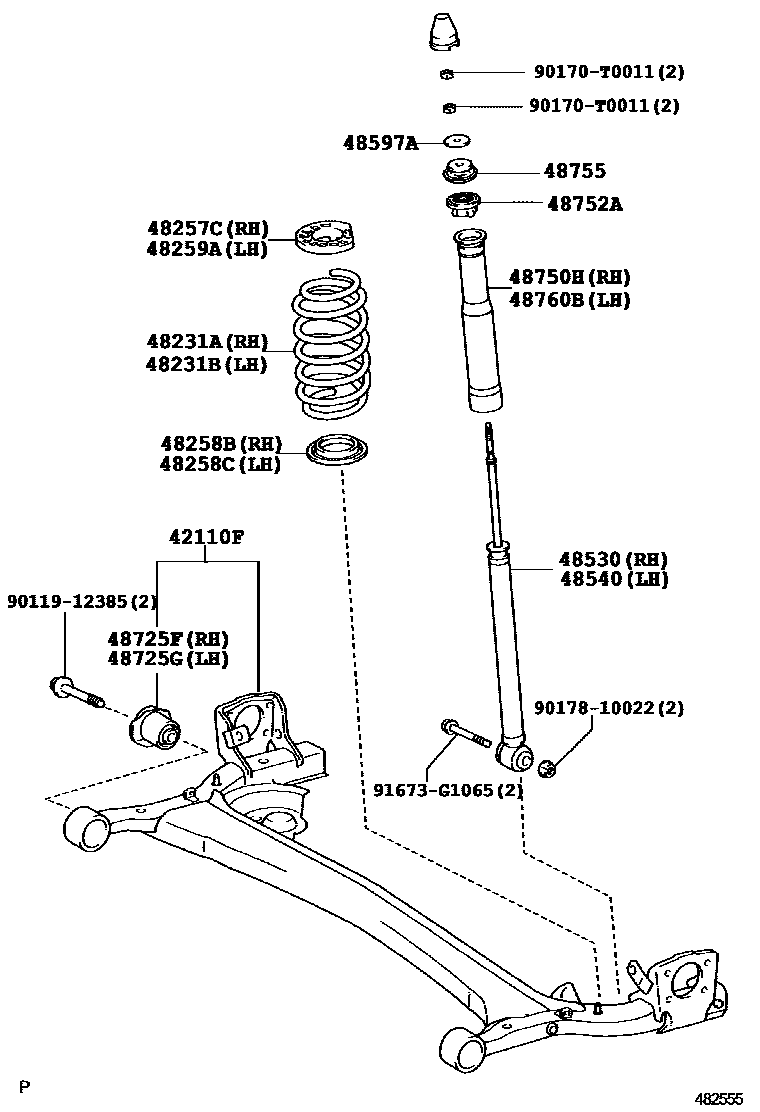

Toyota VIOS — REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-0D171iNCP9#..13E,13J,15E,15J,LIMO200702-201403

main42110-0D181iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC

main42110-0D181iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201403

48231ASPRING, COIL, REAR RH

main48231-0D240iNCP93..RHD..(15E,15G,15J,LIMO)200702-201403

main48231-0D250iNCP93..15S200702-201003

main48231-0D260iNCP93..MA200710-201310

48231BSPRING, COIL, REAR LH

main48231-0D240iNCP93..RHD..(15E,15G,15J,LIMO)200702-201403

main48231-0D250iNCP93..15S200702-201003

main48231-0D260iNCP93..MA200710-201310

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D041iNCP93..IDN,TH200702-201403

main48257-0D060iNCP93..MA200710-201310

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D060iNCP9#..LHD200702-201403

main48258-0D080iNCP93..MA200710-201310

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D060iNCP93..IDN,TH200702-201403

main48258-0D080iNCP93..MA200710-201310

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D041iNCP9#..IDN,PH,TH,VN200702-201403

main48257-0D060iNCP93..MA200710-201310

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-0D250iNCP9#..IDN,PH,TH,VN200702-201211

MARK 48530-0D250

sub48530-0D251

main48530-0D251iNCP9#..IDN,PH,TH,VN201212-201403

MARK 48530-0D251

main48530-0D270iNCP93..MA200710-201310

MARK 48530-0D270

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-0D250iNCP93..IDN,TH200702-201211

MARK 48530-0D250

sub48530-0D251

main48530-0D251iNCP9#..IDN,PH,TH,VN201212-201403

MARK 48530-0D251

main48530-0D270iNCP93..MA200710-201310

MARK 48530-0D270

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iNCP9#¥410200702-201403

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0D070iNCP9#..IDN,PH,TH,VN200702-201403

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0D070iNCP93..IDN,TH200702-201403

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0D060iNCP9#..IDN,PH,TH,VN200702-201403

sub48750-0D061

main48750-52100iNCP93..MA¥2,170200710-201310

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-0D020iNCP9#..MA,PH,VN200702-201403

48755SUPPORT, REAR SUSPENSION

main48755-0D100iNCP9#..MA,PH,VN200702-201403

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-0D060iNCP9#..IDN,PH,TH,VN200702-201403

sub48750-0D061

main48750-52100iNCP93..MA¥2,170200710-201310

9011912385

main90119-12385¥360

90170T0011

main90170-T0011

9017810022

main90178-10022¥100

91673G1065

main91673-G1065¥190

20 parts on this diagram · 1 diagram in section
