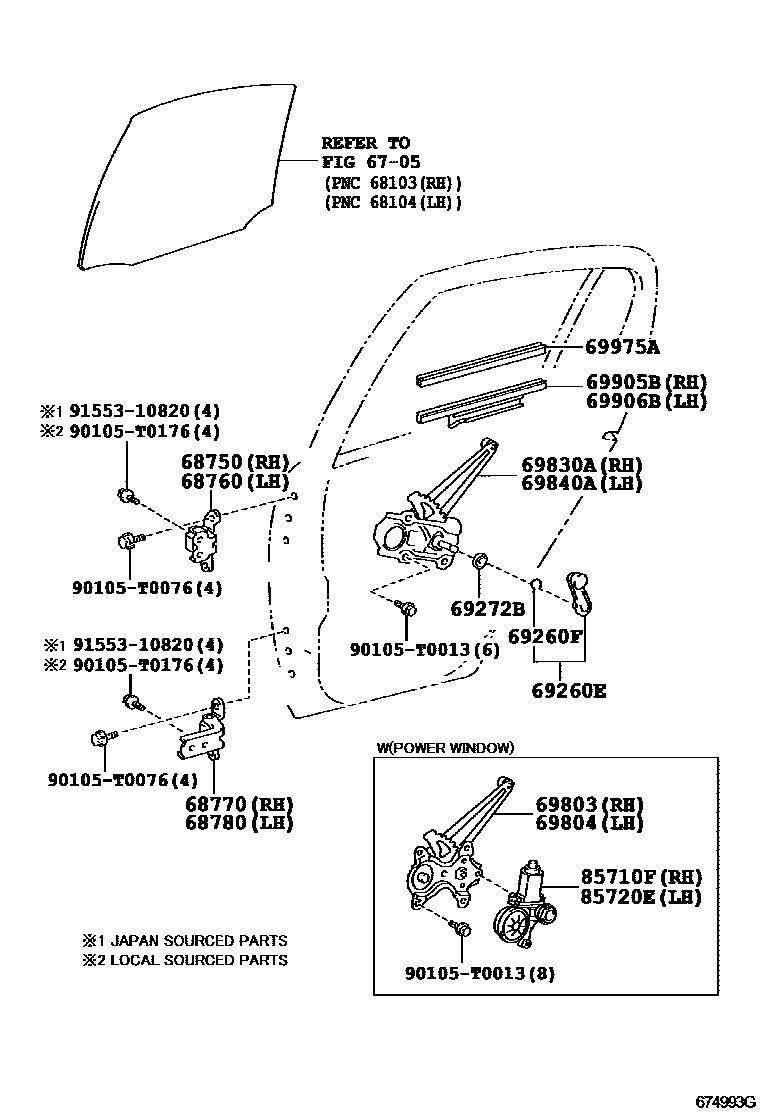

Toyota VIOS — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D030iNCP9#¥2,030200702-201403

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D030iNCP9#¥2,030200702-201403

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D030iNCP9#¥2,030200702-201403

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D030iNCP9#¥2,030200702-201403

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-B6iNCP92..13J200708-201004

DK.GRAY,TRIM1#

sub69260-22030¥1,610

main69260-52070-B0iNCP93..LIMO200702-201403

DK.GRAY,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274iNCP93..LIMO..IDN¥160200702-201403

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-52010iNCP93..LIMO..IDN¥250200702-201403

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0D070iNCP93..RHD..(15E,15G,15J,15S)200702-201403

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0D070iNCP9#..13E,13J,15E,15G,15J,E,G,J,S200702-201403

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-52190iNCP93..LIMO..IDN¥5,100200702-201403

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-52190iNCP93..LIMO..IDN¥5,100200702-201403

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D080iNCP93..IDN,TH200702-201403

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D070iNCP93..IDN,TH200702-201403

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D050iNCP93..IDN,TH200702-201403

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K010iNCP93..RHD..(15E,15G,15J,15S)200702-201403

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0K010iNCP93..RHD..(15E,15G,15J,15S)200702-201403

90105T0013

main90105-T0013¥60

90105T0076

main90105-T0076

90105T0176

main90105-T0176

9155310820

main91553-10820¥80

21 parts on this diagram · 1 diagram in section
