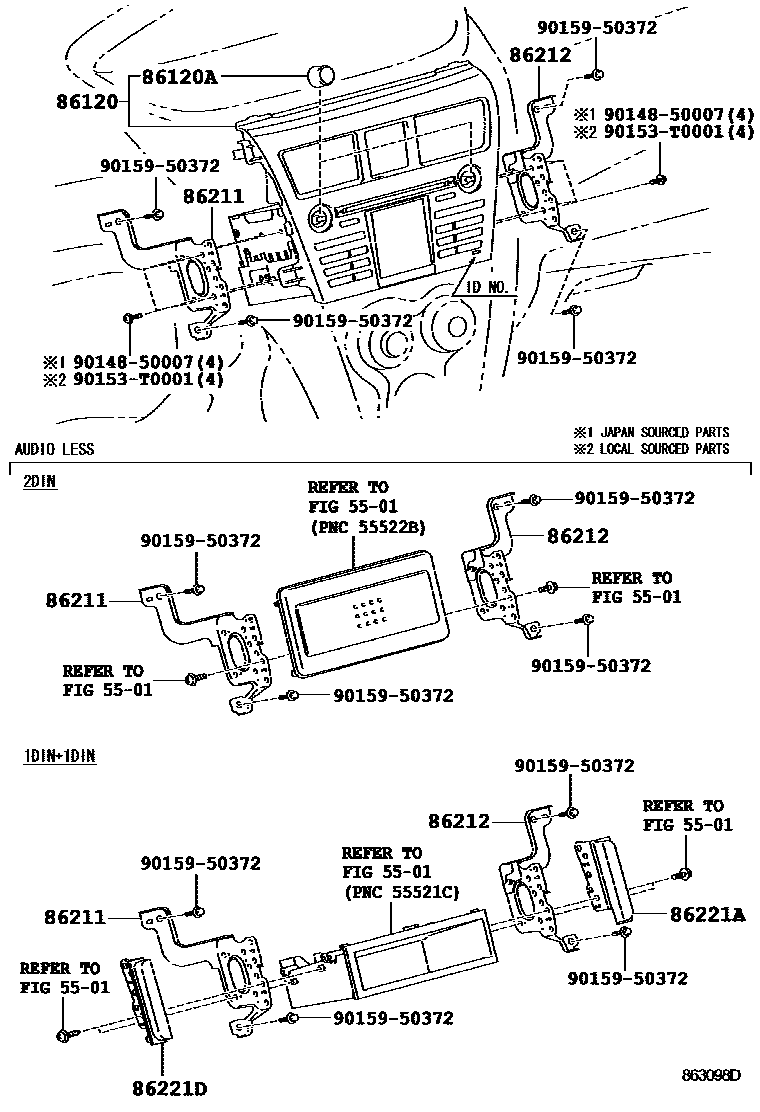

Toyota VIOS — RADIO RECEIVER & AMPLIFIER & CONDENSER
5501
86120RECEIVER ASSY, RADIO
PANASONIC,ID=52866
PANASONIC,ID=52866,AUDIO-LESS AUDIO 6SP,LESS COVER
PANASONIC,ID=52866,SINGAPORE & BRUNEI SPEC
FUJITSU TEN,ID=12854
FUJITSU TEN,ID=12855
PANASONIC,ID=52817
PANASONIC,ID=52818,SINGAPORE & BRUNEI SPEC&AUDIO(OVERSEAS MARKET)-RADIO LESS 4SP&EMV & NAVIGATION SYSTEM-AVN
PANASONIC,ID=52818
PANASONIC,ID=52819
PANASONIC,ID=52818
PANASONIC,ID=52819
PANASONIC,ID=52867
PANASONIC,ID=52867,SINGAPORE & BRUNEI SPEC
PANASONIC,ID=52866,AUDIO-LESS AUDIO 6SP,LESS COVER
PANASONIC,ID=52866
PANASONIC,ID=52868
PANASONIC,ID=52868,AUDIO-LESS AUDIO 6SP,LESS COVER
PANASONIC,ID=52869
PANASONIC,ID=52870
86120AKNOB, RADIO RECEIVER SWITCH
SINGAPORE & BRUNEI SPEC&AUDIO(OVERSEAS MARKET)-RADIO LESS 4SP&EMV & NAVIGATION SYSTEM-AVN
AUDIO-LESS AUDIO 6SP,LESS COVER
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86221APANEL, RADIO RECEIVER
86221DPANEL, RADIO RECEIVER
9014850007
90153T0001
main90153-T0001
9015950372
10 parts on this diagram · 3 diagrams in section
