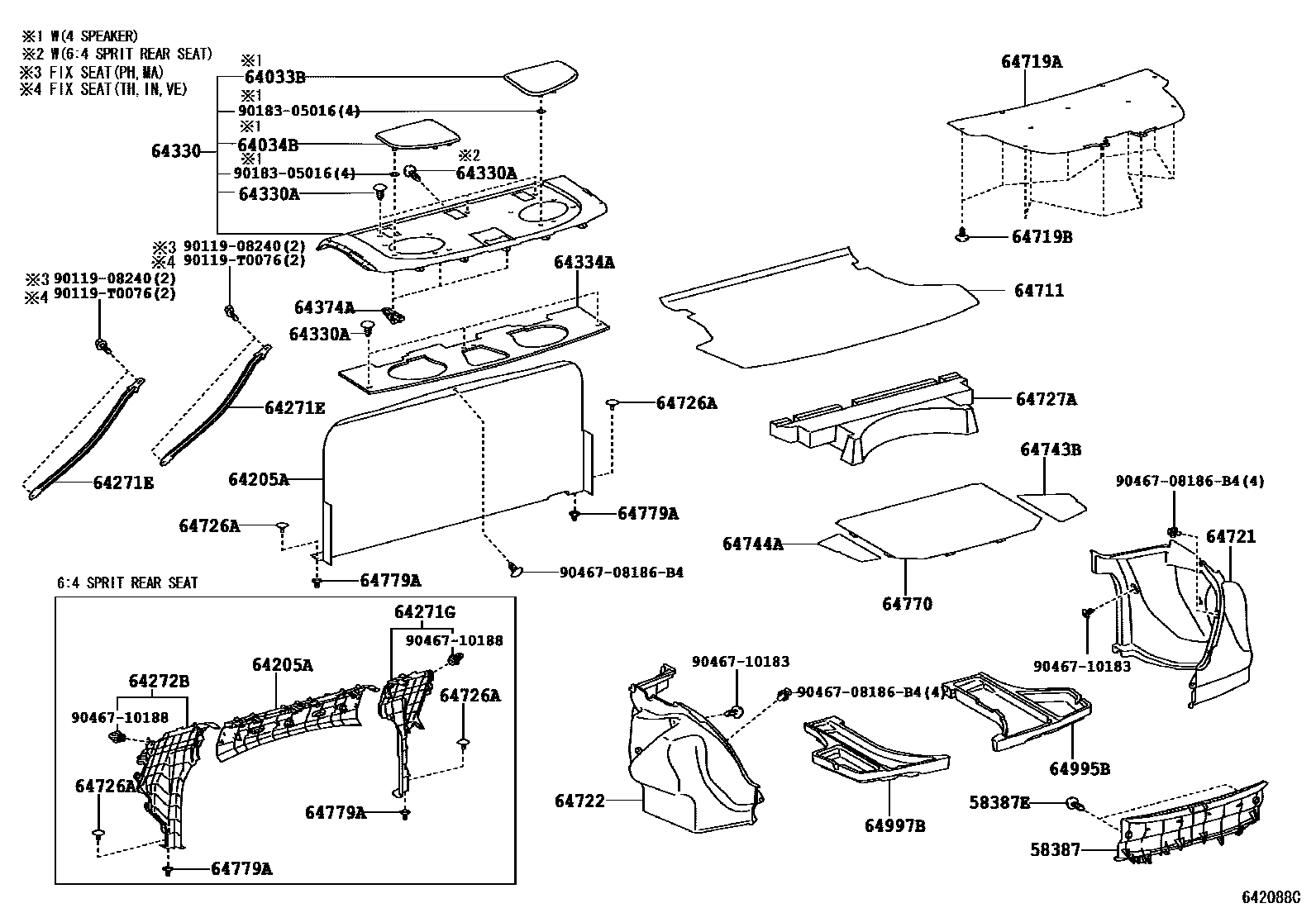

Toyota VIOS — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-0D010iNCP93..IDN,TH200702-201003

main58387-0D010iNCP9#..MA,PH,VN200702-201004

main58387-0D010iNCP9#201003-201403

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-B4iNCP9#200702-201004

DK.GRAY

sub90467-08186¥120

main90467-08186-B4iNCP9#201003-201403

DK.GRAY

sub90467-08186¥120

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-0D020-B0iNCP92;NCP93..MTM..15G..IDN;NCP93..ATM..(15E,15G,15J,E,J,S);NCP93..MTM..(15E,15G,J,LIMO)..(MA,PH,TH,VN)201003-201403

DK.GRAY,TRIM1#

main64383-0D020-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

main64383-52010-B2iNCP93..MTM..15J200702-200806

DK.GRAY,TRIM1#

sub64383-52010¥2,910

main64383-52010-B2iNCP93..ATM..(IDN,MA,PH,TH);NCP93..MTM..(15E,15G)..IDN;NCP9#..MTM..(13E,13J,15E,15G,E,J,LIMO)..(MA,PH,TH,VN)200702-201003

DK.GRAY,TRIM1#

sub64383-52010¥2,910

main64383-52010-E1iNCP93..MTM..15J200702-200806

GREGE,TRIM4#

sub64383-52010¥2,910

main64383-52010-E1iNCP93..MTM..(15E,15G)..IDN;NCP93..MTM..(15E,E,J,LIMO)..(MA,TH,VN);NCP93..ATM..(15E,15G,15J,E,G,J)..(IDN,MA,TH,VN)200702-201003

GREGE,TRIM4#

sub64383-52010¥2,910

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-0D010-B0iNCP92;NCP93..MTM..15G..IDN;NCP93..ATM..(15E,15G,15J,E,J,S);NCP93..MTM..(15E,15G,J,LIMO)..(MA,PH,TH,VN)201003-201403

DK.GRAY,TRIM1#

main64384-0D010-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

main64384-52010-B2iNCP93..MTM..15J200702-200806

DK.GRAY,TRIM1#

sub64384-52010¥2,910

main64384-52010-B2iNCP93..ATM..(IDN,MA,PH,TH);NCP93..MTM..(15E,15G)..IDN;NCP9#..MTM..(13E,13J,15E,15G,E,J,LIMO)..(MA,PH,TH,VN)200702-201003

DK.GRAY,TRIM1#

sub64384-52010¥2,910

main64384-52010-E1iNCP93..MTM..(15E,15G)..IDN;NCP93..MTM..(15E,E,J,LIMO)..(MA,TH,VN);NCP93..ATM..(15E,15G,15J,E,G,J)..(IDN,MA,TH,VN)200702-201003

GREGE,TRIM4#

sub64384-52010¥2,910

main64384-52010-E1iNCP93..MTM..15J200702-200806

GREGE,TRIM4#

sub64384-52010¥2,910

64205ACOVER SUB-ASSY, ROOM PARTITION

main64275-0D020-C0iNCP93..PH;NCP9#..13E,13J,15J,J,LIMO201003-201403

BLACK,TRIM1#

main64275-0D020-C0iNCP93..15E..TH200702-201003

BLACK,TRIM1#,4#

main64275-0D020-C0iNCP93..PH;NCP93..15E..IDN;NCP9#..13E,13J,15J,J,LIMO200702-201004

BLACK,TRIM1#

main64275-0D020-C0iNCP93..15E201003-201304

BLACK,TRIM1#,4#

main64275-0D030iNCP93..(15G,E,G,S)..(IDN,MA,TH,VN)201003-201403

main64275-0D030iNCP93..(15G,15S,E,G,S)..(IDN,MA,TH,VN)200702-201004

64271EPANEL, ROOM PARTITION

main64241-0D010iNCP93..15E,15J,LIMO201003-201403

main64241-0D010iNCP93..RHD..(15E,15J,LIMO)200702-201003

main64241-0D010iNCP93..LIMO..VN200702-201004

main64241-52080iNCP9#..(13E,13J,15G,J)..(MA,PH)¥2,300200708-201004

SEAT COVER MATERIAL-LEATHER

main64241-52080iNCP9#..(13E,13J,15G,J)..(MA,PH)¥2,300201004-201310

64271GBOARD, ROOM PARTITION, RH

main64271-0D020iNCP93..RHD..(15G,15S)200702-201003

main64271-0D020iNCP93..E,G,S200702-201004

main64271-0D020iNCP93..(15G,E,G,S)..(IDN,MA,TH,VN)201003-201403

64272BBOARD, ROOM PARTITION, LH

main64272-0D010iNCP93..RHD..(15G,15S)200702-201003

main64272-0D010iNCP93..E,G,S200702-201004

main64272-0D010iNCP93..(15G,E,G,S)..(IDN,MA,TH,VN)201003-201403

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-0D130-C0iNCP92;NCP93..ATM..(IDN,PH,TH);NCP93..MTM..(15E,15G)..IDN;NCP93..MTM..(15E,15G,LIMO)..(PH,TH,VN)201003-201403

BLACK,TRIM1#

main64330-0D130-C0iNCP93..MTM..(15E,15G)..IDN;NCP93..ATM..(15E,15G,15J,E,G,J)..(IDN,MA,PH,TH);NCP9#..MTM..(13E,13J,15E,15G,E,J,LIMO)..(MA,PH,TH,VN)200702-201004

BLACK,TRIM1#

main64330-0D130-C0iNCP93..MTM..15J200702-200806

BLACK,TRIM1#

main64330-0D130-C0iNCP93..(E,J)..MA201003-201011

BLACK,TRIM1#

main64330-0D130-E0iNCP93..(15E,15G,E,G)..(IDN,TH,VN)201003-201403

GREGE,TRIM4#

main64330-0D130-E0iNCP93..MTM..15J200702-200806

GREGE,TRIM4#

main64330-0D130-E0iNCP93..MTM..(15E,15G,E,J)..(IDN,MA,TH,VN);NCP93..ATM..(15E,15G,15J,E,G,J)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

main64330-0D130-E0iNCP93..G..MA201003-201011

GREGE,TRIM4#

main64330-0D140-C0iNCP93..15S,S200702-201004

BLACK,TRIM1#

main64330-0D140-C0iNCP93..S201004-201011

BLACK,TRIM1#

main64330-0D150-C1iNCP93..LIMO..IDN200702-201003

BLACK,TRIM1#

main64330-0D150-C1iNCP93..RHD..MTM..(15J,LIMO)201003-201304

BLACK,TRIM1#

main64330-0D150-C1iNCP93..RHD..MTM..(15J,LIMO)201003-201304

J-ECO PACKAGE,BLACK,TRIM1#

main64330-0D150-C1iNCP93..ATM..15J200806-201003

BLACK,TRIM1#

main64330-0D150-C1iNCP93..MTM..15J200806-201003

J-ECO PACKAGE,BLACK,TRIM1#

main64330-0D220-C0iNCP93..(E,J)..MA201011-201310

BLACK,TRIM1#

main64330-0D220-E0iNCP93..G..MA201011-201310

GREGE,TRIM4#

main64330-0D230-C0iNCP93..S201011-201310

BLACK,TRIM1#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-B6iNCP93..E..VN;NCP93..RHD..(15G,15S,E,G,S)200702-201004

DK.GRAY,TRIM1#

sub90467-06020¥190

main90467-06020-B6iNCP93..RHD..(15G,E,S)201003-201310

DK.GRAY,TRIM1#

sub90467-06020¥190

main90467-06020-B6iNCP93..PH;NCP9#..13E,13J,15E,15J,J,LIMO201003-201403

DK.GRAY,TRIM1#

sub90467-06020¥190

main90467-06020-E7iNCP93..15E,15J,LIMO200702-201004

GREGE,TRIM4#

sub90467-06020¥190

main90467-06020-E7iNCP93..15E201003-201304

GREGE,TRIM4#

sub90467-06020¥190

main90467-06020-E7iNCP93..E..VN;NCP93..(15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

sub90467-06020¥190

64334APAD, PACKAGE TRAY TRIM

main64334-0D070iNCP93..MTM..15J200806-201003

J-ECO PACKAGE

main64334-0D070iNCP93..LIMO..IDN200702-201003

main64334-0D070iNCP93..RHD..MTM..(15J,LIMO)201003-201304

J-ECO PACKAGE

main64334-0D080iNCP93..S201003-201005

main64334-0D080iNCP92;NCP93..ATM..(IDN,PH,TH,VN);NCP93..MTM..(15E,15G)..IDN;NCP93..MTM..(15E,15G,E,LIMO)..(PH,TH,VN)201003-201403

main64334-0D080iNCP93..MTM..15J200702-200806

main64334-0D080iNCP93..ATM;NCP93..MTM..(15E,15G)..IDN;NCP9#..MTM..(13E,13J,15E,15G,E,J,LIMO)..(MA,PH,TH,VN)200702-201004

main64334-0D090iNCP93..S201006-201310

main64334-0D090iNCP93..(E,G,J)..MA201004-201310

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-0D010iNCP93..RHD..(15E,15J,LIMO)200702-201003

main64374-0D010iNCP9#..(13E,13J,15G,J,LIMO)..(MA,PH,VN)200702-201004

main64374-0D010iNCP93..PH;NCP9#..13E,13J,15E,15J,J,LIMO201003-201403

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-0D060-C0iNCP93..15E201003-201304

BLACK,TRIM1#

main64711-0D060-C0iNCP93..15E201003-201304

BLACK,TRIM1#,4#

main64711-0D060-C0iNCP93..RHD..(15E,15J,LIMO)200702-201003

BLACK,TRIM1#,4#

main64711-0D060-C0iNCP9#..LHD..(13E,13J,15G,LIMO)200708-201004

BLACK,TRIM1#

main64711-0D060-C0iNCP9#..LHD..(13E,13J,15G,LIMO)201003-201005

BLACK,TRIM1#

main64711-0D070-C0iNCP93..J200710-201004

BLACK,TRIM1#

main64711-0D070-C0iNCP93..J201004-201310

BLACK,TRIM1#

main64711-0D080-C0iNCP93..15G..TH200702-201003

BLACK,TRIM1#

main64711-0D080-C0iNCP93..(E,G)..VN201004-201005

BLACK,TRIM4#

main64711-0D080-C0iNCP93..(E,G)..VN201004-201005

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#

main64711-0D080-C0iNCP93..15G..TH200702-201003

BLACK,TRIM1#,4#

main64711-0D080-C0iNCP93..(15G,E,G)..(IDN,VN)200702-201004

BLACK,TRIM4#

main64711-0D080-C0iNCP93..RHD..15G201003-201304

BLACK,TRIM1#,4#

main64711-0D100-C0iNCP93..(E,S)..MA201004-201310

BLACK,TRIM4#

main64711-0D100-C0iNCP93..(E,G,S)..MA200710-201004

BLACK,TRIM1#,4#

main64711-0D100-C0iNCP93..G..MA201004-201310

BLACK,TRIM1#

main64711-0D120-C0iNCP9#..LHD..(13E,13J,15G,LIMO)201006-201403

BLACK,TRIM1#

main64711-0D130-C0iNCP93..(E,G)..VN201006-201403

BLACK,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-0D030-C0iNCP93..(15G,G)..(IDN,VN)200702-201004

BLACK,TRIM1#

main64719-0D030-C0iNCP93..RHD..15G201003-201304

BLACK,TRIM1#,4#

main64719-0D030-C0iNCP93..PH201004-201307

BLACK,TRIM1#

main64719-0D030-C0iNCP93..(15G,G)..(IDN,VN)200702-201004

BLACK,TRIM4#

main64719-0D030-C0iNCP93..15G..TH200702-201003

BLACK,TRIM1#,4#

main64719-0D030-C0iNCP93..G..VN201004-201403

BLACK,TRIM4#

main64719-0D040-C0iNCP93..G..MA201004-201310

BLACK,TRIM4#

main64719-0D040-C0iNCP93..(E,S)..MA201004-201310

BLACK,TRIM1#

main64719-0D040-C0iNCP93..G..MA200710-201004

BLACK,TRIM4#

main64719-0D040-C0iNCP93..G..MA200710-201004

BLACK,TRIM1#

main64719-0D040-C0iNCP93..E..MA200804-201004

BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-B4iNCP93..E..MA200804-201004

DK.GRAY

sub90467-08186¥120

main90467-08186-B4iNCP93..15G,15S,G,S200702-201004

DK.GRAY

sub90467-08186¥120

main90467-08186-B4iNCP93..MTM..15G;NCP93..ATM..(15G,E,G,S)201003-201403

DK.GRAY

sub90467-08186¥120

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-0D040-C0iNCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN)200702-201004

BLACK,TRIM1#

main64721-0D040-C0iNCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN)200702-201004

BLACK,TRIM1#,4#

main64721-0D040-C0iNCP93..G..VN200709-201004

BLACK,TRIM4#

main64721-0D040-C0iNCP93..RHD..(15E,15G)201003-201304

BLACK,TRIM1#,4#

main64721-0D040-C0iNCP93..(E,G)..VN201004-201403

BLACK,TRIM4#

main64721-0D040-C0iNCP93..PH;NCP9#..13E,13J,15J,LIMO201003-201403

BLACK,TRIM1#

main64721-0D050-C0iNCP93..G..MA201004-201310

BLACK,TRIM1#

main64721-0D050-C0iNCP93..(E,J,S)..MA201004-201310

BLACK,TRIM4#

main64721-0D050-C0iNCP93..MA200710-201004

BLACK,TRIM1#,4#

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-0D040-C0iNCP93..(15E,15G,15J,E,LIMO)..(IDN,TH,VN)200702-201004

BLACK,TRIM1#,4#

main64722-0D040-C0iNCP93..PH;NCP9#..13E,13J,15S200702-201004

BLACK,TRIM1#

main64722-0D040-C0iNCP93..G..VN200709-201004

BLACK,TRIM4#

main64722-0D040-C0iNCP93..RHD..(15E,15G)201003-201304

BLACK,TRIM1#,4#

main64722-0D040-C0iNCP93..PH;NCP9#..13E,13J,15J,LIMO201003-201403

BLACK,TRIM1#

main64722-0D040-C0iNCP93..(E,G)..VN201004-201403

BLACK,TRIM4#

main64722-0D050-C0iNCP93..(E,J,S)..MA201004-201310

BLACK,TRIM4#

main64722-0D050-C0iNCP93..(E,J,S)..MA201004-201310

BLACK,TRIM1#

main64722-0D050-C0iNCP93..MA200710-201004

BLACK,TRIM1#,4#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-B1iNCP9#200702-201004

DK.GRAY

main64726-26010-B1iNCP9#201003-201403

DK.GRAY

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-0D010iNCP93..PH;NCP9#..13E,13J,15E,15J,LIMO201003-201403

main64727-0D010iNCP93..RHD..(15E,15J,LIMO)200702-201003

main64727-0D010iNCP93..J200702-200906

main64727-0D010iNCP9#..LHD..(13E,13J,15G,LIMO)200702-201004

main64727-0D020iNCP93..(E,G,S)..MA200702-200906

main64727-0D020iNCP93..RHD..(15G,15S)200702-201003

main64727-0D020iNCP93..(E,G)..VN200702-201004

main64727-0D020iNCP93..(15G,E,G)..(IDN,TH,VN)201003-201403

main64727-0D050iNCP93..J201004-201310

main64727-0D050iNCP93..J200907-201004

main64727-0D060iNCP93..(E,G,S)..MA201004-201310

main64727-0D060iNCP93..(E,G,S)..MA200907-201004

64743BDOOR, DECK SIDE BOX, RH

main64743-0D010iNCP93..IDN,TH201003-201304

main64743-0D010iNCP93..IDN,TH200702-201003

main64743-52010iNCP9#..MA,PH,VN¥1,940200708-201004

main64743-52010iNCP9#..MA,PH,VN¥1,940201004-201403

64744ADOOR, DECK SIDE BOX, LH

main64744-0D010iNCP93..IDN,TH201003-201304

main64744-0D010iNCP93..IDN,TH200702-201003

main64744-52010iNCP9#..MA,PH,VN¥1,940200708-201004

main64744-52010iNCP9#..MA,PH,VN¥1,940201004-201403

64770COVER ASSY, SPARE WHEEL

main64770-0D120iNCP93..IDN,TH,VN201003-201403

main64770-0D120iNCP93..IDN,TH200702-201003

main64770-0D120iNCP93..VN200702-201004

main64770-0D130iNCP9#..MA,PH201004-201310

main64770-0D130iNCP9#..MA,PH200708-201004

64779ASTOPPER, SPARE WHEEL COVER

main64779-52020iNCP9#¥200201003-201403

main64779-52020iNCP93..IDN,TH¥200200702-201003

main64779-52020iNCP9#..MA,PH,VN¥200200702-201004

64995BBOX, DECK FLOOR, RH

main64995-0D030iNCP93..IDN,TH200702-201003

main64995-0D030iNCP9#..LHD200702-201004

main64995-0D030iNCP9#..IDN,PH,TH,VN201003-201403

main64995-0D040iNCP93..MA200710-201004

main64995-0D040iNCP93..MA201004-201310

64997BBOX, DECK FLOOR, LH

main64997-0D030iNCP93..IDN,TH200702-201003

main64997-0D030iNCP9#..LHD200702-201004

main64997-0D030iNCP9#..IDN,PH,TH,VN201003-201403

main64997-0D040iNCP93..MA200710-201004

main64997-0D040iNCP93..MA201004-201310

9011908240

main90119-08240¥230

90119T0076

main90119-T0076

9018305016

main90183-05016¥80

9046708186B4

main90467-08186B4

9046710183

main90467-10183¥110

9046710188

main90467-10188¥80

31 parts on this diagram · 1 diagram in section
