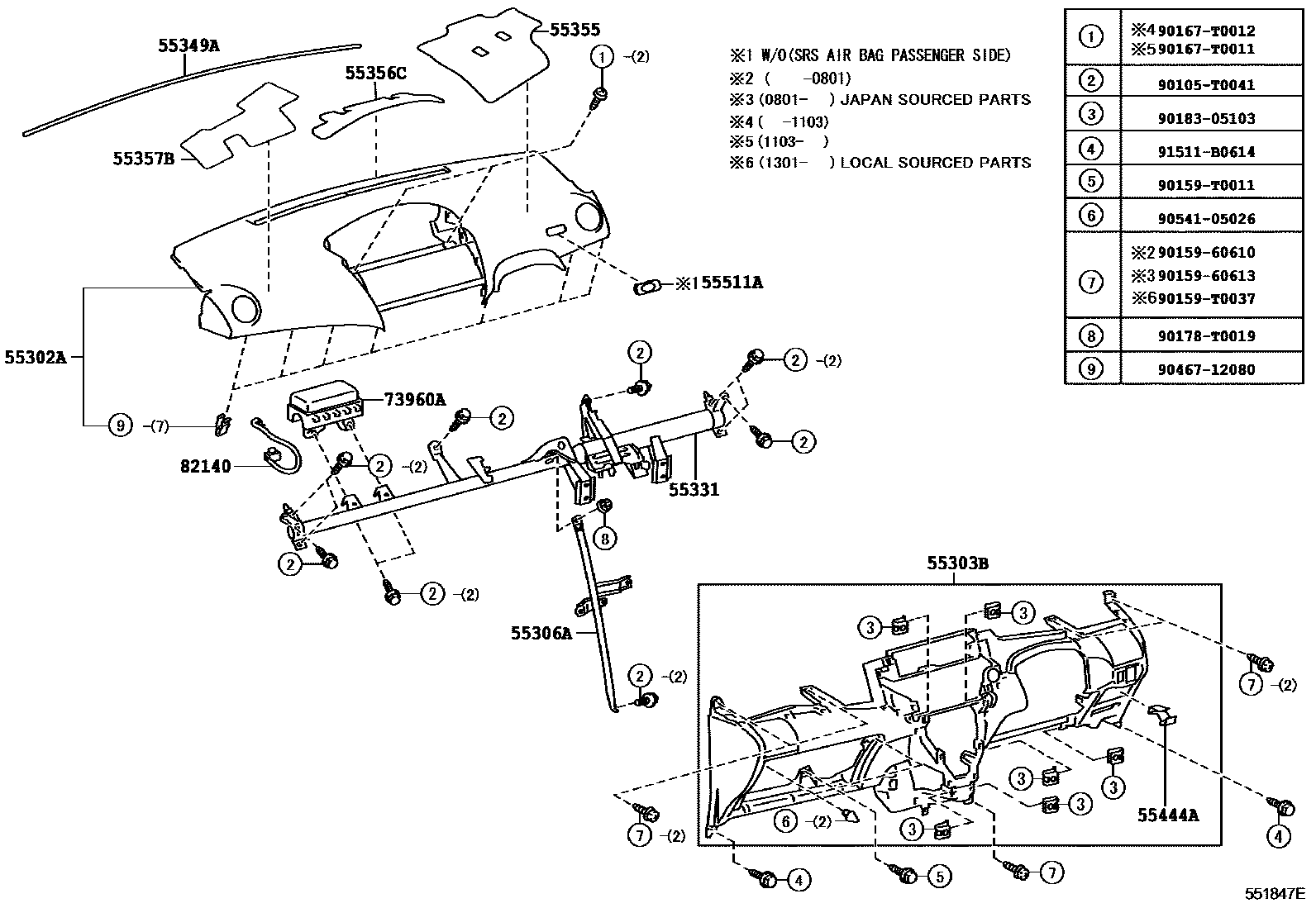

Toyota VIOS — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D070-B0iNCP93..15S200702-201310

DK.GRAY,TRIM1#

main55302-0D070-B0iNCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,G,S)200702-201004

DK.GRAY,TRIM1#,4#

main55302-0D070-B0iNCP93..MTM..15E..TH200702-201003

SINGAPORE & BRUNEI SPEC,DK.GRAY,TRIM1#,4#

main55302-0D070-E0iNCP93..MTM..15E201003-201310

ASH BROWN,TRIM4#

main55302-0D080-B0iNCP93..ATM..15E200705-201209

DK.GRAY,TRIM1#

main55302-0D080-B0iNCP93..MTM..15E;NCP93..RHD..(15J,LIMO)201003-201209

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

main55302-0D080-B0iNCP93..MTM..15E;NCP93..RHD..(15J,E,J)200702-201004

DK.GRAY,TRIM1#,4#

main55302-0D080-E0iNCP93..ATM..15E201003-201209

SRS AIR BAG-WITHOUT,ASH BROWN,TRIM4#

main55302-0D080-E0iNCP93..ATM..15E201003-201209

ASH BROWN,TRIM4#

main55302-0D090-B0iNCP93..E..VN200709-201004

DK.GRAY,TRIM1#,4#

main55302-0D090-B0iNCP93..PH200708-201403

DK.GRAY,TRIM1#

main55302-0D090-B0iNCP93..E..VN200709-201004

DK.GRAY,TRIM4#

main55302-0D090-E0iNCP93..(E,G)..VN201004-201403

ASH BROWN,TRIM4#

main55302-0D100-B0iNCP9#..LHD..(13E,13J,LIMO)200708-201209

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D100-B0iNCP93..RHD200702-201310

DK.GRAY,TRIM1#

main55303-0D100-E0iNCP93..RHD..(15E,15G,15J,E,G,J,LIMO,S)200702-201310

GREGE,TRIM4#

main55303-0D110-B0iNCP9#..LHD..(13E,13J,15G,E,LIMO)200708-201403

DK.GRAY,TRIM1#

main55303-0D110-E0iNCP93..(E,G)..VN200709-201403

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D130iNCP93..RHD200702-201310

main55306-52160iNCP9#..LHD¥2,240200708-201403

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D260iNCP93..MTM..15E;NCP93..RHD..(15J,LIMO)200702-201310

main55330-0D260iNCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

SINGAPORE & BRUNEI SPEC

main55330-0D270iNCP93..ATM..15E200702-201209

SRS AIR BAG-WITHOUT

main55330-0D270iNCP93..(E,J)..MA200702-201206

main55330-0D300iNCP93..LHD..(15G,E,G)200708-201403

main55330-0D310iNCP9#..LHD..(13E,13J,LIMO)200708-201209

55349ACUSHION, INSTRUMENT PANEL

main55349-0D070iNCP93..IDN,TH200702-201403

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D070iNCP9#..(13E,15G,E,G,S)..(MA,PH,VN)200702-201403

main55355-0D070iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J,E,G,S)201003-201212

J-ECO PACKAGE

main55355-0D210iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J,E,G,S)201212-201310

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-0D080iNCP9#..(13E,15G,E,G,S)..(MA,PH,VN)200702-201403

main55356-0D080iNCP93..ATM..15J201003-201212

J-ECO PACKAGE

main55356-0D180iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J,E,G,S)201212-201310

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-0D100iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J,E,G,S)201003-201212

J-ECO PACKAGE

main55357-0D100iNCP93..RHD..(15E,15G,15S)200702-201403

main55357-0D220iNCP93..RHD..MTM..(15E,15G);NCP93..RHD..ATM..(15E,15G,15J,E,G,S)201212-201310

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52260iNCP9#¥220200702-201403

55511APLATE, INSTRUMENT PANEL, NAME

main55511-0D050-B0iNCP93..ATM..15E200708-201209

DK.GRAY,TRIM1#

sub55511-0D050

main55511-0D050-B0iNCP93..LIMO200702-201004

DK.GRAY,TRIM1#,4#

sub55511-0D050

main55511-0D050-B0iNCP93..MTM..15E;NCP9#..13E,13J,15J201003-201209

SRS AIR BAG-WITHOUT,DK.GRAY,TRIM1#

sub55511-0D050

main55511-0D050-E0iNCP93..MTM..15E201003-201209

ASH BROWN,TRIM4#

sub55511-0D050

main55511-0D050-E0iNCP93..MTM..15E201003-201209

SRS AIR BAG-WITHOUT,ASH BROWN,TRIM4#

sub55511-0D050

main55511-0D060-B0iNCP93..LIMO200705-201209

DK.GRAY,TRIM1#

sub55511-0D050

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D050iNCP93..MTM..15E..TH200702-201209

SINGAPORE & BRUNEI SPEC

sub73960-0D330

sub82140-52150¥870

main73960-0D050iNCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

SRS AIR BAG-WITH(DRIVER)

sub73960-0D330

sub82140-52150¥870

main73960-0D050iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201209

sub73960-0D330

sub82140-52150¥870

main73960-0D050iNCP93..MTM..(15G,E);NCP93..ATM..(15E,15G,G)..(IDN,PH,TH,VN)201003-201403

SRS AIR BAG-WITHOUT

sub73960-0D330

sub82140-52150¥870

main73960-0D070iNCP93..MA201209-201310

sub73960-52320¥120,000

sub82140-52150¥870

82140WIRE ASSY, INSTRUMENT PANEL

main82140-0D020iNCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

SINGAPORE & BRUNEI SPEC

main82140-0D020iNCP93..MTM..15G..IDN;NCP93..RHD..ATM..(15E,15G,15S)200702-201003

SRS AIR BAG-WITH(DRIVER)

main82140-0D020iNCP93..E..VN;NCP93..(15G,G,S)..(MA,PH,VN)200702-201403

main82140-0D020iNCP93..MTM..(15G,E);NCP93..ATM..(15E,15G,E,G,S)201003-201403

SRS AIR BAG-WITHOUT

90105T0041

main90105-T0041

9015960610

main90159-60610¥70

9015960613

main90159-60613¥60

90159T0011

main90159-T0011

90159T0037

main90159-T0037

90167T0011

main90167-T0011¥60

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103¥90

9046712080

main90467-12080¥60

9054105026

main90541-05026¥100

91511B0614

main91511-B0614¥90

24 parts on this diagram · 8 diagrams in section
