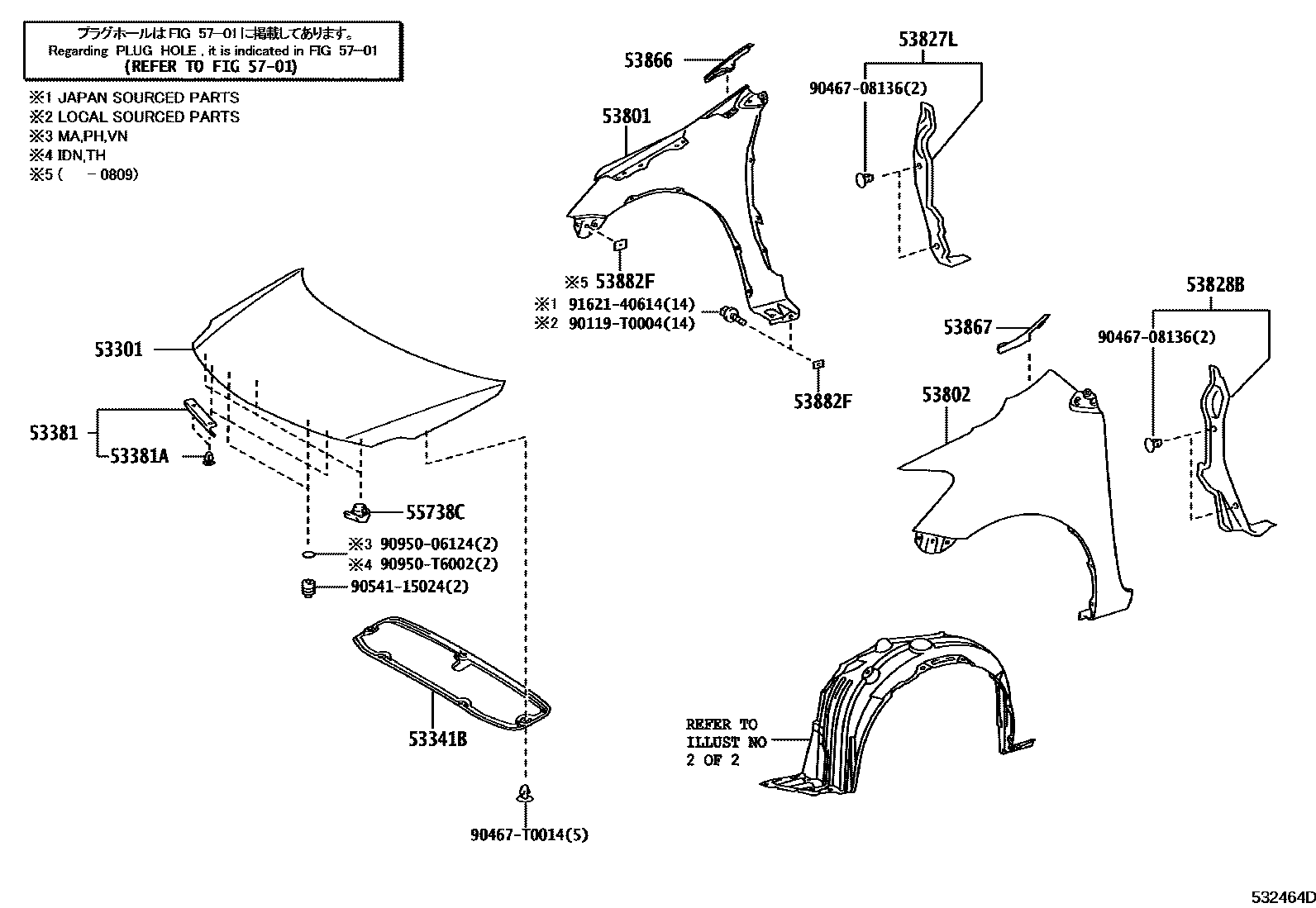

Toyota VIOS — HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0D100iNCP9#..IDN,PH,TH,VN200702-201401

main53301-0D110iNCP93..MA200710-201310

sub53301-0D100

53341BINSULATOR, HOOD

main53341-0D090iNCP93..RHD..(15G,15S)200702-201403

main53341-0D090iNCP93..MTM..15E..TH;NCP93..ATM..(IDN,TH);NCP93..MTM..15G..IDN201003-201206

J-ECO PACKAGE

main53341-0D130iNCP93..(G,S)..MA201008-201310

main53341-0D240iNCP93..ATM..15J201206-201304

J-ECO PACKAGE

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0D060iNCP93..IDN,TH200702-201403

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08063iNCP93..IDN,TH¥160200702-201403

53801FENDER SUB-ASSY, FRONT RH

main53811-0D090iNCP93..E..MA200710-201310

sub53811-52240¥25,300

main53811-0D100iNCP93..(E,G,S)..MA200710-201310

sub53811-52230¥25,200

main53811-52230iNCP93..15E..IDN;NCP93..(15G,E,G)..(IDN,PH,TH,VN)¥25,200200702-201403

main53811-52240iNCP9#..13E,13J,15J,LIMO¥25,300200702-201403

53802FENDER SUB-ASSY, FRONT LH

main53812-0D090iNCP93..E..MA200710-201310

sub53812-52240¥25,300

main53812-0D100iNCP93..(E,G,S)..MA200710-201310

sub53812-52230¥25,200

main53812-52230iNCP93..15E..IDN;NCP93..(15G,E,G)..(IDN,PH,TH,VN)¥25,200200702-201403

main53812-52240iNCP93..15E..TH¥25,300200702-201403

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D040iNCP93..RHD..(15G,15S)200702-201403

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D040iNCP93..RHD..(15G,15S)200702-201403

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D050iNCP93..IDN,TH200702-201403

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D050iNCP93..IDN,TH200702-201403

53882FSEAL, FRONT FENDER

main53882-0D010iNCP9#¥60200702-201403

55738CSTOPPER, HOOD, RH

main55738-0D040iNCP93..IDN,TH200702-201110

main55738-0D060iNCP93..IDN,TH201112-201304

(L)

main55738-0D060iNCP93..IDN,TH201111-201112

main55738-52050iNCP93..IDN,TH¥280201112-201304

(J)

main55738-52050iNCP9#..MA,PH,VN¥280200708-201403

5701

90119T0004

main90119-T0004

9046708136

main90467-08136¥90

90467T0014

main90467-T0014

9054115024

main90541-15024¥200

9095006124

main90950-06124¥90

90950T6002

main90950-T6002

9162140614

main91621-40614¥80

20 parts on this diagram · 2 diagrams in section
