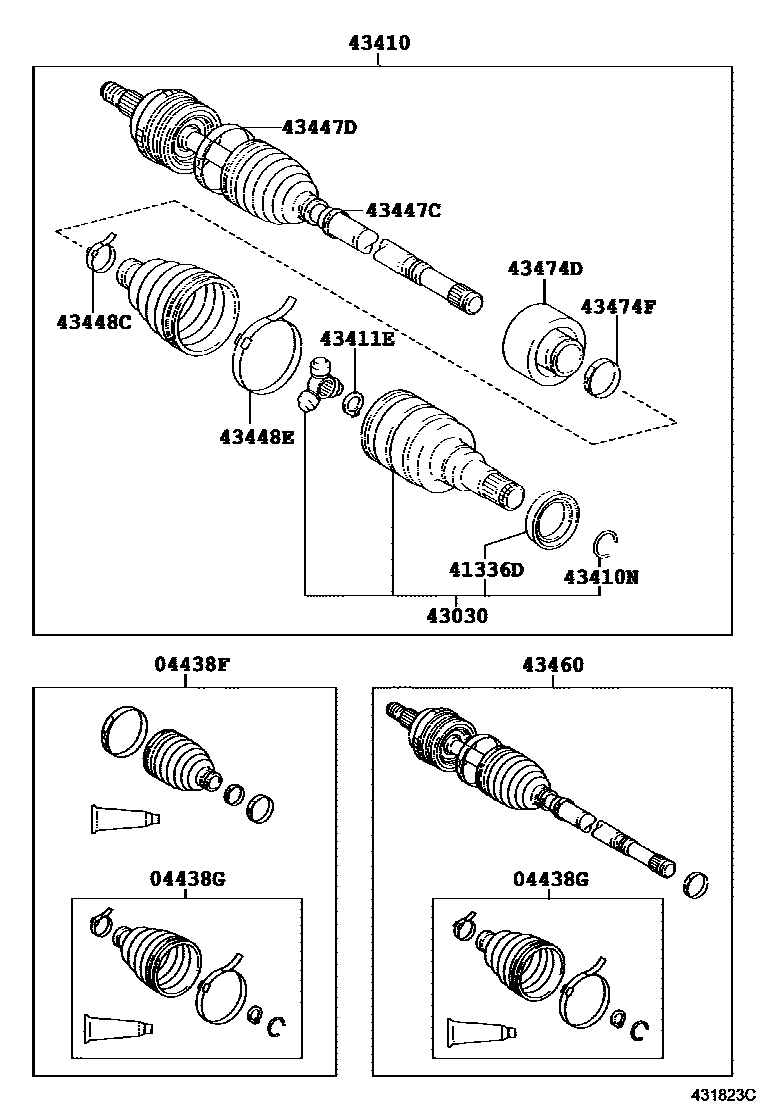

Toyota VIOS — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0D150iNCP9#200702-200801

sub04427-0D151

main04427-0D151iNCP9#200801-200910

sub04427-52890¥10,800

main04427-52890iNCP9#¥10,800200911-201002

sub04427-52891¥9,000

main04427-52891iNCP9#..MA,PH,VN¥9,000201003-201004

sub04427-52897¥9,000

main04427-52891iNCP9#¥9,000201003-201403

sub04427-52897¥9,000

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-52190iNCP9#¥6,700200702-200910

sub04437-52191¥5,500

main04437-52191iNCP9#¥5,500200911-201004

main04437-52191iNCP9#¥5,500201003-201403

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0D070iNCP93..IDN,TH201003-201111

(L)

main41336-0D070iNCP93..IDN,TH200809-201003

(L)

main41336-0D070iNCP9#..MA,PH,VN201003-201403

(L)

main41336-0D070iNCP9#..MA,PH,VN200809-201004

(L)

main41336-0D070iNCP93..IDN,TH201111-201304

main41336-12010iNCP93..IDN,TH¥130200809-201003

(J)

main41336-12010iNCP9#¥130200702-200809

main41336-12010iNCP9#..MA,PH,VN¥130200809-201004

(J)

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-0A011iNCP93..IDN,TH200702-201003

sub43403-10011¥19,500

main43403-0A011iNCP9#..MA,PH,VN200702-201004

sub43403-10011¥19,500

main43403-0A011iNCP9#201003-201403

sub43403-10011¥19,500

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0D280iNCP93..IDN,TH200702-201003

sub43410-52211¥52,100

main43410-0D280iNCP9#..MA,PH,VN200702-201004

sub43410-52211¥52,100

main43410-0D280iNCP9#201003-201403

sub43410-52211¥52,100

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNCP93..IDN,TH¥100200702-201003

main90521-26004iNCP9#..MA,PH,VN¥100200702-201004

main90521-26004iNCP9#¥100201003-201403

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCP93..IDN,TH¥110200702-201003

sub90520-22029¥90

main90520-22001iNCP9#..MA,PH,VN¥110200702-201004

sub90520-22029¥90

main90520-22001iNCP9#¥110201003-201403

sub90520-22029¥90

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52260iNCP93..IDN,TH¥220200702-201003

main42345-52260iNCP9#..MA,PH,VN¥220200702-201004

main42345-52260iNCP9#¥220201003-201403

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52250iNCP93..IDN,TH¥330200702-201003

main42345-52250iNCP9#..MA,PH,VN¥330200702-201004

main42345-52250iNCP9#¥330201003-201403

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCP93..IDN,TH¥80200702-201003

main90949-01078iNCP9#..MA,PH,VN¥80200702-201004

main90949-01078iNCP9#¥80201003-201403

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNCP93..IDN,TH¥350200702-201003

main90949-01146iNCP9#..MA,PH,VN¥350200702-201004

main90949-01146iNCP9#¥350201003-201403

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09R40iNCP9#200702-200909

sub43460-09R41

main43460-09R41iNCP93..IDN,TH200909-201003

sub43460-59669¥37,800

main43460-09R41iNCP9#..MA,PH,VN200909-201004

sub43460-59669¥37,800

main43460-09R41iNCP9#201003-201403

sub43460-59669¥37,800

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0W050iNCP93..IDN,TH¥5,200200702-201003

main43474-0W050iNCP9#..MA,PH,VN¥5,200200702-201004

main43474-0W050iNCP9#¥5,200201003-201403

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iNCP93..IDN,TH¥700200702-201003

main42345-14010iNCP9#..MA,PH,VN¥700200702-201004

main42345-14010iNCP9#¥700201003-201403

14 parts on this diagram · 2 diagrams in section
