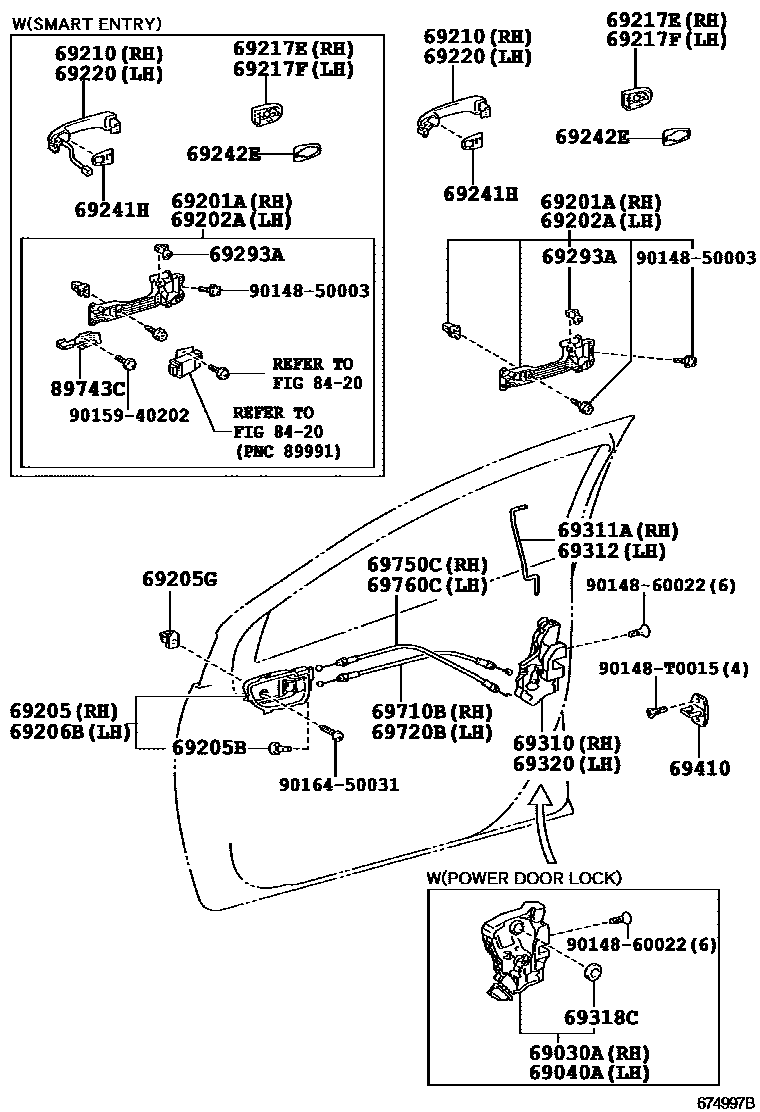

Toyota VIOS — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
G-LIMITED&WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
SINGAPORE & BRUNEI SPEC
SINGAPORE & BRUNEI SPEC&WIRELESS DOOR LOCK-WITHOUT
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
*299
*300
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
*299
*300
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM1#,*299
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM4#
ASH BROWN,TRIM4#
ASH BROWN,TRIM4#,*299
DK.GRAY,TRIM1#,*300
ASH BROWN,TRIM4#,*300
ASH BROWN,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69205GGROMMET(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
DK.GRAY,TRIM4#
DK.GRAY,TRIM1#,*299
ASH BROWN,TRIM4#
ASH BROWN,TRIM4#,*299
DK.GRAY,TRIM1#,*300
ASH BROWN,TRIM4#,*300
ASH BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.,*299
main69210-06905iNCP93..MTM..(15E,15G)..IDN;NCP9#..(13E,15E,15G,15J,15S,E,G,J,S)..(MA,PH,TH,VN)200702-201004
PAINT REQ.
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SUPER WHITE 2,040
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),MEDIUM SILVERME.,1F8
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),GRAY ME.,1G3
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),SILVER ME.,1D4
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BLACK MC.,209
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),ATTITUDE BLACK MC.,218
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BEIGE ME.,4R0
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),LT.BLUE M.M.,8S7
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),BLACKISH REDMC.,3R0
NO PAINT REQ.
NO PAINT REQ.,*299
PAINT REQ.,*300
NO PAINT REQ.,*300
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
LESS COLOR
LESS COLOR,*299
BLACK MATERIAL
BLACK MATERIAL,WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
BLACK MATERIAL,WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)
BLACK MATERIAL,*300
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK
LESS COLOR,*299
LESS COLOR
LESS COLOR,WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
sub69217-0D913
LESS COLOR,WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START)
sub69217-0D913
LESS COLOR,*299
LESS COLOR,WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),*299
BLACK MATERIAL,*300
LESS COLOR,WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),*300
LESS COLOR,*300
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PAINT REQ.
PAINT REQ.,*299
NO PAINT REQ.
NO PAINT REQ.,*299
PAINT REQ.,*300
NO PAINT REQ.,*300
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
(L)
(J)
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
(L)
(J)
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START),RH
RH
WIRELESS DOOR LOCK-SMART KEY:FRONT(D) & BACK W(PUSH START),RH
*300,RH
*300,LH
RH
*299,RH
*299,LH
LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
G-LIMITED
G-LIMITED&WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)
9014850003
9014860022
90148T0015
main90148-T0015
9015940202
9016450031
32 parts on this diagram · 1 diagram in section
