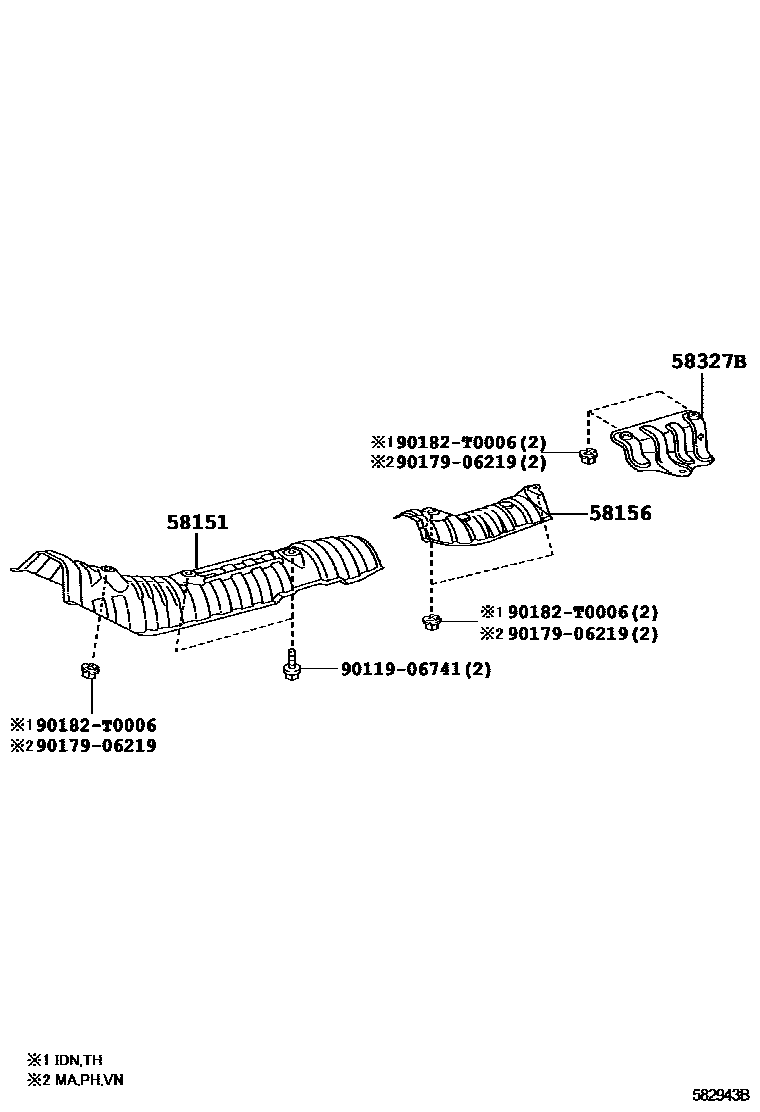

Toyota VIOS — FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0D030iNCP93..IDN,TH200702-200911

sub58151-0D031

main58151-0D031iNCP93..IDN,TH200912-201003

main58151-0D031iNCP93..IDN,TH201003-201304

main58151-52060iNCP9#..MA,PH,VN¥6,000200708-200911

sub58151-52090¥6,000

main58151-52090iNCP9#..MA,PH,VN¥6,000200912-201004

main58151-52090iNCP9#..MA,PH,VN¥6,000201004-201403

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-52020iNCP93..IDN,TH¥1,070200702-201003

main58156-52020iNCP9#..MA,PH,VN¥1,070200702-201004

main58156-52020iNCP9#¥1,070201003-201403

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0D080iNCP9#200702-200911

sub58327-0D081

main58327-0D081iNCP93..IDN,TH200912-201003

main58327-0D081iNCP9#..MA,PH,VN200912-201004

main58327-0D081iNCP9#201003-201403

9011906741

main90119-06741¥80

9017906219

main90179-06219¥70

90182T0006

main90182-T0006

6 parts on this diagram · 1 diagram in section
