Toyota VIOS — EXHAUST PIPE

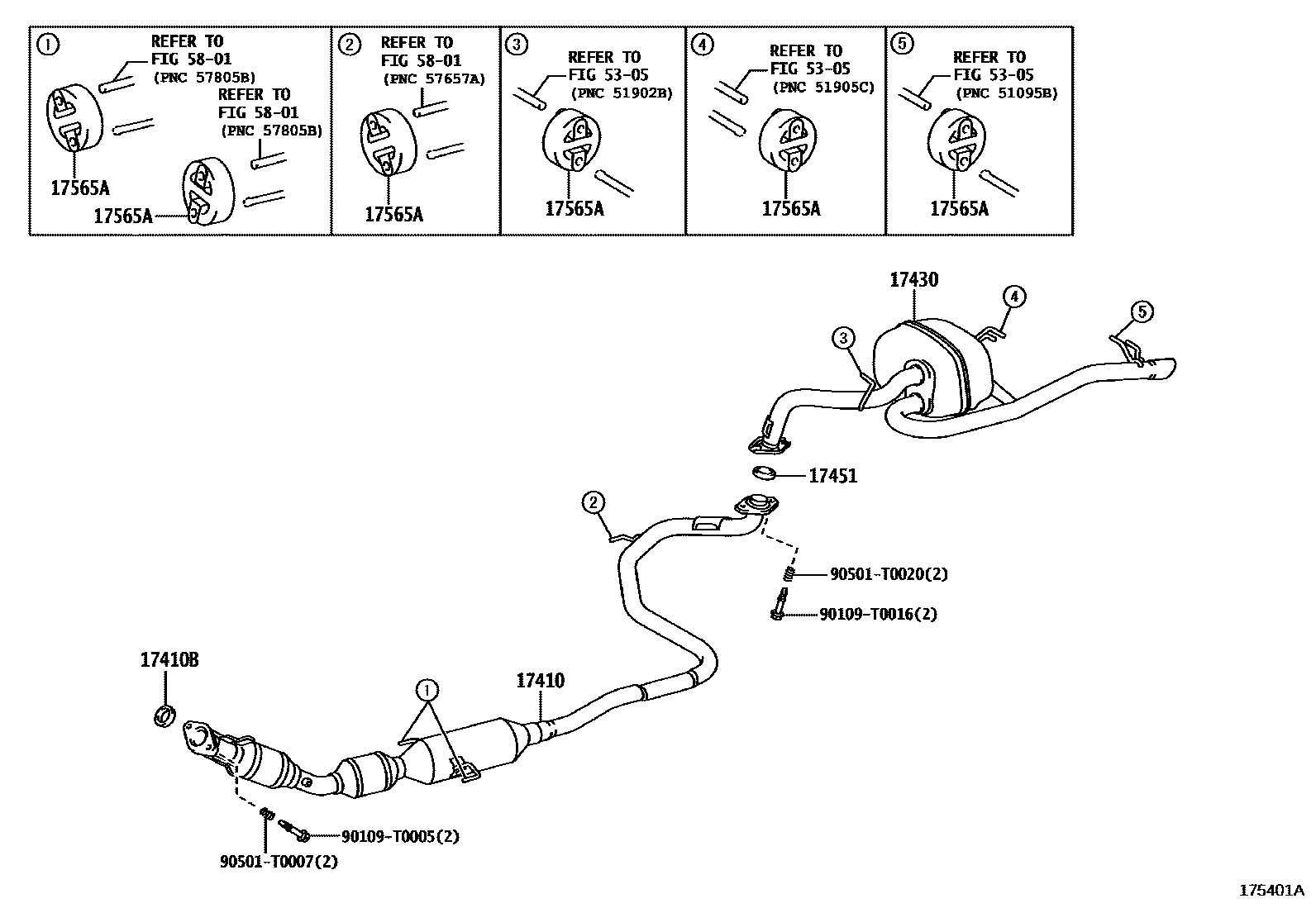

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17410-0M060i201003-201304

main17410-0M060i200702-201003

main17410-0M100i201004-201310

main17410-0M100i200710-201004

main17410-0M110i201004-201307

main17410-0M110i200708-201004

main17410-0M120i200709-201004

main17410-0M120i201004-201403

17410BGASKET, EXHAUST PIPE

main17451-0M020i200702-201003

main17451-0M020i200702-201004

main17451-0M020i201003-201403

17430PIPE ASSY, EXHAUST, TAIL

main17430-0M060i200702-200910

main17430-0M061i200911-201003

main17430-0M061i201003-201304

main17430-0M070i200710-200910

main17430-0M071i200911-201004

main17430-0M071i201004-201310

main17430-0M080i200708-200910

main17430-0M081i201004-201307

main17430-0M081i200911-201004

main17430-0M090i200709-200911

main17430-0M091i201004-201403

main17430-0M091i200912-201004

17451GASKET, EXHAUST PIPE

main17451-0M030i200702-200712

main17451-0M031i201003-201105

main17451-0M031i200801-201003

main17451-0M031i200801-201004

main17451-0M032i201106-201403

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M020i200702-201003

main17565-0M020i200702-201004

main17565-0M020i201003-201403

5305

5801

90109T0005

main90109-T0005¥190

90109T0016

main90109-T0016

90501T0007

main90501-T0007¥200

90501T0020

main90501-T0020

11 parts on this diagram · 1 diagram in section
