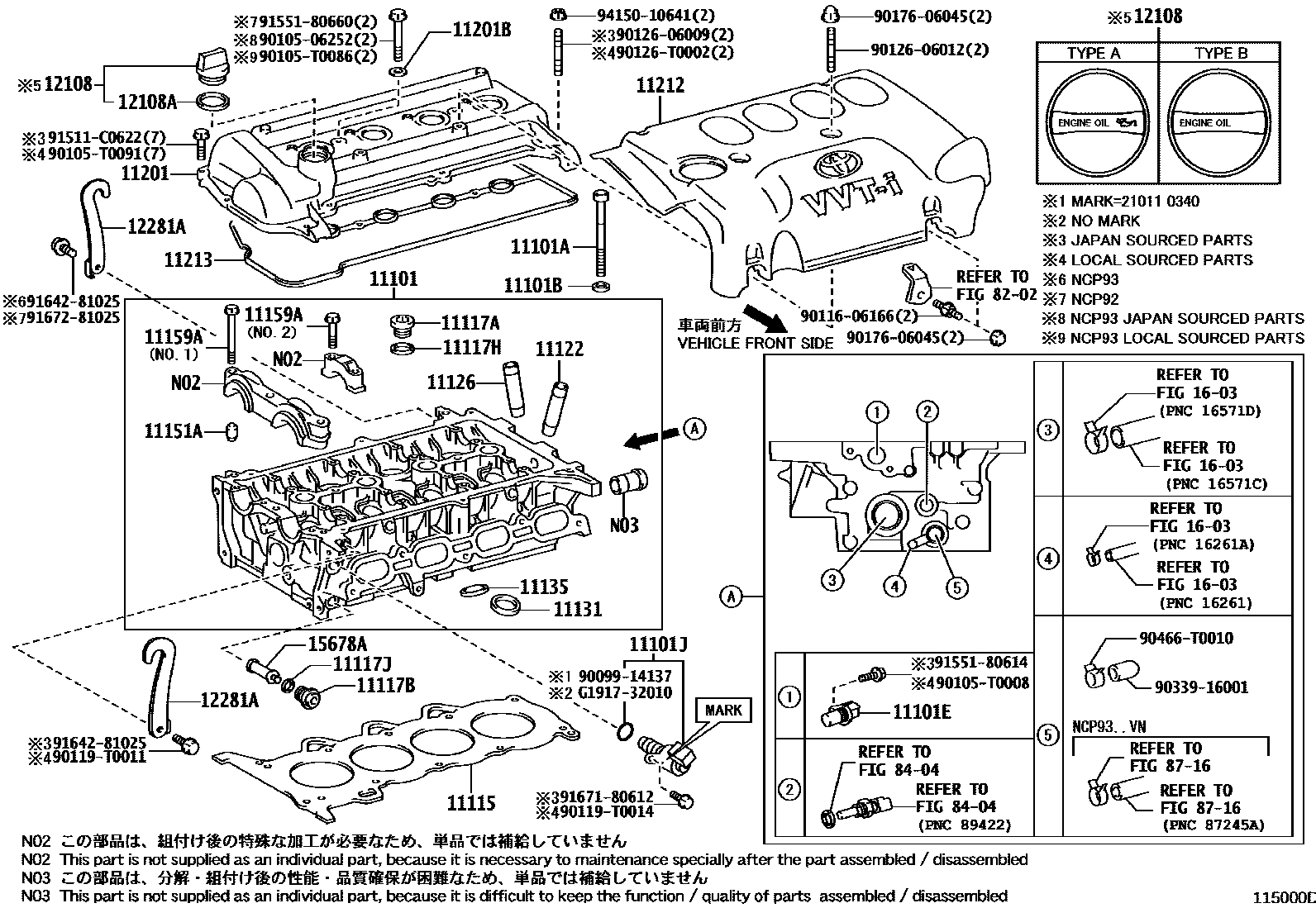

Toyota VIOS — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
(J)
(L)
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
main11135-21040i1NZFE..NCP93..LIMO..VN;1NZFE,2NZFE..NCP9#..13E,13J,15E,15G,15J,E,G,J,S¥860200702-201403
STD
STD
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=14,OD=6
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.2
NO.2:REFER ILLUST.
NO.1
NO.1:REFER ILLUST.
11201COVER SUB-ASSY, CYLINDER HEAD
(L)
(J)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
12108CAP SUB-ASSY, OIL FILLER
(L),T/P A:REF.ILLUST
(L)
(J)
(J),T/P A:REF.ILLUST
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12108AGASKET(FOR OIL FILLER CAP)
(L)
(L),PNC 12108=TYPE A
PNC 12108=TYPE B
PNC 12108=TYPE A
(J)
(J),PNC 12108=TYPE A
12281AHANGER, ENGINE, NO.1
(L)
(J)
15678AFILTER, OIL CONTROL VALVE
(L)
(J)
1603
8202
8404
8716
9009914137
9010506252
90105T0008
main90105-T0008
90105T0086
main90105-T0086
90105T0091
main90105-T0091
9011606166
90119T0011
main90119-T0011
90119T0014
main90119-T0014
9012606009
9012606012
90126T0002
main90126-T0002
9017606045
9033916001
90466T0010
main90466-T0010
91511C0622
9155180614
9155180660
9164281025
9167180612
9167281025
9415010641
G191732010
50 parts on this diagram · 1 diagram in section
