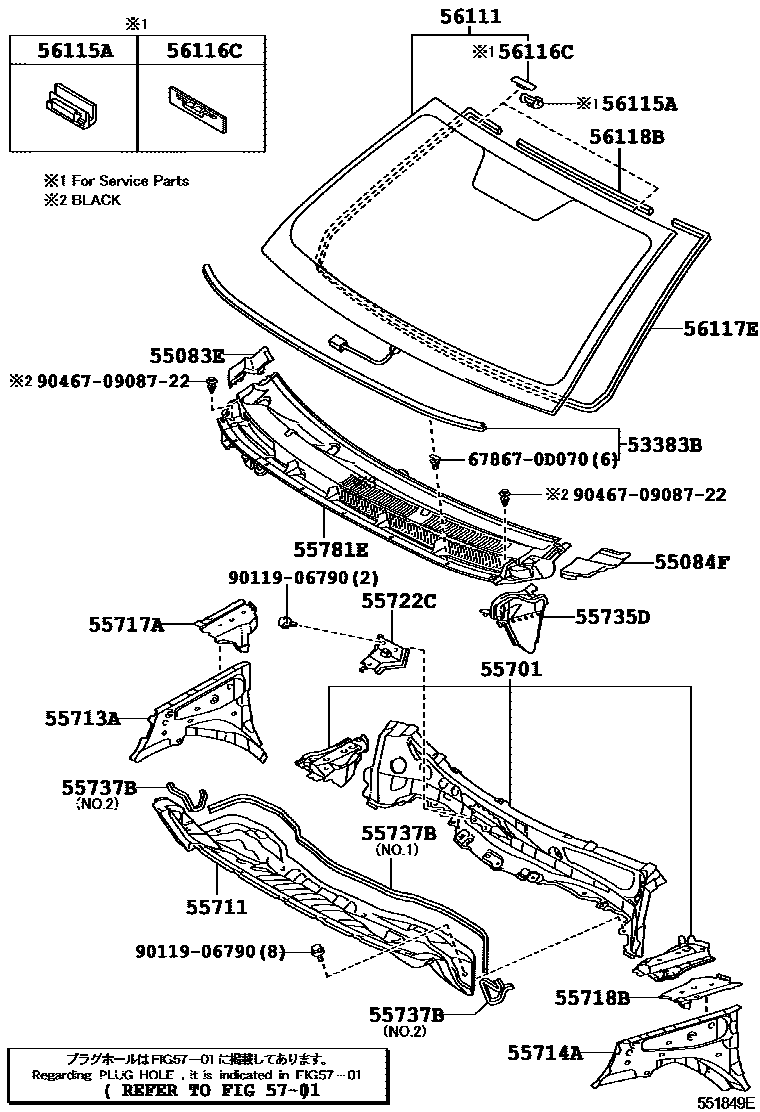

Toyota VIOS — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55083EVENTILATOR SUB-ASSY, COWL SIDE, RH
55084FVENTILATOR SUB-ASSY, COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55722CBRACE, COWL TOP TO COWL, INNER
55735DSEAL, FRONT AIR SHUTTER, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
NO.1
NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117EDAM, WINDOW GLASS ADHESIVE
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
5701
678670D070CLIP, DOOR WEATHERSTRIP
main67867-0D070
9011906790
904670908722
main90467-0908722
22 parts on this diagram · 2 diagrams in section
