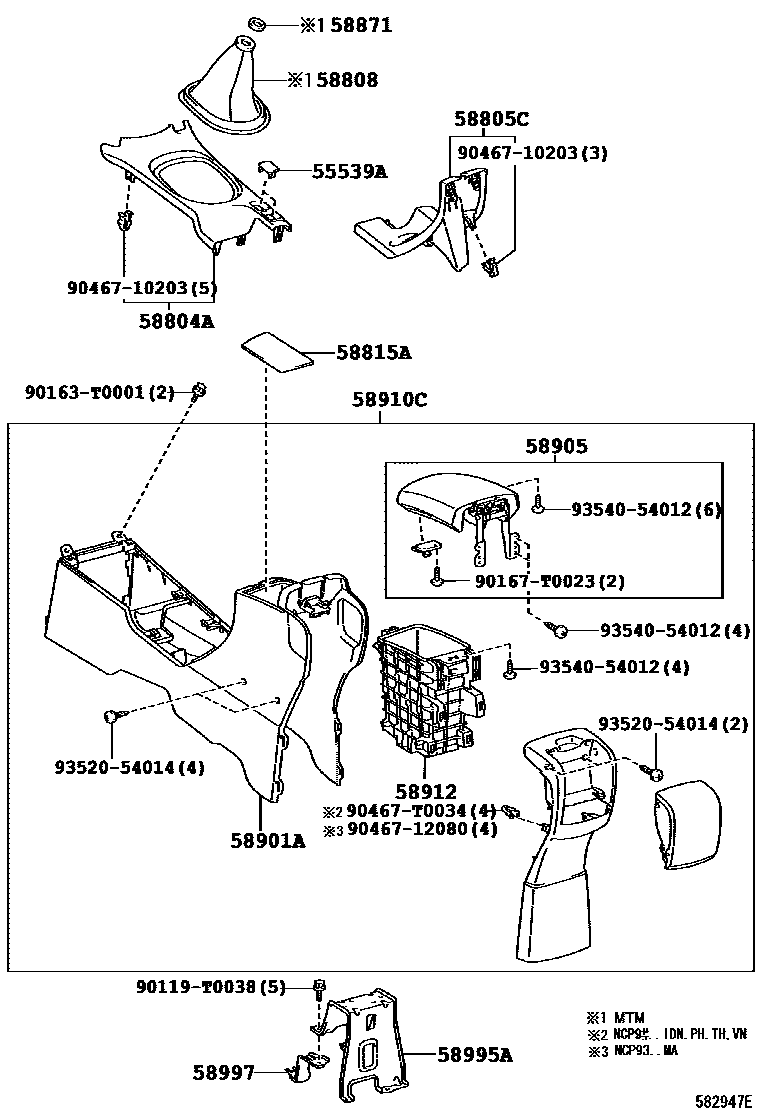

Toyota VIOS — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-0D090-B0iNCP93..RHD..(15J,LIMO)201003-201304

SINGAPORE & BRUNEI SPEC,DK.GRAY,TRIM1#

main55539-0D090-B0iNCP93..IDN,TH200702-201003

DK.GRAY,TRIM1#

main55539-0D090-B0iNCP93..RHD..(15E,15G)201003-201304

DK.GRAY,TRIM1#

main55539-0D090-E0iNCP93..RHD..(15E,15G,15J,LIMO)200702-201003

GREGE,TRIM4#

main55539-0D090-E0iNCP93..RHD..(15E,15G)201003-201304

GREGE,TRIM4#

main55539-52060-B0iNCP92..13E201004-201204

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B0iNCP93..PH201004-201307

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B0iNCP92..13E201204-201307

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B0iNCP93..LIMO..VN;NCP9#..(13J,E,J,S)..(MA,PH)201004-201403

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-B0iNCP9#..(13E,13J,15G,J,LIMO,S)..(MA,PH,VN)200708-201004

DK.GRAY,TRIM1#

sub55539-52060¥300

main55539-52060-E0iNCP93..E,G200709-201004

GREGE,TRIM4#

sub55539-52060¥300

main55539-52060-E0iNCP93..G;NCP93..E..VN201004-201403

GREGE,TRIM4#

sub55539-52060¥300

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0D010-B0iNCP93..RHD..ATM200702-201004

DK.GRAY,TRIM1#

main58804-0D010-B0iNCP93..RHD..ATM..(15E,15G,15J,E,J,S)201003-201310

DK.GRAY,TRIM1#

main58804-0D010-E0iNCP93..RHD..ATM..(15E,15G,G)201003-201310

GREGE,TRIM4#

main58804-0D010-E0iNCP93..RHD..ATM..(15E,15G,15J,E,G,J,S)200702-201004

GREGE,TRIM4#

main58804-0D020-B0iNCP93..RHD..MTM201003-201310

DK.GRAY,TRIM1#

sub58804-0D010

main58804-0D020-B0iNCP93..RHD..MTM200702-201004

DK.GRAY,TRIM1#

sub58804-0D010

main58804-0D020-E0iNCP93..RHD..MTM200702-201004

GREGE,TRIM4#

sub58804-0D010

main58804-0D020-E0iNCP93..RHD..MTM..(15E,15G)201003-201304

GREGE,TRIM4#

sub58804-0D010

main58804-0D030-B0iNCP9#..ATM..PH201004-201307

DK.GRAY,TRIM1#

main58804-0D030-B0iNCP93..ATM..PH200708-201004

DK.GRAY,TRIM1#

main58804-0D030-E0iNCP93..G..VN200709-201004

GREGE,TRIM4#

main58804-0D030-E0iNCP93..G..VN201004-201403

GREGE,TRIM4#

main58804-0D040-B0iNCP9#..LHD..MTM..(13E,13J,15G,LIMO)200708-201004

DK.GRAY,TRIM1#

sub58804-0D030

sub58804-0D041

main58804-0D040-B0iNCP9#..LHD..MTM..(13E,13J,15G,LIMO)201004-201403

DK.GRAY,TRIM1#

sub58804-0D030

sub58804-0D041

main58804-0D040-E0iNCP93..E..VN201004-201403

GREGE,TRIM4#

sub58804-0D030

sub58804-0D041

main58804-0D040-E0iNCP93..E..VN200709-201004

GREGE,TRIM4#

sub58804-0D030

sub58804-0D041

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0D010-B0iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)201003-201403

DK.GRAY,TRIM1#

main58805-0D010-B0iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201004

DK.GRAY,TRIM1#

main58805-0D010-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

main58805-0D010-E0iNCP93..LIMO..IDN;NCP93..(15E,15G,15J,E,G,J,S)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0D100-B0iNCP9#..MTM..PH200702-201004

DK.GRAY,TRIM1#

main58808-0D100-B0iNCP9#..MTM..PH200702-201004

DK.GRAY,TRIM1#,4#

main58808-0D100-B0iNCP93..LIMO200710-201004

DK.GRAY,TRIM1#,4#

main58808-0D100-B0iNCP9#..MTM..(13E,13J,15E,15G,15J,J,LIMO)201003-201403

DK.GRAY,TRIM1#

main58808-0D100-B0iNCP93..LIMO200702-200710

DK.GRAY,TRIM1#

main58808-0D100-E0iNCP93..MTM..(15E,15G,E)..(IDN,TH,VN)201003-201403

ASH BROWN,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-0D110iNCP93..IDN,TH200702-201003

main58815-0D110iNCP9#..LHD200702-201004

main58815-0D110iNCP9#..IDN,PH,TH,VN201003-201403

main58815-0D120iNCP93..MA201004-201310

main58815-0D120iNCP93..MA200710-201004

58871CUSHION, CONSOLE BOX

main58871-20060iNCP93..MTM..(IDN,TH)¥150200702-201003

main58871-20060iNCP9#..MTM..(MA,PH,VN)¥150200702-201004

main58871-20060iNCP9#..MTM¥150201003-201403

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-0D140-B0iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201004

DK.GRAY,TRIM1#

main58911-0D140-B0iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)201003-201403

DK.GRAY,TRIM1#

main58911-0D140-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

main58911-0D140-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0D030-B0iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)201003-201403

DK.GRAY,TRIM1#

main58905-0D030-B0iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201004

DK.GRAY,TRIM1#

main58905-0D030-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

main58905-0D030-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

58910CBOX ASSY, CONSOLE, REAR

main58910-0D040-B0iNCP93..MTM..VN;NCP9#..IDN,MA,PH,TH200702-201004

DK.GRAY,TRIM1#

main58910-0D040-B0iNCP93..LIMO..VN;NCP9#..(13E,13J,15E,15G,15J,E,J,LIMO,S)..(IDN,MA,PH,TH)201003-201403

DK.GRAY,TRIM1#

main58910-0D040-E0iNCP93..E..VN;NCP93..(15E,15G,G)..(IDN,MA,TH,VN)201003-201403

GREGE,TRIM4#

main58910-0D040-E0iNCP93..(15E,15G,15J,E,G,J,LIMO,S)..(IDN,MA,TH,VN)200702-201004

GREGE,TRIM4#

58912BOX, REAR CONSOLE, NO.2

main58912-0D010iNCP9#201003-201403

main58912-0D010iNCP93..IDN,TH200702-201003

main58912-0D010iNCP9#..MA,PH,VN200702-201004

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0D060iNCP9#..MA,PH,VN200702-201004

main58995-0D060iNCP9#201003-201112

main58995-0D060iNCP93..IDN,TH200702-201003

main58995-0D060iNCP9#201112-201403

(L)

main58995-52020iNCP9#¥3,880201112-201403

(J)

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-0D010iNCP93..IDN,TH,VN201003-201403

main58997-0D010iNCP93..IDN,TH200702-201003

main58997-0D010iNCP93..VN200702-201004

main58997-52010iNCP9#..MA,PH¥810201004-201310

main58997-52010iNCP9#..MA,PH¥810200708-201004

90119T0038

main90119-T0038¥60

90163T0001

main90163-T0001

90167T0023

main90167-T0023

9046710203

main90467-10203¥60

9046712080

main90467-12080¥60

90467T0034

main90467-T0034

9352054014

main93520-54014¥70

9354054012

main93540-54012¥90

20 parts on this diagram · 1 diagram in section
