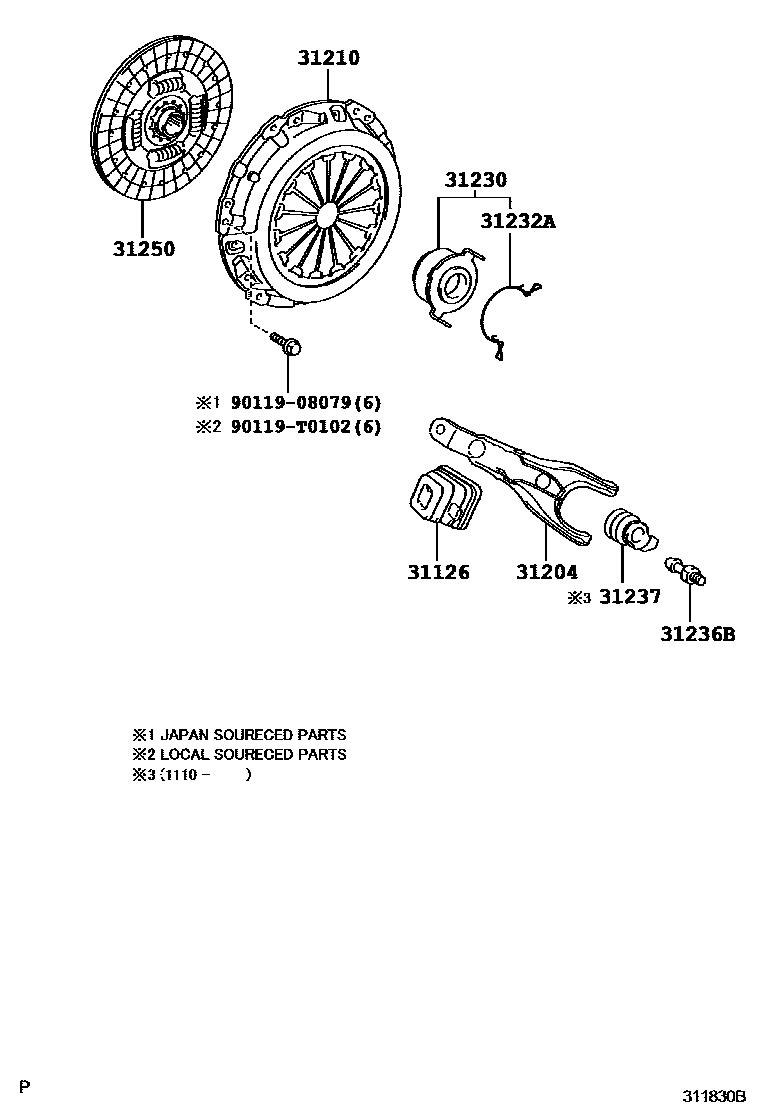

Toyota VIOS — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP93..MTM..(IDN,TH)¥570200702-201403

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP93..MTM..(IDN,TH)¥1,290200702-201403

31210COVER ASSY, CLUTCH

main31210-12280iNCP92¥11,100200708-200711

sub31210-12281¥11,100

main31210-12281iNCP92¥11,100200712-200807

sub31210-12282¥9,600

main31210-12282iNCP92¥9,600200808-201307

main31210-52051iNCP93..MTM¥12,200200702-200703

sub31210-52052¥10,600

main31210-52052iNCP93..MTM¥10,600200703-201203

sub31210-52053¥9,600

main31210-52053iNCP93..MTM¥9,600201204-201403

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP9#..MTM¥4,470200702-200812

sub31230-12181¥3,520

main31230-12181iNCP93..MTM..(IDN,TH)¥3,520200812-201403

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP93..MTM..(IDN,TH)¥110200702-201403

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP93..MTM..(IDN,TH)¥460200702-201403

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNCP9#..MTM¥370201110-201403

31250DISC ASSY, CLUTCH

main31250-12392iNCP92¥9,200200708-200812

sub31250-12393¥7,200

main31250-12393iNCP92¥7,200200901-201307

main31250-52050iNCP93..MTM..(IDN,TH)¥15,500200702-201403

9011908079

main90119-08079¥120

90119T0102

main90119-T0102¥80

10 parts on this diagram · 1 diagram in section
