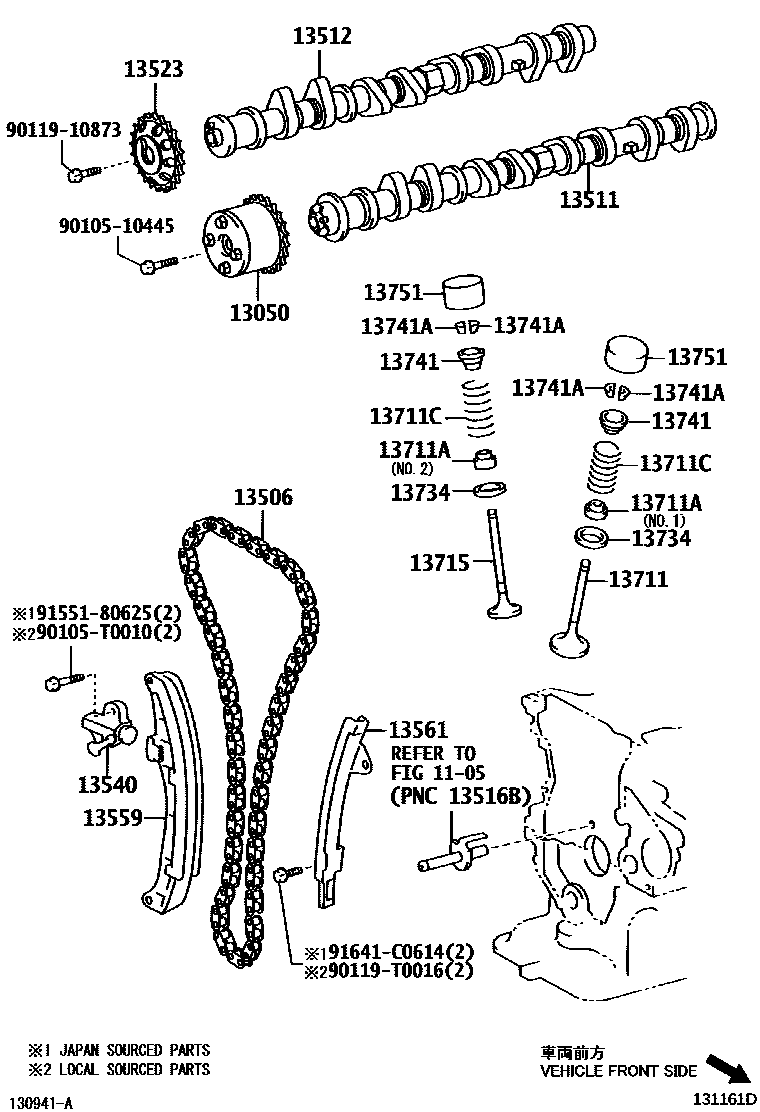

Toyota VIOS — CAMSHAFT & VALVE
1105
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
(L)
(J)
(J)
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13559SLIPPER, CHAIN TENSIONER
(L)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.1:REFER ILLUST.
13711CSPRING, COMPRESSION(FOR OUTER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
90105T0010
main90105-T0010
9011910873
90119T0016
main90119-T0016
9155180625
91641C0614
23 parts on this diagram · 1 diagram in section
