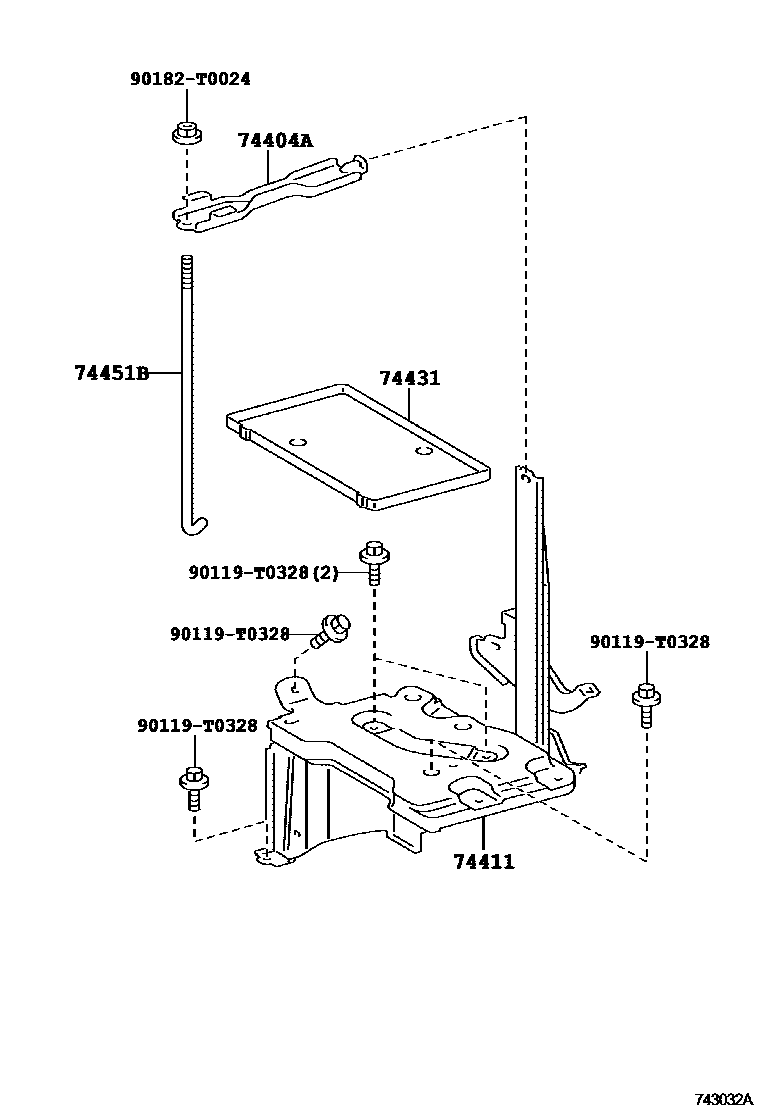

Toyota VIOS — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0D050iNCP93..IDN,TH200702-201403

74411CARRIER, BATTERY

main74410-0D040iNCP93..IDN,TH200702-201304

main74410-52010iNCP93..MA¥7,200200710-201109

sub74410-52011¥7,200

main74410-52011iNCP93..MA¥7,200201110-201310

main74410-52020iNCP9#..LHD¥7,200200708-201403

74431TRAY, BATTERY

main74431-0D120iNCP93..IDN,TH200702-201307

main74431-52100iNCP93..MA,VN¥1,810200709-201010

sub74431-52101¥1,140

main74431-52101iNCP93..MA,VN¥1,140201011-201403

74451BBOLT, BATTERY CLAMP

main74451-0D040iNCP9#200702-201403

90119T0328

main90119-T0328

90182T0024

main90182-T0024

6 parts on this diagram · 1 diagram in section
