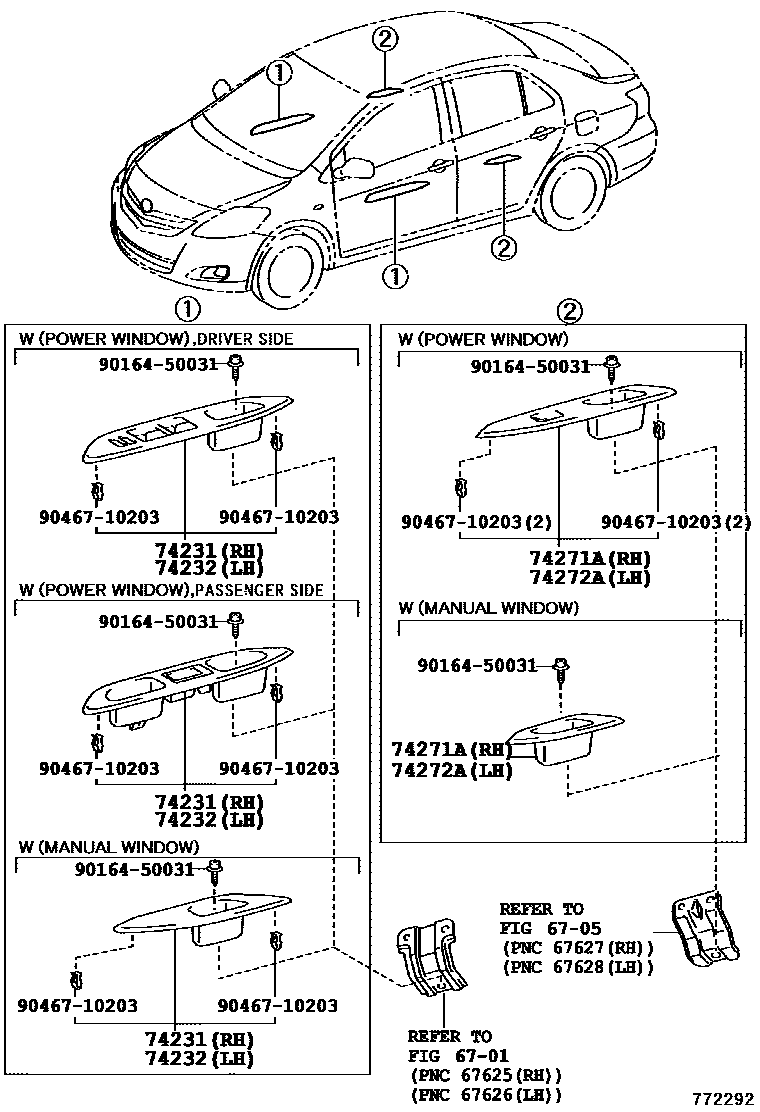

Toyota VIOS — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

6701

6705

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D200-B0iNCP93..15E..TH200806-201003

DK.GRAY,TRIM1#,4#

main74231-0D200-B0iNCP93..J200702-201004

DK.GRAY,TRIM1#,4#

main74231-0D200-B0iNCP93..(15E,15J,J)..(MA,TH)201003-201310

DK.GRAY,TRIM1#

main74231-0D200-B0iNCP93..15J;NCP93..15E..IDN200702-201003

DK.GRAY,TRIM1#,4#

main74231-0D200-E0iNCP93..15E..TH201003-201304

ASH BROWN,TRIM4#

main74231-0D210-B0iNCP93..RHD..15G200702-201003

SILVER,TRIM1#,4#

main74231-0D210-B0iNCP93..15E..TH200805-200806

SILVER,TRIM10,40

main74231-0D210-B0iNCP93..(E,G)..MA200702-201004

SILVER,TRIM1#,4#

main74231-0D210-B0iNCP93..15E..TH200702-200805

SILVER,TRIM1#,4#

main74231-0D210-B1iNCP93..15E..TH200805-200806

DK.GRAY,TRIM10,40

main74231-0D221-B1iNCP93..15S200702-201003

GRAY ME.,TRIM1#

main74231-0D221-B1iNCP93..15G..TH200702-201003

SINGAPORE & BRUNEI SPEC,GRAY ME.,TRIM1#

main74231-0D221-B1iNCP93..S201004-201310

GRAY ME.,TRIM1#

main74231-0D221-B1iNCP93..S200702-201004

GRAY ME.,TRIM1#

main74231-0D240-B0iNCP92..13J200708-201004

DK.GRAY,TRIM1#

main74231-0D280-B0iNCP93..E..MA201004-201310

ORNAMENT SILVER,TRIM1#

main74231-0D280-B0iNCP93..(15E,G)..(IDN,MA)201003-201310

ORNAMENT SILVER,TRIM4#

main74231-0D280-B0iNCP93..RHD..15G201003-201304

ORNAMENT SILVER,TRIM1#,4#

main74231-52380-B0iNCP93..LIMO201003-201403

DK.GRAY,TRIM1#

main74231-52380-B0iNCP93..LIMO..VN200702-201004

DK.GRAY,TRIM1#

main74231-52380-B0iNCP93..LIMO..IDN200702-201003

DK.GRAY,TRIM1#

main74231-52400-B0iNCP92201004-201307

DK.GRAY,TRIM1#

main74231-52400-B0iNCP92..13J201004-201307

LIMO PACKAGE,DK.GRAY,TRIM1#

main74231-52400-B0iNCP92..13E200708-201004

DK.GRAY,TRIM1#

main74231-52400-E0iNCP93..E..VN201004-201403

ASH BROWN,TRIM4#

main74231-52410-B1iNCP93..G..VN200709-201004

SILVER,TRIM1#,4#

main74231-52410-B1iNCP93..PH200708-201004

SILVER,TRIM1#

main74231-52410-B1iNCP93..E..VN200709-201004

SILVER,TRIM4#

main74231-52620-B0iNCP93..PH201004-201307

ORNAMENT SILVER,TRIM1#

main74231-52620-B0iNCP93..G..VN201004-201403

ORNAMENT SILVER,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D210-B0iNCP93..RHD..15G201003-201304

ORNAMENT SILVER,TRIM1#,4#

main74232-0D210-B0iNCP93..(15E,G)..(IDN,MA)201003-201310

ORNAMENT SILVER,TRIM4#

main74232-0D210-B0iNCP93..E..MA201004-201310

ORNAMENT SILVER,TRIM1#

main74232-0D230-B0iNCP93..15J;NCP93..15E..IDN200702-201003

DK.GRAY,TRIM1#,4#

main74232-0D230-B0iNCP93..J200702-201004

DK.GRAY,TRIM1#,4#

main74232-0D230-B0iNCP93..(15E,15J,J)..(MA,TH)201003-201310

DK.GRAY,TRIM1#

main74232-0D230-B0iNCP93..15E..TH200806-201003

DK.GRAY,TRIM1#,4#

main74232-0D230-E0iNCP93..15E..TH201003-201304

ASH BROWN,TRIM4#

main74232-0D240-B0iNCP93..15E..TH200805-200806

SILVER,TRIM10,40

main74232-0D240-B0iNCP93..(E,G)..MA200702-201004

SILVER,TRIM1#,4#

main74232-0D240-B0iNCP93..RHD..15G200702-201003

SILVER,TRIM1#,4#

main74232-0D240-B0iNCP93..15E..TH200702-200805

SILVER,TRIM1#,4#

main74232-0D240-B1iNCP93..15E..TH200805-200806

DK.GRAY,TRIM10,40

main74232-0D251-B1iNCP93..15S200702-201003

SINGAPORE & BRUNEI SPEC,GRAY ME.,TRIM1#

main74232-0D251-B1iNCP93..15S200702-201003

GRAY ME.,TRIM1#

main74232-0D251-B1iNCP93..S200702-201004

GRAY ME.,TRIM1#

main74232-0D251-B1iNCP93..S201004-201310

GRAY ME.,TRIM1#

main74232-0D270-B0iNCP92..13J200708-201004

DK.GRAY,TRIM1#

main74232-52300-B0iNCP93..LIMO..VN200702-201004

DK.GRAY,TRIM1#

main74232-52300-B0iNCP93..LIMO..IDN200702-201003

DK.GRAY,TRIM1#

main74232-52300-B0iNCP93..LIMO201003-201403

DK.GRAY,TRIM1#

main74232-52320-B0iNCP92201004-201307

DK.GRAY,TRIM1#

main74232-52320-B0iNCP92..13J201004-201307

LIMO PACKAGE,DK.GRAY,TRIM1#

main74232-52320-B0iNCP92..13E200708-201004

DK.GRAY,TRIM1#

main74232-52320-E0iNCP93..E..VN201004-201403

ASH BROWN,TRIM4#

main74232-52330-B1iNCP93..E..VN200709-201004

SILVER,TRIM4#

main74232-52330-B1iNCP93..G..VN200709-201004

SILVER,TRIM1#,4#

main74232-52330-B1iNCP93..PH200708-201004

SILVER,TRIM1#

main74232-52540-B0iNCP93..PH201004-201307

ORNAMENT SILVER,TRIM1#

main74232-52540-B0iNCP93..G..VN201004-201403

ORNAMENT SILVER,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0D010-B0iNCP93..J200702-201004

DK.GRAY,TRIM1#,4#

main74271-0D010-B0iNCP93..15J;NCP93..15E..IDN200702-201003

DK.GRAY,TRIM1#,4#

main74271-0D010-B0iNCP92..13E200708-201004

DK.GRAY,TRIM1#

main74271-0D010-B0iNCP9#..(13E,13J,15E,15J,J)..(MA,PH,TH)201003-201310

DK.GRAY,TRIM1#

main74271-0D010-B0iNCP93..15E..TH200806-201003

DK.GRAY,TRIM1#,4#

main74271-0D010-E0iNCP93..(15E,E)..(TH,VN)201003-201403

ASH BROWN,TRIM4#

main74271-0D020-B0iNCP93..PH200708-201004

SILVER,TRIM1#

main74271-0D020-B0iNCP93..15E..TH200702-200805

SILVER,TRIM1#,4#

main74271-0D020-B0iNCP93..15E..TH200805-200806

SILVER,TRIM10,40

main74271-0D020-B0iNCP93..G..VN200709-201004

SILVER,TRIM4#

main74271-0D020-B0iNCP93..RHD..15G200702-201003

SILVER,TRIM1#,4#

main74271-0D020-B0iNCP93..E..VN;NCP93..(E,G)..MA200702-201004

SILVER,TRIM1#,4#

main74271-0D020-B1iNCP93..15E..TH200805-200806

DK.GRAY,TRIM10,40

main74271-0D031-B1iNCP93..15G..TH200702-201003

GRAY ME.,TRIM1#

main74271-0D031-B1iNCP93..15S200702-201003

SINGAPORE & BRUNEI SPEC,GRAY ME.,TRIM1#

main74271-0D031-B1iNCP93..S200702-201004

GRAY ME.,TRIM1#

main74271-0D031-B1iNCP93..S201004-201310

GRAY ME.,TRIM1#

main74271-0D050-B0iNCP92..13J200906-201004

DK.GRAY,TRIM1#

main74271-0D100-B0iNCP93..(15G,E)..(MA,PH)201004-201310

ORNAMENT SILVER,TRIM1#

main74271-0D100-B0iNCP93..RHD..15G201003-201304

ORNAMENT SILVER,TRIM1#,4#

main74271-0D100-B0iNCP93..(15E,G)..(IDN,MA,VN)201003-201403

ORNAMENT SILVER,TRIM4#

main74271-52090-B0iNCP93..LIMO..IDN200702-201003

DK.GRAY,TRIM1#

main74271-52090-B0iNCP93..LIMO..VN200702-201004

DK.GRAY,TRIM1#

main74271-52090-B0iNCP92..13J200702-200906

DK.GRAY,TRIM1#

main74271-52090-B0iNCP93..LIMO201003-201403

DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0D010-B0iNCP93..15E..TH200806-201003

DK.GRAY,TRIM1#,4#

main74272-0D010-B0iNCP93..J200702-201004

DK.GRAY,TRIM1#,4#

main74272-0D010-B0iNCP9#..(13E,13J,15E,15J,J)..(MA,PH,TH)201003-201310

DK.GRAY,TRIM1#

main74272-0D010-B0iNCP93..15J;NCP93..15E..IDN200702-201003

DK.GRAY,TRIM1#,4#

main74272-0D010-B0iNCP92..13E200708-201004

DK.GRAY,TRIM1#

main74272-0D010-E0iNCP93..(15E,E)..(TH,VN)201003-201403

ASH BROWN,TRIM4#

main74272-0D020-B0iNCP93..15E..TH200805-200806

SILVER,TRIM10,40

main74272-0D020-B0iNCP93..15E..TH200702-200805

SILVER,TRIM1#,4#

main74272-0D020-B0iNCP93..RHD..15G200702-201003

SILVER,TRIM1#,4#

main74272-0D020-B0iNCP93..E..VN;NCP93..(E,G)..MA200702-201004

SILVER,TRIM1#,4#

main74272-0D020-B0iNCP93..PH200708-201004

SILVER,TRIM1#

main74272-0D020-B0iNCP93..G..VN200709-201004

SILVER,TRIM4#

main74272-0D020-B1iNCP93..15E..TH200805-200806

DK.GRAY,TRIM10,40

main74272-0D031-B1iNCP93..15G..TH200702-201003

GRAY ME.,TRIM1#

main74272-0D031-B1iNCP93..S200702-201004

GRAY ME.,TRIM1#

main74272-0D031-B1iNCP93..15S200702-201003

SINGAPORE & BRUNEI SPEC,GRAY ME.,TRIM1#

main74272-0D031-B1iNCP93..S201004-201310

GRAY ME.,TRIM1#

main74272-0D050-B0iNCP92..13J200906-201004

DK.GRAY,TRIM1#

main74272-0D100-B0iNCP93..RHD..15G201003-201304

ORNAMENT SILVER,TRIM1#,4#

main74272-0D100-B0iNCP93..(15G,E)..(MA,PH)201004-201310

ORNAMENT SILVER,TRIM1#

main74272-0D100-B0iNCP93..(15E,G)..(IDN,MA,VN)201003-201403

ORNAMENT SILVER,TRIM4#

main74272-52080-B0iNCP93..LIMO..IDN200702-201003

DK.GRAY,TRIM1#

main74272-52080-B0iNCP93..LIMO..VN200702-201004

DK.GRAY,TRIM1#

main74272-52080-B0iNCP93..LIMO201003-201403

DK.GRAY,TRIM1#

main74272-52080-B0iNCP92..13J200702-200906

DK.GRAY,TRIM1#

9016450031

main90164-50031¥70

9046710203

main90467-10203¥60

8 parts on this diagram · 2 diagrams in section
