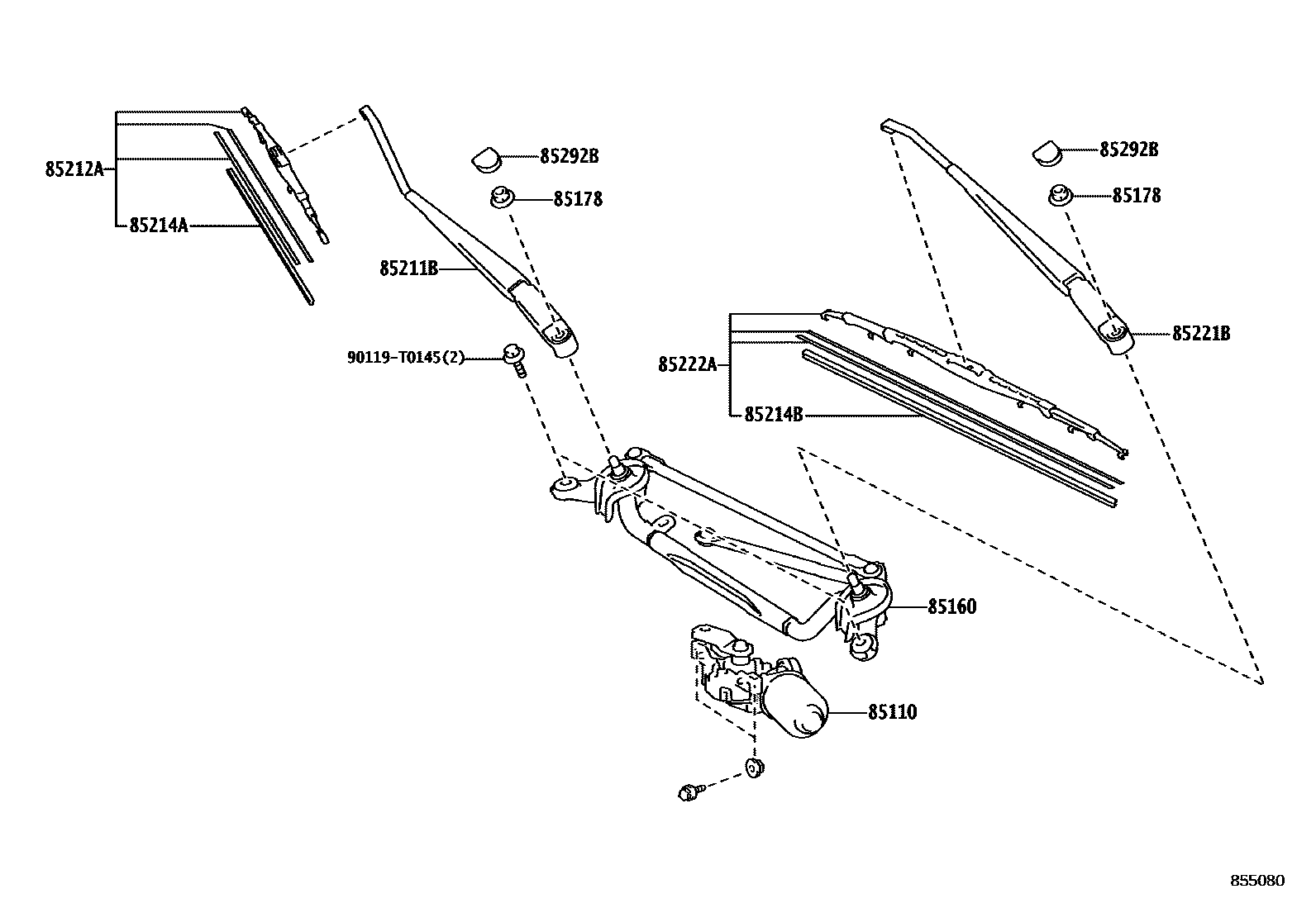

Toyota VIOS/YARIS — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D260iNSP150,151..LHD202303

main85110-0D340iNSP15#..RHD202303

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D200iNSP150..R;NSP151..VN202303

GUATEMALA

main85150-0D200iNSP150..R;NSP151..VN202303

CHILE SPEC

main85150-0D200iNSP150..R;NSP151..VN202303

ECUADOR

main85150-0D200iNSP150..R;NSP151..VN202303

COSTA RICA SPEC

main85150-0D210iNSP15#..RHD202303

main85150-0D300iNSP151..GEN202303

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-T0029iNSP15#202303

85211BARM, FRONT WIPER, RH

main85211-0D200iNSP150..R;NSP151..VN202303

GUATEMALA

main85211-0D200iNSP150..R;NSP151..VN202303

CHILE SPEC

main85211-0D200iNSP150..R;NSP151..VN202303

ECUADOR

main85211-0D200iNSP150..R;NSP151..VN202303

COSTA RICA SPEC

main85211-0D210iNSP15#..RHD202303

main85211-0D260iNSP151..GEN202303

85212ABLADE, FR WIPER, RH

main85212-0D070iNSP15#..RHD¥3,360202303

main85212-0D081iNSP150,151..LHD202303

85214ARUBBER, WIPER, RH

main85214-02180iNSP15#..RHD202303

main85214-0D121iNSP150,151..LHD¥0202303

85214BRUBBER, WIPER, LH

main85214-02180iNSP150,151..LHD202303

main85214-0D121iNSP15#..RHD¥0202303

85221BARM, FRONT WIPER, LH

main85221-0D180iNSP150..R;NSP151..VN202303

GUATEMALA

main85221-0D180iNSP150..R;NSP151..VN202303

CHILE SPEC

main85221-0D180iNSP150..R;NSP151..VN202303

ECUADOR

main85221-0D180iNSP150..R;NSP151..VN202303

COSTA RICA SPEC

main85221-0D190iNSP15#..RHD202303

main85221-0D300iNSP151..GEN202303

85222ABLADE, FR WIPER, LH

main85222-0D071iNSP15#..RHD¥1,340202303

main85222-0D080iNSP150,151..LHD202303

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iNSP15#¥200202303

90119T0145

main90119-T0145

11 parts on this diagram · 2 diagrams in section
