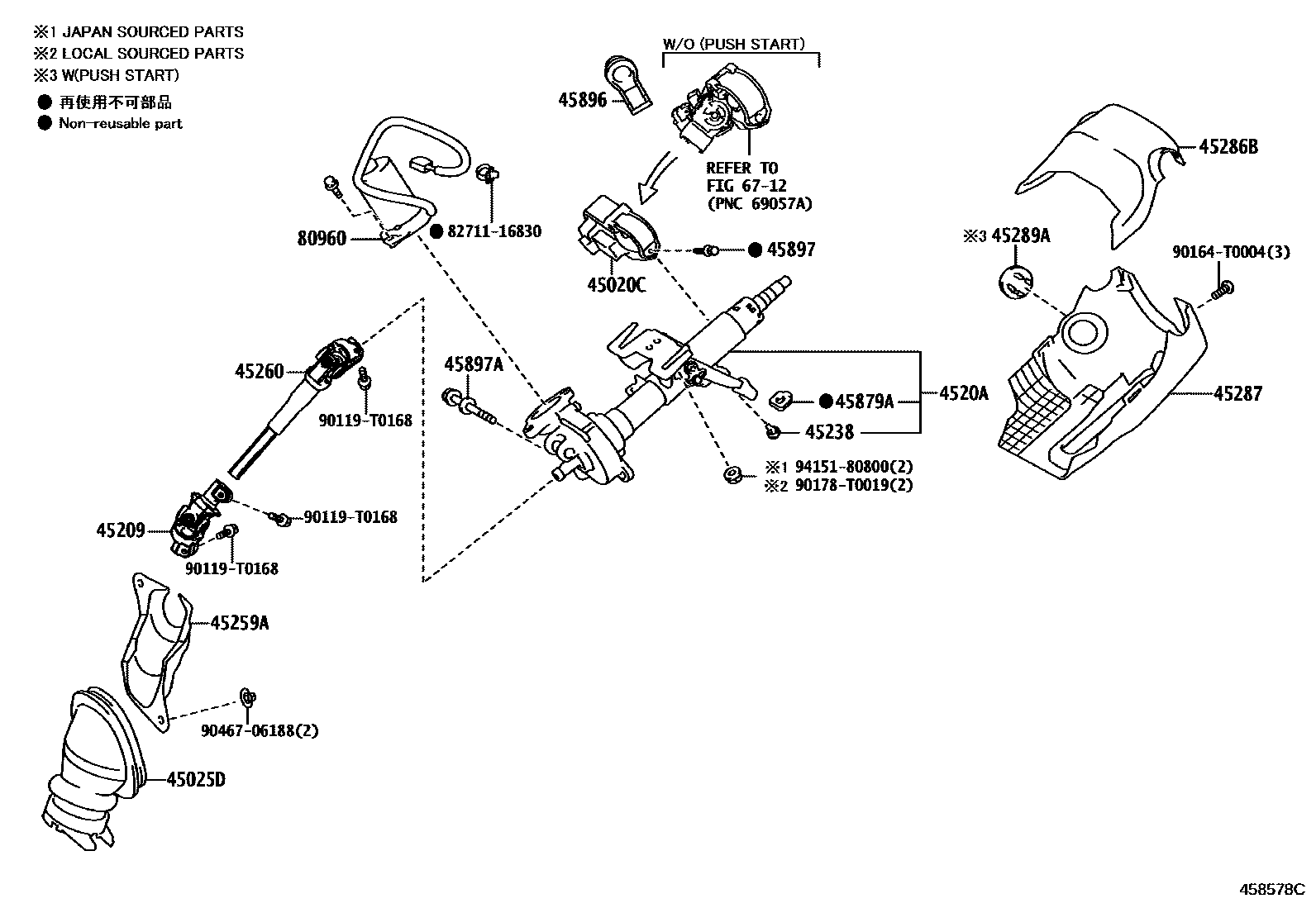

Toyota VIOS/YARIS — STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K240iNSP151..G..VN;NSP151,152..RHD202303

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D241iNSP15#..GCC,GEN,MA,TH,VN202303

main45025-0D270iNSP150,151..PKN202407

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D080iNSP15#..GCC,GEN,PKN,TH,VN202303

main45209-0D090iNSP151..MA202305

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D371iNSP150..PKN202407

main4520A-0D381iNSP151,152..PKN,TH202303

main4520A-0D391iNSP150,151..LHD..(D,R)202303

main4520A-0D401iNSP151..G..VN202303

main4520A-0D451iNSP151..MA202305

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP15#¥70202303

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D250iNSP15#..RHD202303

main45259-0D260iNSP150,151..LHD202303

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D211iNSP15#..PKN,TH202303

main45260-0D221iNSP150,151..LHD202303

main45260-0D251iNSP151..MA202305

45286BCOVER, STEERING COLUMN, UPR

main45286-0D240-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

main45286-0D320-C0iNSP151..5F..VN;NSP151,152..RHD..5D202303

BLACK,TRIM2#

main45286-0D320-C0iNSP151..5F..VN;NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#

45287COVER, STEERING COLUMN, LWR

main45287-0D200-C0iNSP150,151..PKN202407

BLACK,TRIM0#,2#

main45287-0D290-C0iNSP150..R;NSP151..5F..GEN;NSP151..LHD..CVT202303

BLACK,TRIM2#

main45287-0D290-C0iNSP151..5F..VN;NSP151,152..RHD..5D202303

BLACK,TRIM0#,2#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D020-C0iNSP151,152..RHD..5D202303

BLACK,TRIM2#

sub45289-0D020

main45289-0D020-C0iNSP151,152..RHD..5D202303

BLACK,TRIM0#,2#

sub45289-0D020

main45289-0D140-C0iNSP151..PKN202407

BLACK,TRIM0#,2#

45879ACAPSULE, BREAK AWAY

main45879-0D030iNSP15#..GCC,GEN,PKN,TH,VN202303

main45879-0D040iNSP151..MA202305

45896PLATE, IGNITION SWITCH ATTACHMENT

main81871-0D020iNSP151..5F..VN202304

45897BOLT, STEERING LOCK SET

main45897-12020iNSP15#¥210202303

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNSP15#¥540202303

6712

80960MOTOR ASSY, POWER STEERING

main80960-0D320iNSP15#..GCC,GEN,PKN,TH,VN202303

main80960-0D360iNSP151..MA202305

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830¥100

90119T0168

main90119-T0168

90164T0004

main90164-T0004¥110

90178T0019

main90178-T0019

9046706188

main90467-06188¥160

9415180800

main94151-80800¥80

22 parts on this diagram · 3 diagrams in section
