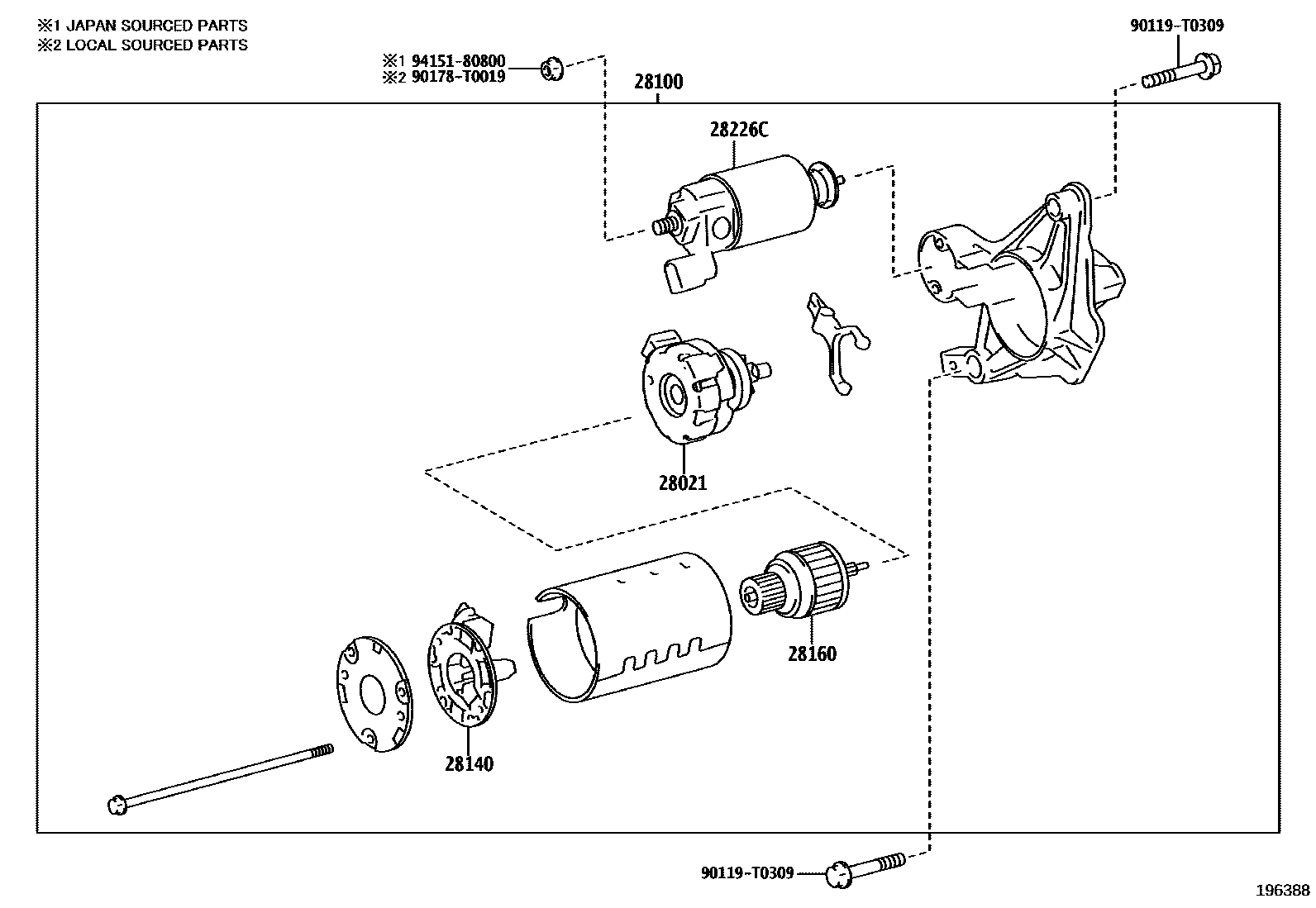

Toyota VIOS/YARIS — STARTER

0001 112V 1.0KW,1.2KW 0002 112V 1.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0Y300i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main28021-0Y470i3NRFKE..NSP152202303

28100STARTER ASSY

main28100-0Y260i1NRFE,2NRFE..NSP150,151..PKN202407

12V 1.0KW

main28100-0Y300i2NRFE..NSP151..4D..VN202304

12V 1.0KW

main28100-0Y340i1NRFE,2NRFE..NSP150,151..LHD..5D202303

12V 1.0KW

main28100-0Y350i2NRFE..NSP151..MA202305

12V 1.0KW

main28100-0Y470i3NRFKE..NSP152202303

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0Y300i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main28140-K0060i3NRFKE..NSP152202303

28160ARMATURE ASSY, STARTER

main28160-0Y300i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main28160-0Y470i3NRFKE..NSP152202303

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-0Y340i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main28226-0Y470i3NRFKE..NSP152202303

90119T0309

main90119-T0309

90178T0019

main90178-T0019

9415180800

main94151-80800¥80

8 parts on this diagram · 2 diagrams in section
