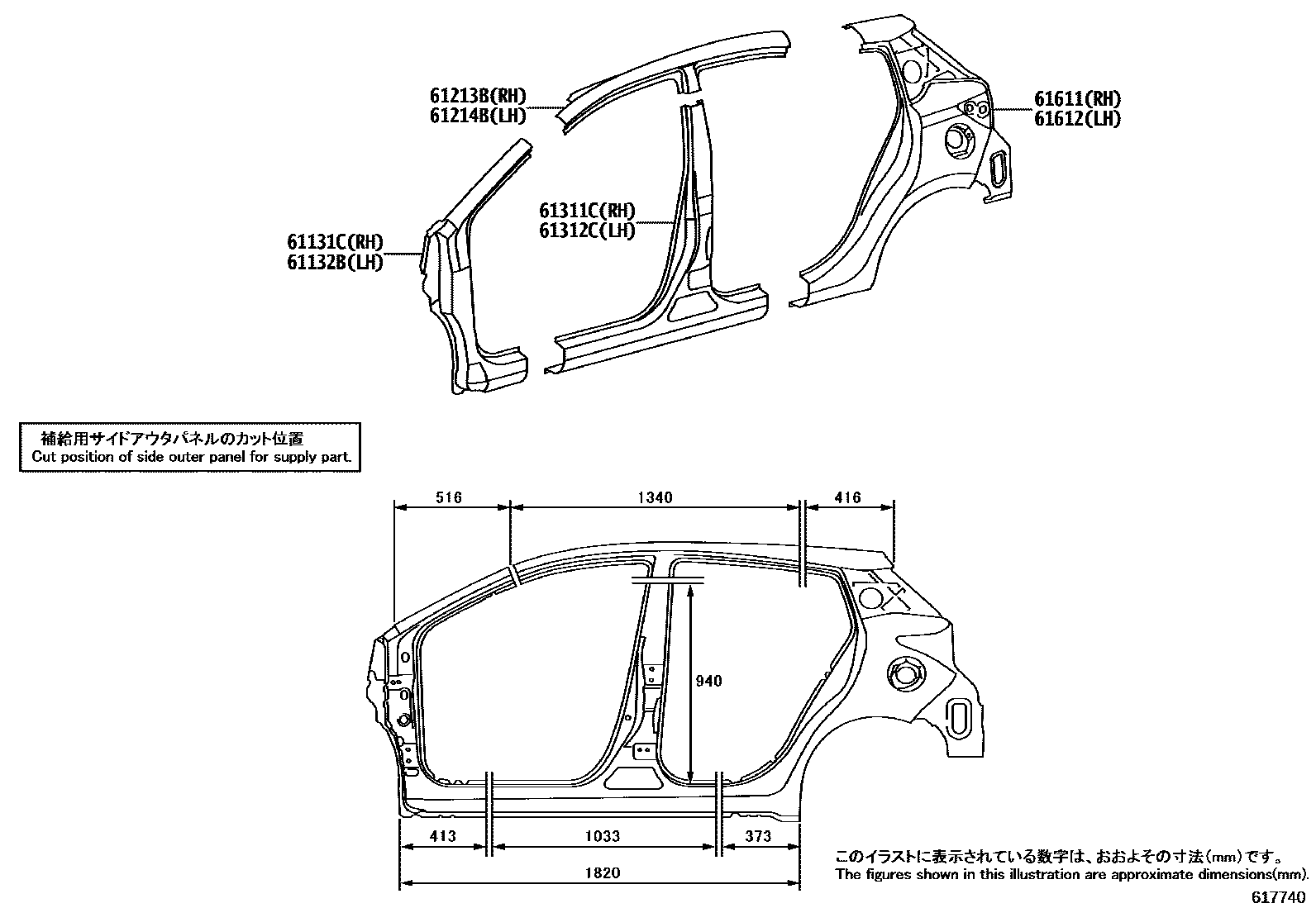

Toyota VIOS/YARIS — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH 0004 1OUTER PANEL 0005 1INNER PANEL, RH 0006 1INNER PANEL, LH 0007 1RH 0008 1LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D200iNSP15#..GCC,GEN,MA,TH,VN202303

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0D200iNSP15#..GCC,GEN,MA,TH,VN202303

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D100iNSP151..4D..VN202304

main61213-0D190iNSP15#..5D202303

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0D100iNSP151..4D..VN202304

main61214-0D190iNSP15#..5D202303

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0D130iNSP15#..GCC,GEN,MA,TH,VN202303

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-0D130iNSP15#..GCC,GEN,TH,VN202303

main61312-0D140iNSP151..MA202305

61611PANEL, QUARTER, RH

main61601-0D260iNSP151..4D..VN202304

main61601-0D450iNSP15#..5D202303

61612PANEL, QUARTER, LH

main61602-0D410iNSP151..4D..VN202304

main61602-0D470iNSP15#..5D202303

8 parts on this diagram · 8 diagrams in section
