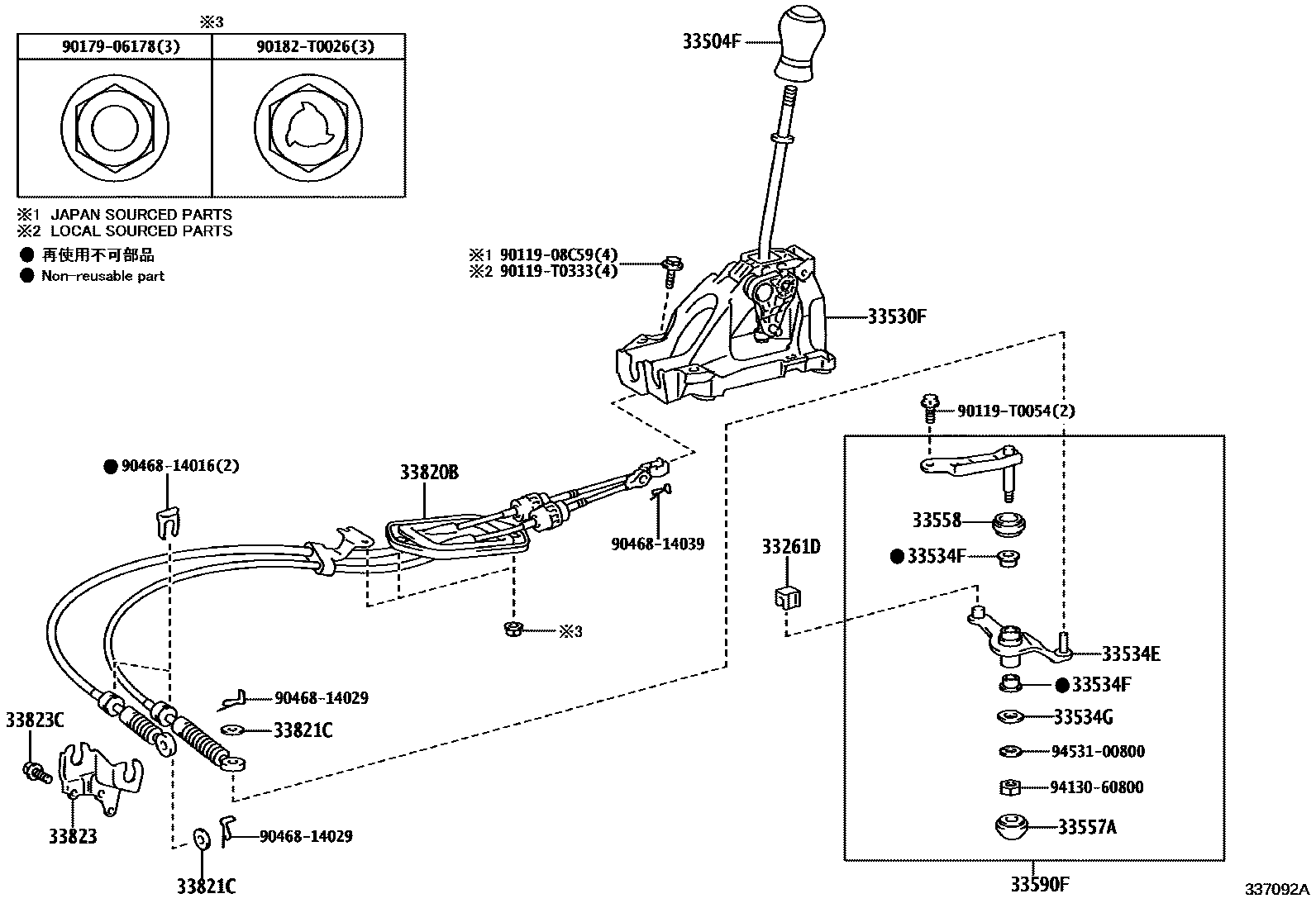

Toyota VIOS/YARIS — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNSP150,151..5F¥450202303

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D370-C0iNSP150..5F..D202407

BLACK,TRIM0#,2#

main33504-0D370-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main33504-0D580-C0iNSP150,151..CVT..D202303

BLACK,TRIM0#,2#

main33504-0D640-C0iNSP152;NSP151..G..MA202303

BLACK,TRIM0#,2#

main33504-0D640-C0iNSP152;NSP151..G..MA202303

BLACK,TRIM2#

main33504-0D640-C0iNSP152;NSP151..G..MA202303

ECO PACKAGE&YP2 PACKAGE,BLACK,TRIM2#

main33504-0D640-C0iNSP152202303

E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM2#

main33504-0D650-C0iNSP152202303

BLACK,TRIM0#,2#

main33504-0D650-C0iNSP152202303

ECO PACKAGE,BLACK,TRIM2#

main33504-0D650-C0iNSP151..R..MA202305

BLACK,TRIM2#

main33504-0D680-C0iNSP150,151..5F..(G,R)..(GEN,PKN)202303

BLACK,TRIM0#,2#

main33504-0D690-C0iNSP150,151..CVT..G..PKN202407

BLACK,TRIM0#,2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0D220iNSP150,151..5F202303

33534ECRANK, SELECTING BELL, NO.2

main33534-0D030iNSP150,151..5F202303

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iNSP150,151..5F¥130202303

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iNSP150,151..5F¥100202303

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iNSP150,151..5F¥280202303

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iNSP150,151..5F¥230202303

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-0D030iNSP150,151..5F202303

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D520iNSP150..CVT202303

main33820-0D630iNSP150,151..5F202303

main33820-0D640iNSP151..CVT..(GEN,PKN,VN)202303

main33820-0D660iNSP151..MA202305

main33820-0D820iNSP152202303

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iNSP150,151..5F¥100202303

OD=28

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33524-0D170iNSP150,151..5F202303

main33823-0D110iNSP150..CVT202303

main33823-0D180iNSP151..CVT..(GEN,PKN,VN)202303-202408

main33823-0D270iNSP152202303

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-T0102iNSP15#..CVT¥80202303

main90119-T0412iNSP150,151..5F¥80202303

9011908C59

main90119-08C59¥80

90119T0054

main90119-T0054¥80

90119T0333

main90119-T0333

9046814016

main90468-14016¥160

9046814029

main90468-14029¥90

9046814039

main90468-14039¥60

9413060800

main94130-60800¥60

9453100800

main94531-00800¥160

21 parts on this diagram · 3 diagrams in section
