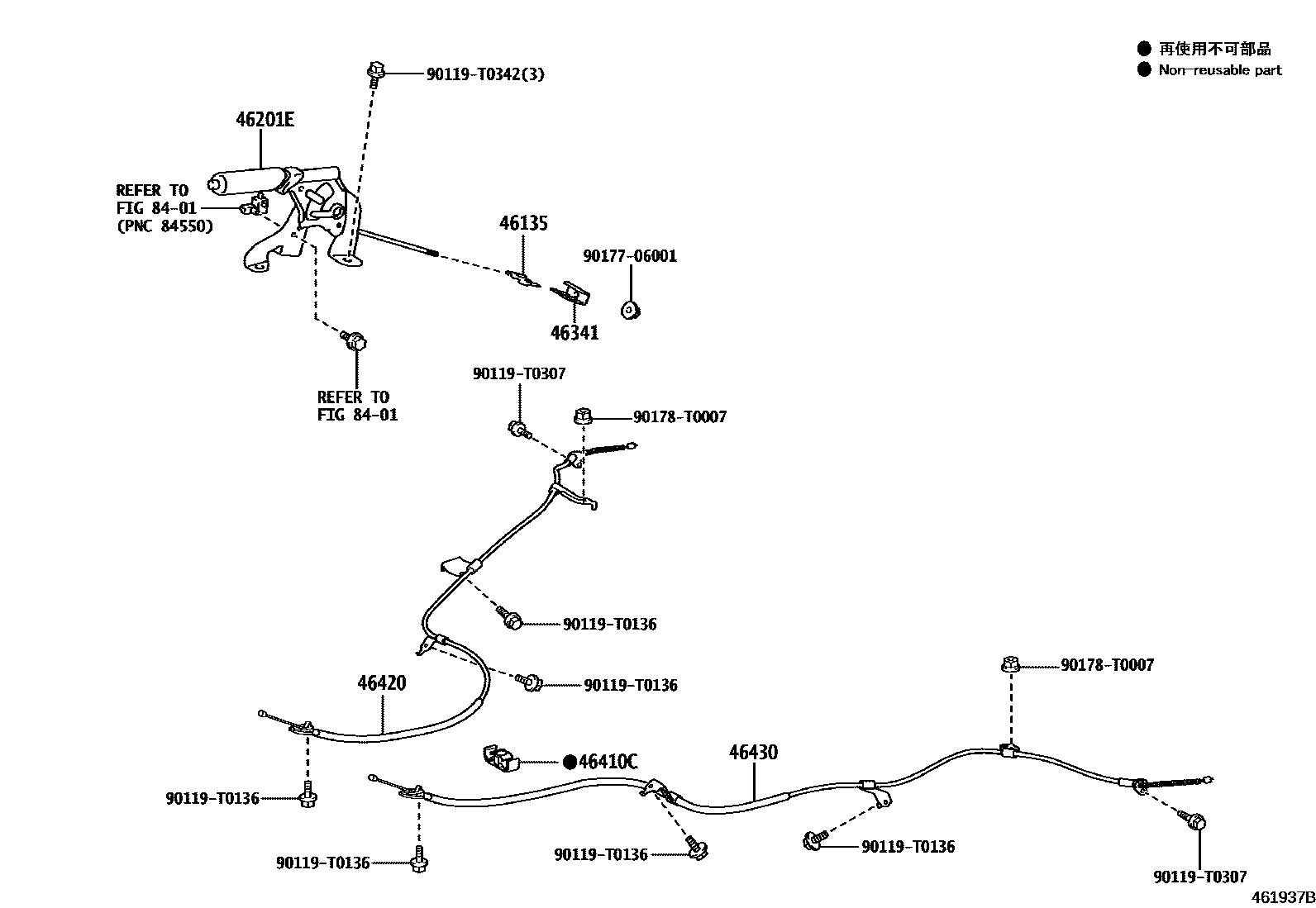

Toyota VIOS/YARIS — PARKING BRAKE & CABLE

0001 1REAR DRUM BRAKE 0002 1REAR DISC BRAKE

46135STOPPER, PARKING BRAKE CABLE END

main46135-0D030iNSP15#202303

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0D311-C0iNSP151,152..RHD..R202303

BLACK,TRIM2#

main46201-0D311-C0iNSP151,152..RHD..R202303

BLACK,TRIM0#,2#

main46201-0D311-C0iNSP151,152..RHD..R202303

ECO PACKAGE&YP2 PACKAGE,BLACK,TRIM2#

main46201-0D321-C0iNSP150..GEN;NSP151..(G,R)..(GEN,PKN)202303

BLACK,TRIM0#,2#

main46201-0D321-C0iNSP150..GEN;NSP151..(G,R)..(GEN,PKN)202303

G PACKAGE,BLACK,TRIM2#

main46201-0D331-C0iNSP151..5D..VN;NSP151..CVT..R..VN202303

BLACK,TRIM0#,2#

main46201-0D331-C0iNSP151..5F..VN202304

BLACK,TRIM2#

main46201-0D341-C0iNSP151..4D..G..VN202304

BLACK,TRIM0#,2#

main46201-0D341-C0iNSP151..G..MA202305

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-0D070iNSP15#202303

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0D020iNSP15#202303

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0D260iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

main46420-0D270iNSP151..VN202303

main46420-0D280iNSP151..G..MA202305

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0D260iNSP150,152;NSP151..PKN;NSP151..5D..(D,R)202303

main46430-0D270iNSP151..VN¥3,200202303

main46430-0D280iNSP151..G..MA202305

8401

90119T0136

main90119-T0136

90119T0307

main90119-T0307

90119T0342

main90119-T0342

9017706001

main90177-06001¥60

90178T0007

main90178-T0007¥80

12 parts on this diagram · 2 diagrams in section
