Toyota VIOS/YARIS — MUDGUARD & SPOILER

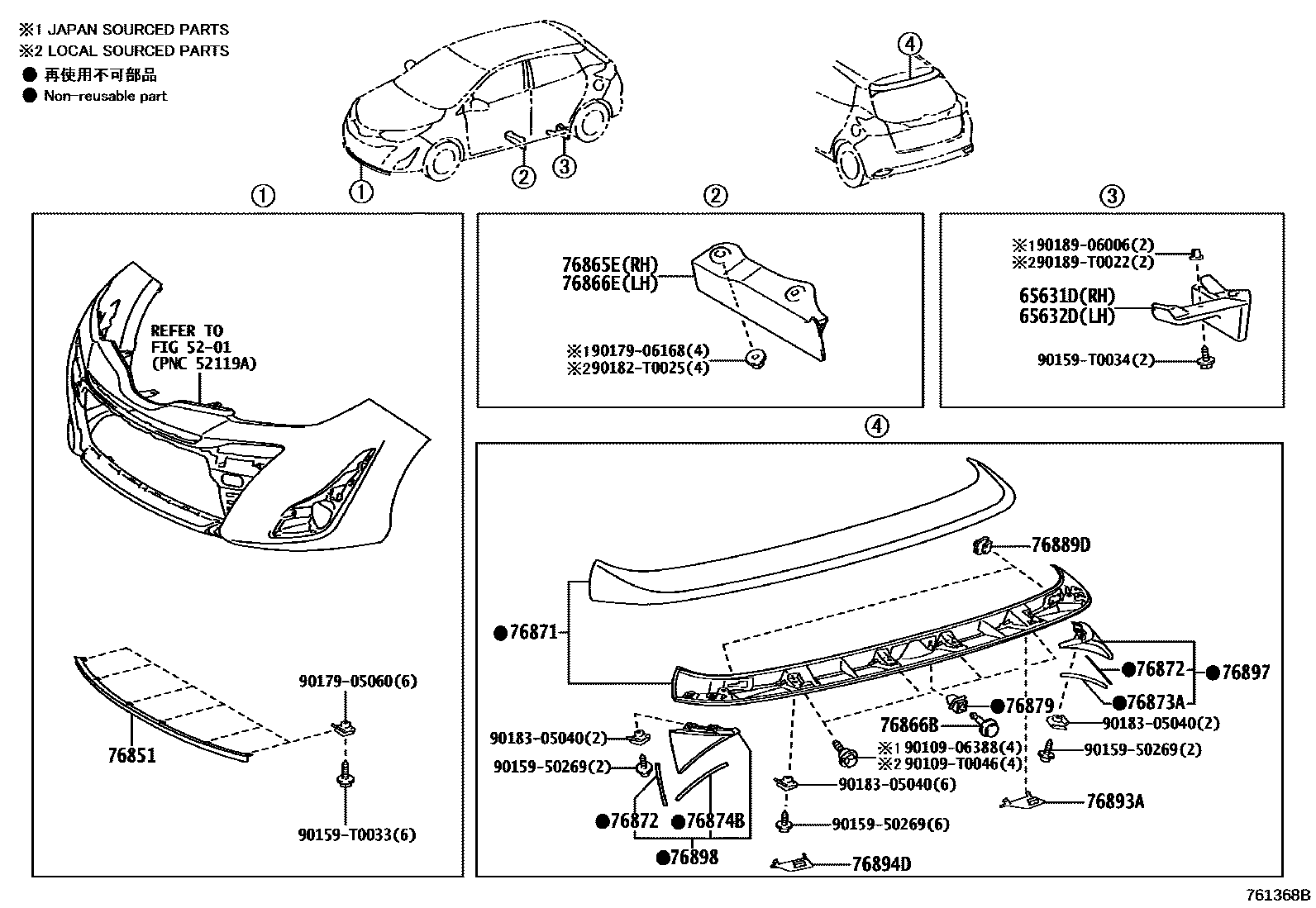

Parts diagram
5201
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-0D070i202303
main65631-0D140i202304
main65631-0D200i202305
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-0D070i202303
main65632-0D140i202304
main65632-0D200i202305
76851COVER, FRONT SPOILER
main76851-0D230i202303
76865EPROTECTOR, ROCKER PANEL MOULDING, NO.5
main75865-0D030i202303
76866BRETAINER, REAR SPOILER, NO.2
main76866-48010i¥60202303
76866EPROTECTOR, ROCKER PANEL MOULDING, NO.6
main75866-0D030i202303
76871SPOILER, REAR
main76085-0D908i202305
PAINT REQ.
sub76085-0D912
main76085-0D911i202303
PAINT REQ.
76872PROTECTOR, REAR SPOILER, NO.1
main76872-0D040i202303
main76872-0D050i202305
76873APROTECTOR, REAR SPOILER, RH
main76873-0D100i202303
main76873-0D110i202305
76874BPROTECTOR, REAR SPOILER, LH
main76873-0D100i202303
main76873-0D110i202305
76879CLIP, REAR SPOILER, NO.1
main76879-0D070i202303
76889DCLIP, REAR SPOILER, NO.2
main76889-0D030i202303
76893ACOVER, REAR SPOILER, RH
main76893-0D912i202303
main76893-0D913i202305
76894DCOVER, REAR SPOILER, LH
main76894-0D912i202303
main76894-0D913i202305
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-0D081i202303
main76897-0D091i202305
76898PROTECTOR, REAR SPOILER, SIDE LH
main76898-0D081i202303
main76898-0D091i202305
9010906388
main90109-06388¥70
90109T0046
main90109-T0046
9015950269
main90159-50269¥70
90159T0033
main90159-T0033¥60
90159T0034
main90159-T0034
9017905060
main90179-05060¥70
9017906168
main90179-06168¥80
90182T0025
main90182-T0025¥80
9018305040
main90183-05040¥80
9018906006
main90189-06006¥100
90189T0022
main90189-T0022

28 parts on this diagram · 2 diagrams in section
