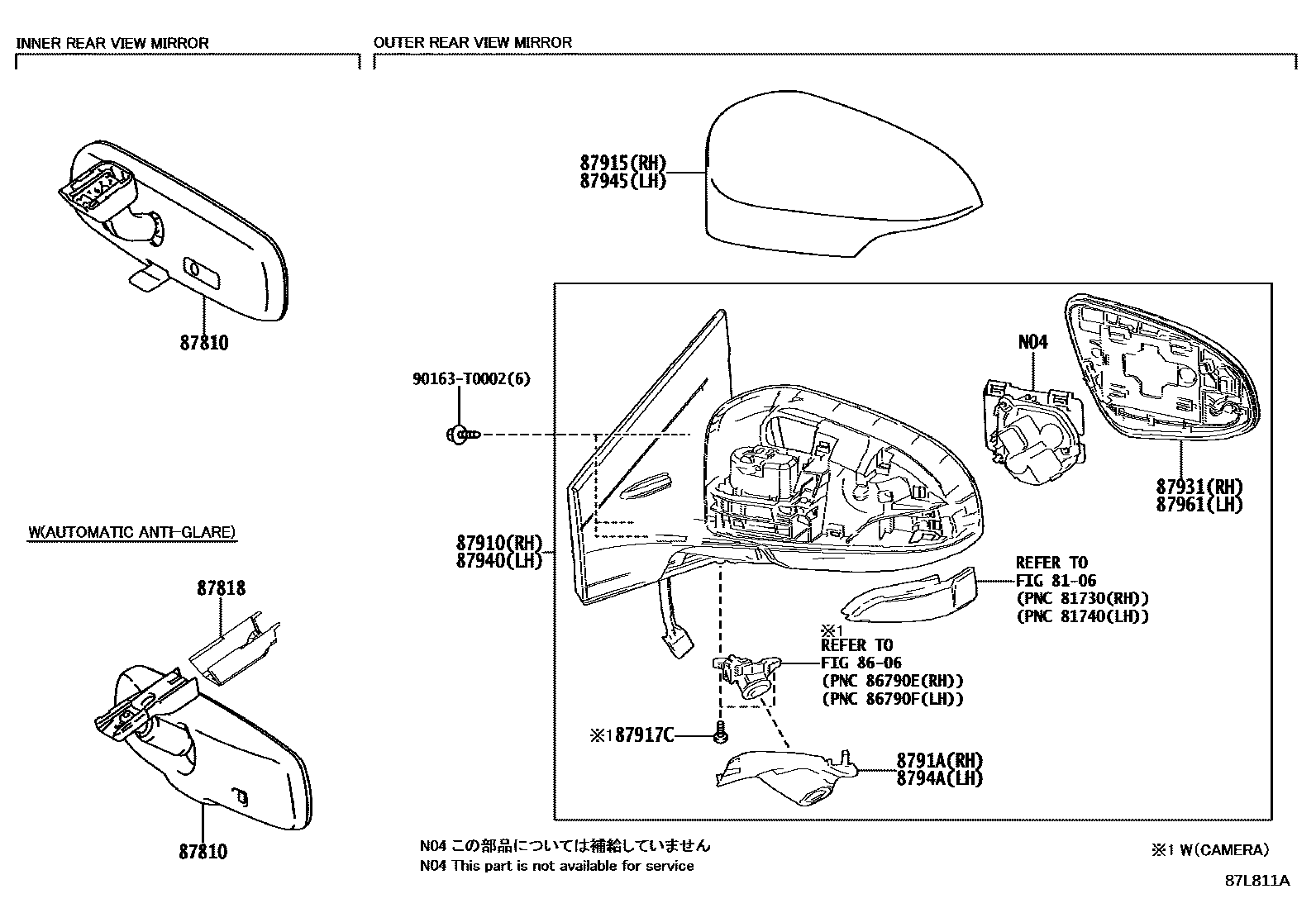

Toyota VIOS/YARIS — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87818COVER, INNER RR VIEW MIRROR
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.,E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE
PAINT REQ.
PAINT REQ.,ECO PACKAGE
PAINT REQ.
PAINT REQ.
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-0DF40
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.,E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE
PAINT REQ.
PAINT REQ.,ECO PACKAGE
PAINT REQ.
PAINT REQ.
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-0DF30
87961MIRROR OUTER, LH
90163T0002
main90163-T0002
14 parts on this diagram · 1 diagram in section
