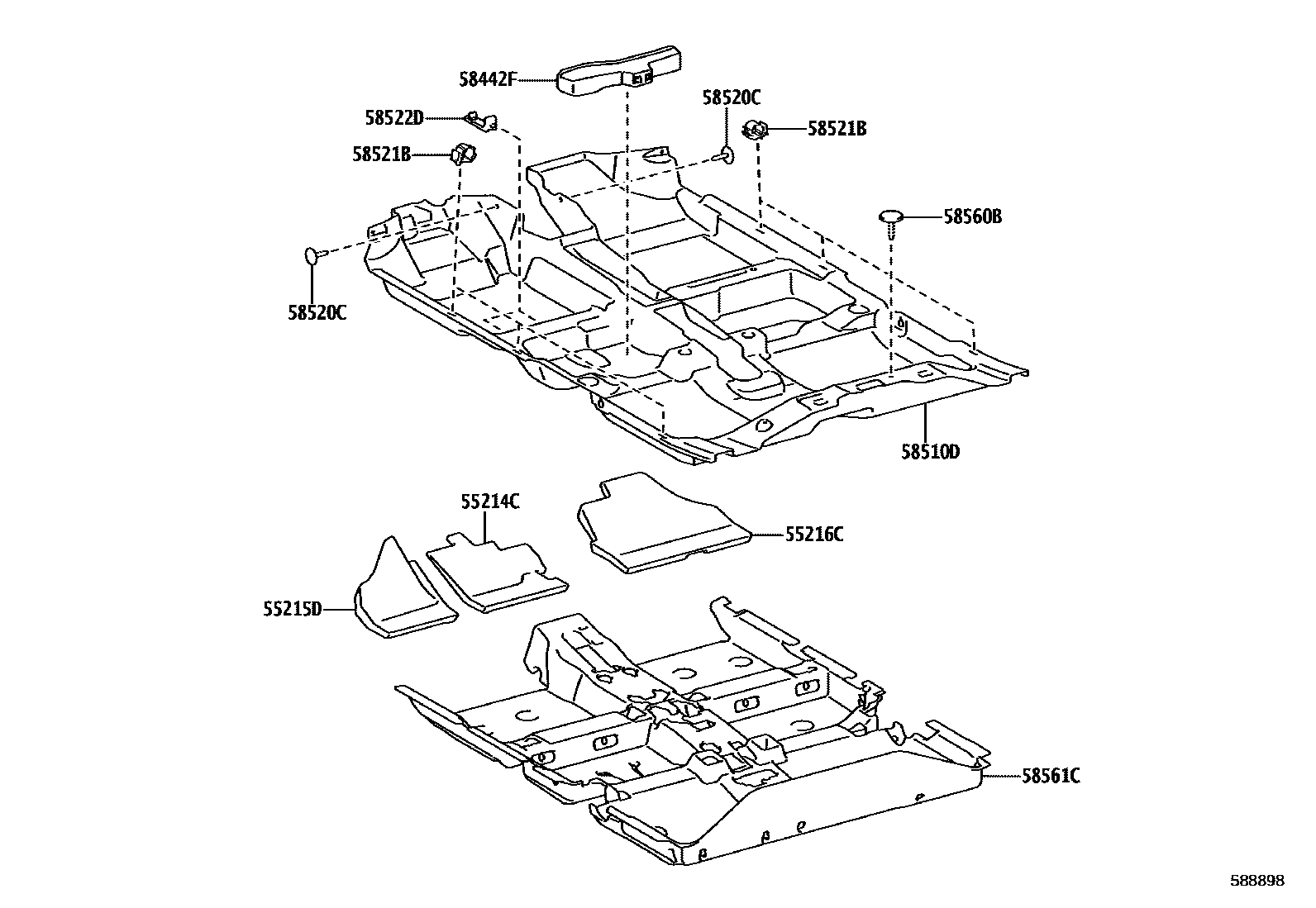

Toyota VIOS/YARIS — MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55216CPAD, DASH PANEL INSULATOR, NO.4
58442FCOVER, JACK
DATA COMMUNICATION MODULE-WITH
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58520CCLIP(FOR FRONT FLOOR CARPET)
IVORY,TRIM0#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58560BCLIP(FOR FLOOR CARPET, REAR)
58561CSILENCER, FRONT FLOOR, NO.1
10 parts on this diagram · 3 diagrams in section
