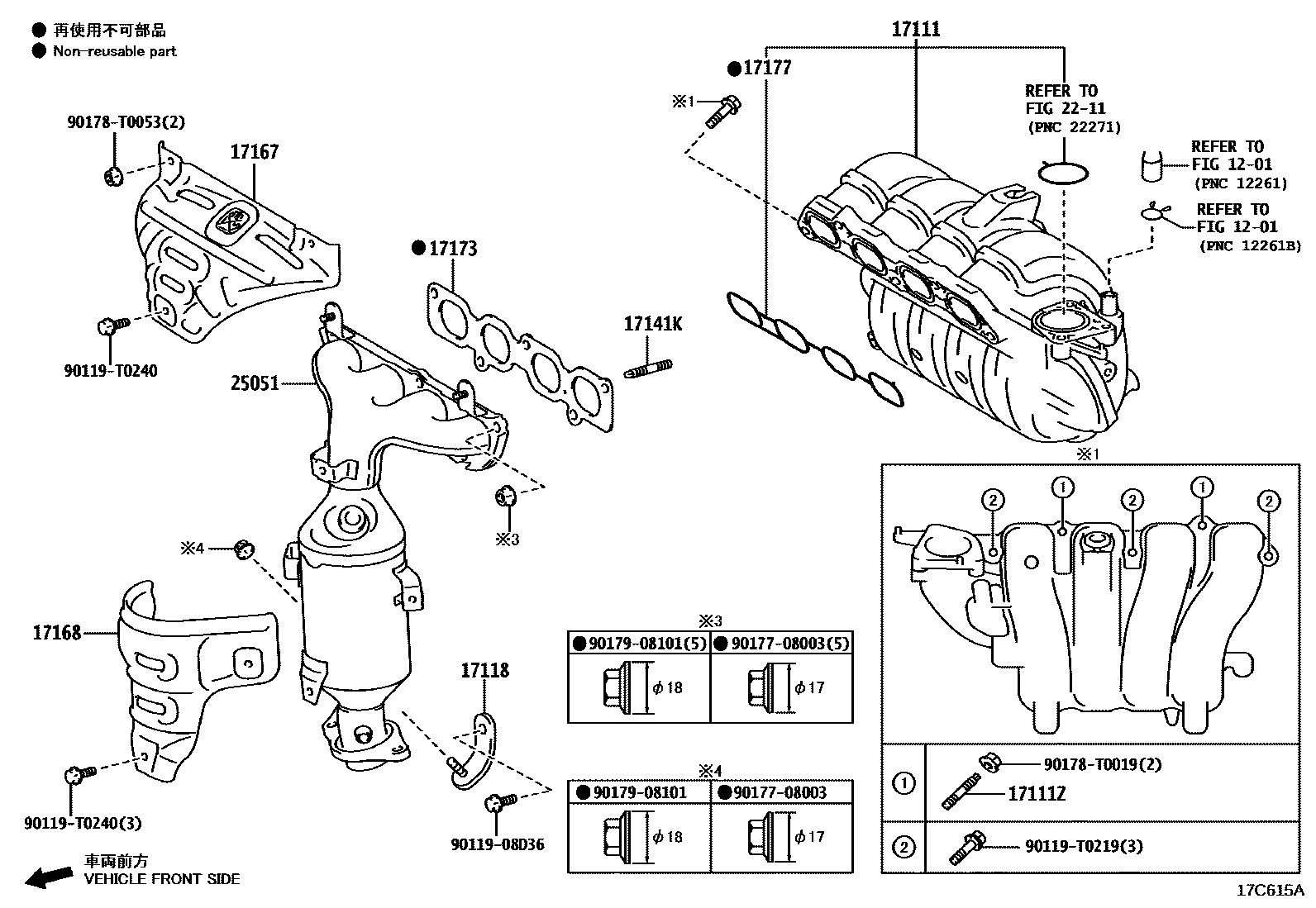

Toyota VIOS/YARIS — MANIFOLD
1201
17111MANIFOLD, INTAKE
*264
*712 OR *432
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
*712 OR *432
*264
17118STAY, MANIFOLD
*264
*712 OR *432
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
*264
*712 OR *432
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*264
*712 OR *432
(L)
(J)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
*264
*712 OR *432
17173GASKET, EXHAUST MANIFOLD TO HEAD
*264
*712 OR *432
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*712 OR *432
*264
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*264
GUATEMALA,*264
ECUADOR,*264
*264
9011908D36
90119T0219
main90119-T0219
90119T0240
main90119-T0240
9017708003
90178T0019
main90178-T0019
90178T0053
main90178-T0053
9017908101
18 parts on this diagram · 2 diagrams in section
