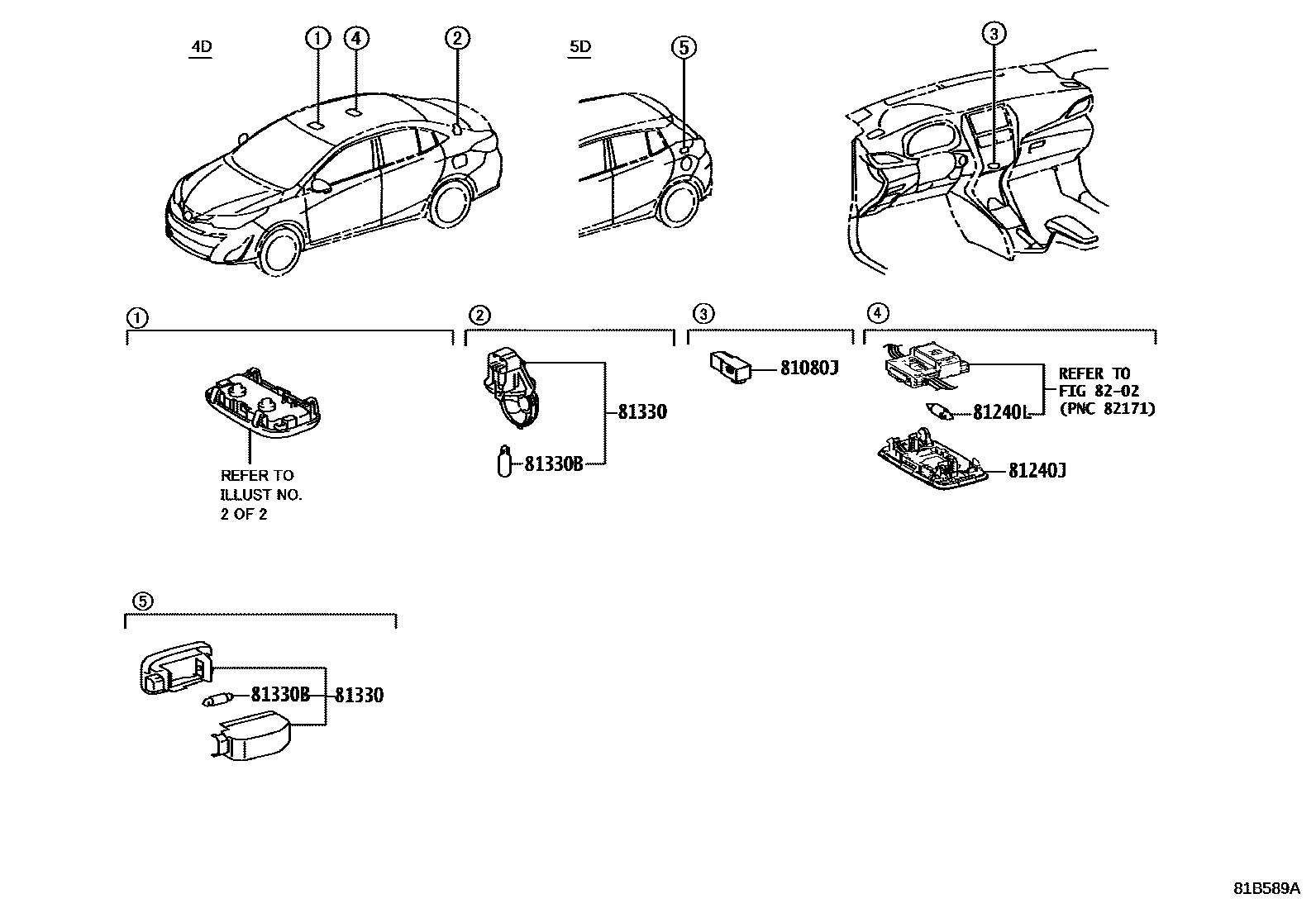

Toyota VIOS/YARIS — INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48020iNSP15#¥770202303

81240JLAMP ASSY, ROOM

main81240-42020-A1iNSP150..PKN;NSP151..4D..CVT;NSP151..5F..PKN202304

IVORY,TRIM0#

main81240-42020-B1iNSP150,151..4D202304

GRAY,TRIM23

main81240-42020-B1iNSP150,151..4D202304

GRAY,TRIM2#

main81240-42020-C0iNSP152202304

BLACK,TRIM23,26

main81240-42020-C0iNSP152202304

BLACK,TRIM0#,23,26

main81240-42020-C0iNSP152202304

BLACK,TRIM0#,23

main81240-42020-C0iNSP152202304

BLACK,TRIM0#,26

main81240-42020-C0iNSP151..MA202305

BLACK,TRIM23,25

main81240-42020-C0iNSP152202303-202304

BLACK,TRIM2#

main81240-42020-C0iNSP152202303-202304

BLACK,TRIM0#,2#

main81240-42020-C0iNSP151..D202303

BLACK,TRIM0#,2#

81240LBULB, ROOM LAMP

main90981-14011iNSP15#¥180202303

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02030iNSP150,151..4D202304

main81330-0D110iNSP15#..5D202303

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNSP150,151..4D¥170202304

12V 3.8W

main99132-13050iNSP15#..5D¥150202303

12V 5W

8202

6 parts on this diagram · 2 diagrams in section
