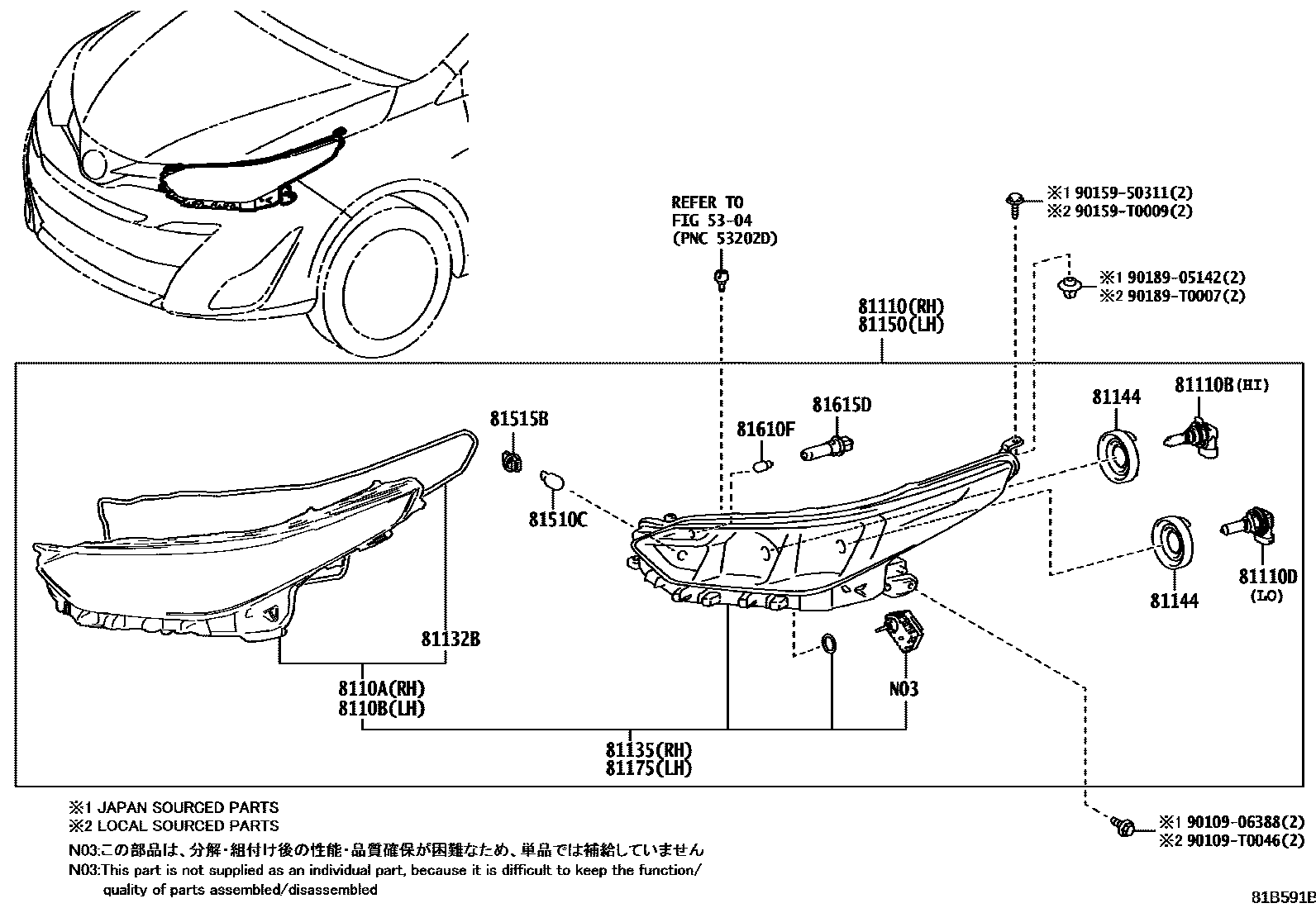

Toyota VIOS/YARIS — HEADLAMP
5304
8110ALENS SUB-ASSY, HEADLAMP, RH
ECUADOR&YP2 PACKAGE
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
8110BLENS SUB-ASSY, HEADLAMP, LH
ECUADOR&YP2 PACKAGE
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
81110HEADLAMP ASSY, RH
YP2 PACKAGE
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
ECUADOR&YP2 PACKAGE
YP2 PACKAGE
YP2 PACKAGE
YP1 PACKAGE
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE),YP1 PACKAGE
12V65W(SAE),60W(ECE)
12V65W(SAE),60W(ECE),ECUADOR&YP2 PACKAGE
12V65W(SAE),60W(ECE),G PACKAGE&YP2 PACKAGE
12V65W(SAE),60W(ECE),YP2 PACKAGE
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
12V 55W,HALOGEN,ECUADOR&YP2 PACKAGE
12V 55W,HALOGEN,G PACKAGE&YP2 PACKAGE
12V 55W,HALOGEN,YP2 PACKAGE
12V 55W,HALOGEN,YP1 PACKAGE
81132BGASKET, HEADLAMP LENS
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
81135UNIT ASSY, HEADLAMP, RH
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
YP2 PACKAGE
ECUADOR&YP2 PACKAGE
YP2 PACKAGE
YP1 PACKAGE
81144COVER, HEADLAMP, NO.1
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
ECUADOR&YP2 PACKAGE
YP1 PACKAGE
81150HEADLAMP ASSY, LH
YP2 PACKAGE
YP2 PACKAGE
G PACKAGE&YP2 PACKAGE
ECUADOR&YP2 PACKAGE
YP2 PACKAGE
YP2 PACKAGE
YP1 PACKAGE
81175UNIT ASSY, HEADLAMP, LH
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
YP2 PACKAGE
ECUADOR&YP2 PACKAGE
YP2 PACKAGE
YP1 PACKAGE
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 21W,AMBER,G PACKAGE&YP2 PACKAGE
12V 21W,AMBER,YP1 PACKAGE
81515BSOCKET, FRONT TURN SIGNAL LAMP
G PACKAGE&YP2 PACKAGE
YP1 PACKAGE
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
12V 5W,ECUADOR&YP2 PACKAGE
12V 5W,G PACKAGE&YP2 PACKAGE
12V 5W,YP2 PACKAGE
81615DSOCKET, CLEARANCE LAMP
ECUADOR&YP2 PACKAGE
G PACKAGE&YP2 PACKAGE
YP2 PACKAGE
9010906388
90109T0046
main90109-T0046
9015950311
90159T0009
main90159-T0009
9018905142
90189T0007
main90189-T0007
21 parts on this diagram · 4 diagrams in section
