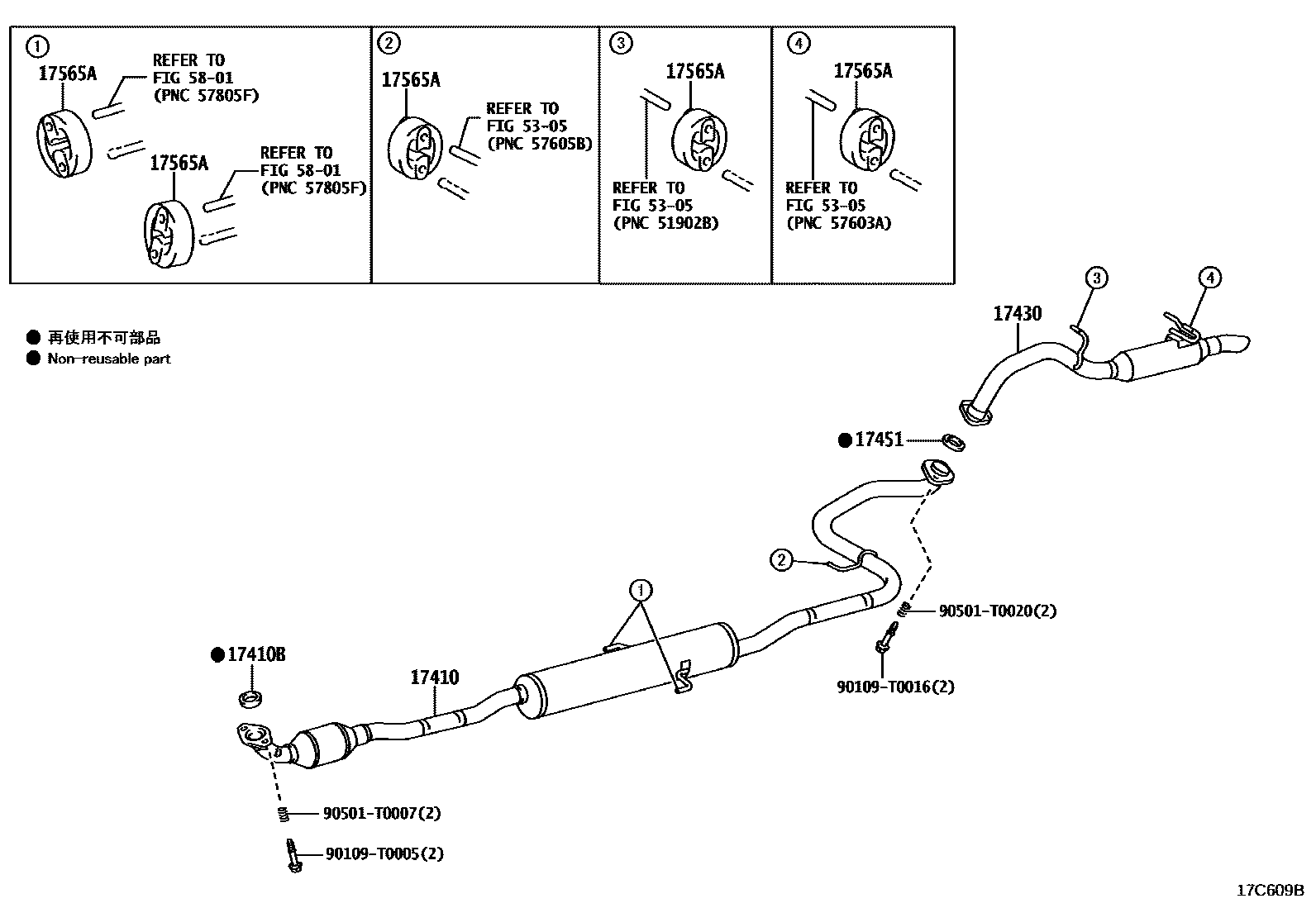

Toyota VIOS/YARIS — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0Y460i3NRFKE..NSP152202303

main17410-0Y481i1NRFE..NSP150..GCC202303-202503

main17410-0Y481i1NRFE..NSP150..GEN202303

GUATEMALA

main17410-0Y481i1NRFE..NSP150..GEN202303

ECUADOR

main17410-0Y491i2NRFE..NSP151..5D..VN202303-202503

main17410-0Y532i2NRFE..NSP151..MA202305

main17410-0YA50i2NRFE..NSP151..4D..VN202304

main17410-0YB10i2NRFE..NSP151..5F..PKN202407-202503

17410BGASKET, EXHAUST PIPE

main17451-0M020i2NRFE..NSP151..5F..PKN;1NRFE,2NRFE..NSP150,151..5D..(GCC,VN)202303-202503

17430PIPE ASSY, EXHAUST, TAIL

main17430-0Y210i1NRFE,2NRFE,3NRFKE..NSP15#..GEN,TH202303

sub17430-0Y520

main17430-0Y480i2NRFE..NSP151..MA202305

main17430-0Y490i2NRFE..NSP151..5F..PKN202407-202503

main17430-0Y520i1NRFE,2NRFE..NSP150,151..5D..(GCC,VN)202303-202503

main17430-0Y540i2NRFE..NSP151..4D..VN202304

17451GASKET, EXHAUST PIPE

main17451-0M032i2NRFE..NSP151..5F..PKN;1NRFE,2NRFE..NSP150,151..5D..(GCC,VN)202303-202503

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0M030i1NRFE,2NRFE..NSP150,151..5D..(GCC,VN)202303-202503

5305

5801

90109T0005

main90109-T0005¥190

90109T0016

main90109-T0016

90501T0007

main90501-T0007¥200

90501T0020

main90501-T0020

11 parts on this diagram · 2 diagrams in section
