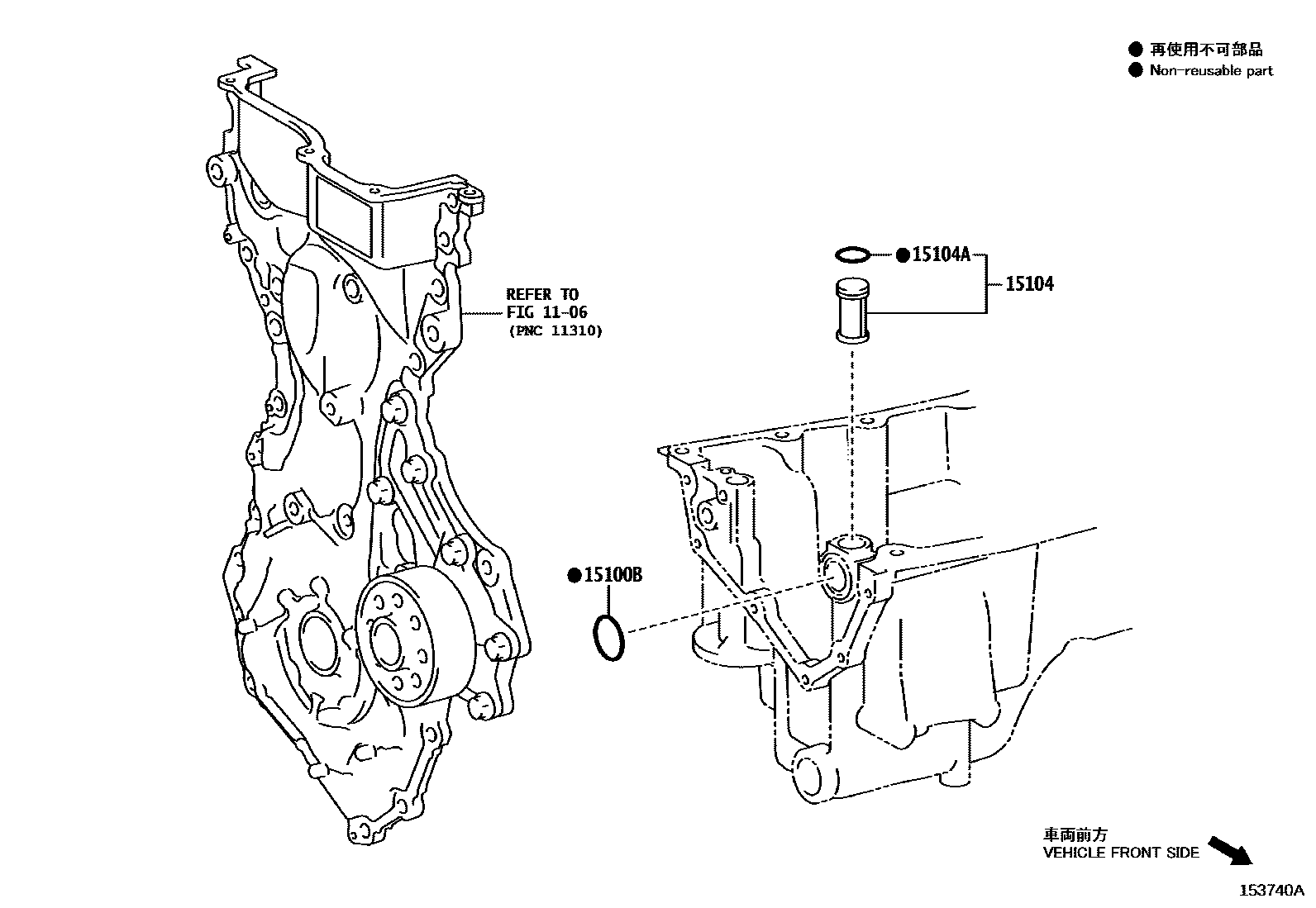

Toyota VIOS/YARIS — ENGINE OIL PUMP

1106

15100BRING, O(FOR OIL PUMP)

main90301-T0058i1NRFE,2NRFE,3NRFKE..NSP15#..5D..(GCC,GEN,TH,VN)202303

*712 OR *432

main90301-T0059i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main90301-T0059i1NRFE,2NRFE..NSP150,151..RHD202305

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main15104-0Y010i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main15104-0Y010i1NRFE,2NRFE..NSP150,151..RHD202305

15104ARING, O(FOR OIL STRAINER)

main90301-T0061i1NRFE,2NRFE..NSP150,151..LHD202303

*264

main90301-T0061i1NRFE,2NRFE..NSP150,151..LHD202303

*712 OR *432

main90301-T0061i1NRFE,2NRFE..NSP150,151..RHD202305

4 parts on this diagram · 1 diagram in section
