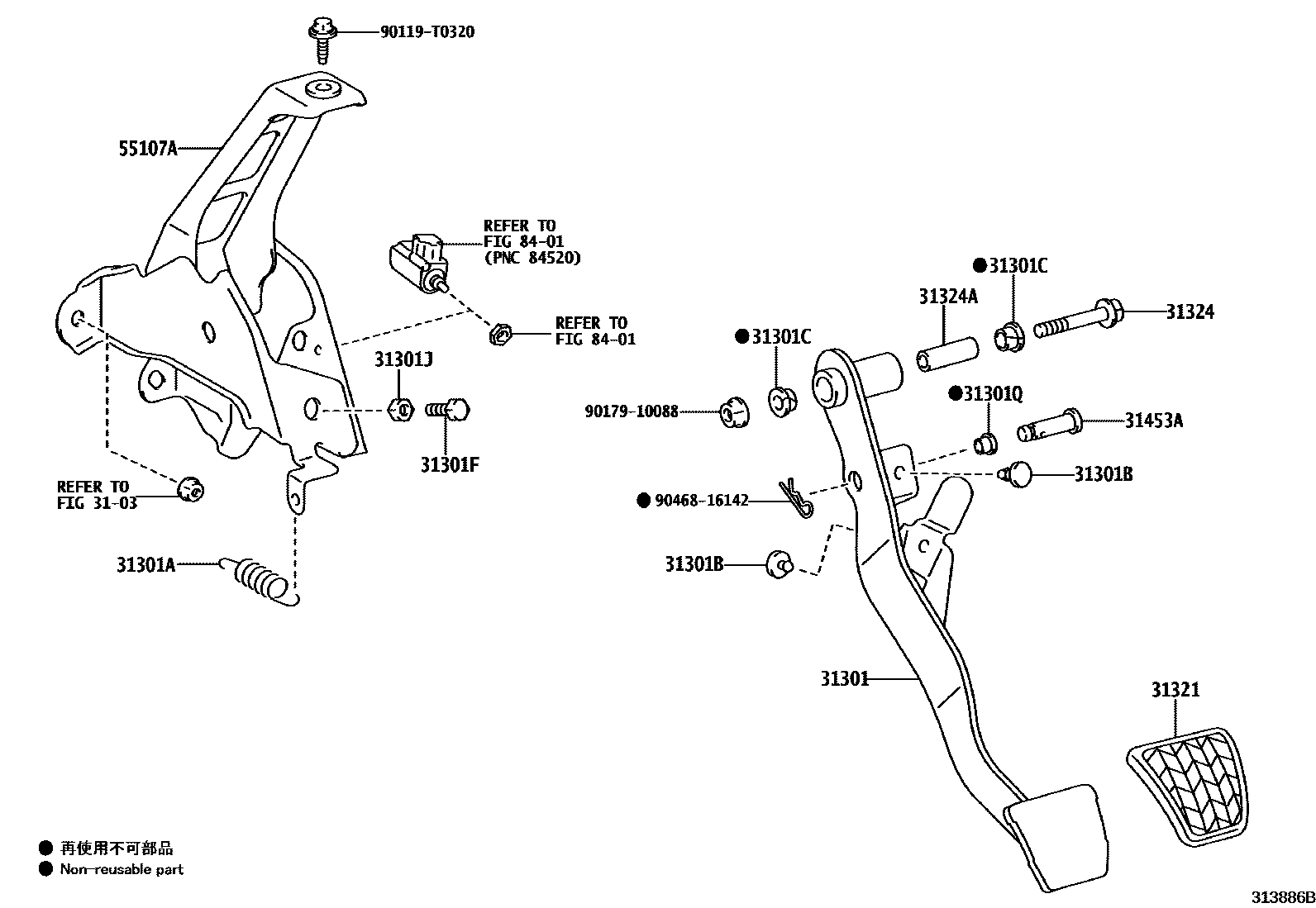

Toyota VIOS/YARIS — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

3103

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D220iNSP150,151..5F..R202303

main31301-0D390iNSP150,151..5F..PKN202407

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14018iNSP150,151..5F..R¥130202303

main90507-14055iNSP150,151..5F..PKN¥120202407

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNSP150,151..5F..R¥110202303

main90541-06036iNSP150,151..5F..PKN¥110202407

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNSP150,151..5F¥120202303

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNSP150,151..5F..R¥110202303

main91112-61025iNSP150,151..5F..PKN¥80202407

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNSP150,151..5F¥100202303

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-08002iNSP150,151..5F¥240202303

31321PAD, CLUTCH PEDAL

main31321-0D060iNSP150,151..5F..PKN202407

main31321-0D070iNSP150,151..5F..R202303

(L)

main31321-52010iNSP150,151..5F..R¥200202303

(J)

31324SHAFT, CLUTCH PEDAL

main90101-10081iNSP150,151..5F..R¥230202303

main90105-10444iNSP150,151..5F..PKN¥160202407

(J)

main90105-T0089iNSP150,151..5F..PKN202407

(L)

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNSP150,151..5F..PKN¥370202407

main90387-10004iNSP150,151..5F..R¥210202303

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP150,151..5F¥170202303

L=31.5

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D270iNSP150,151..5F..R202303

main55107-0D440iNSP150,151..5F..PKN202407

8401

90119T0320

main90119-T0320

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

17 parts on this diagram · 4 diagrams in section
