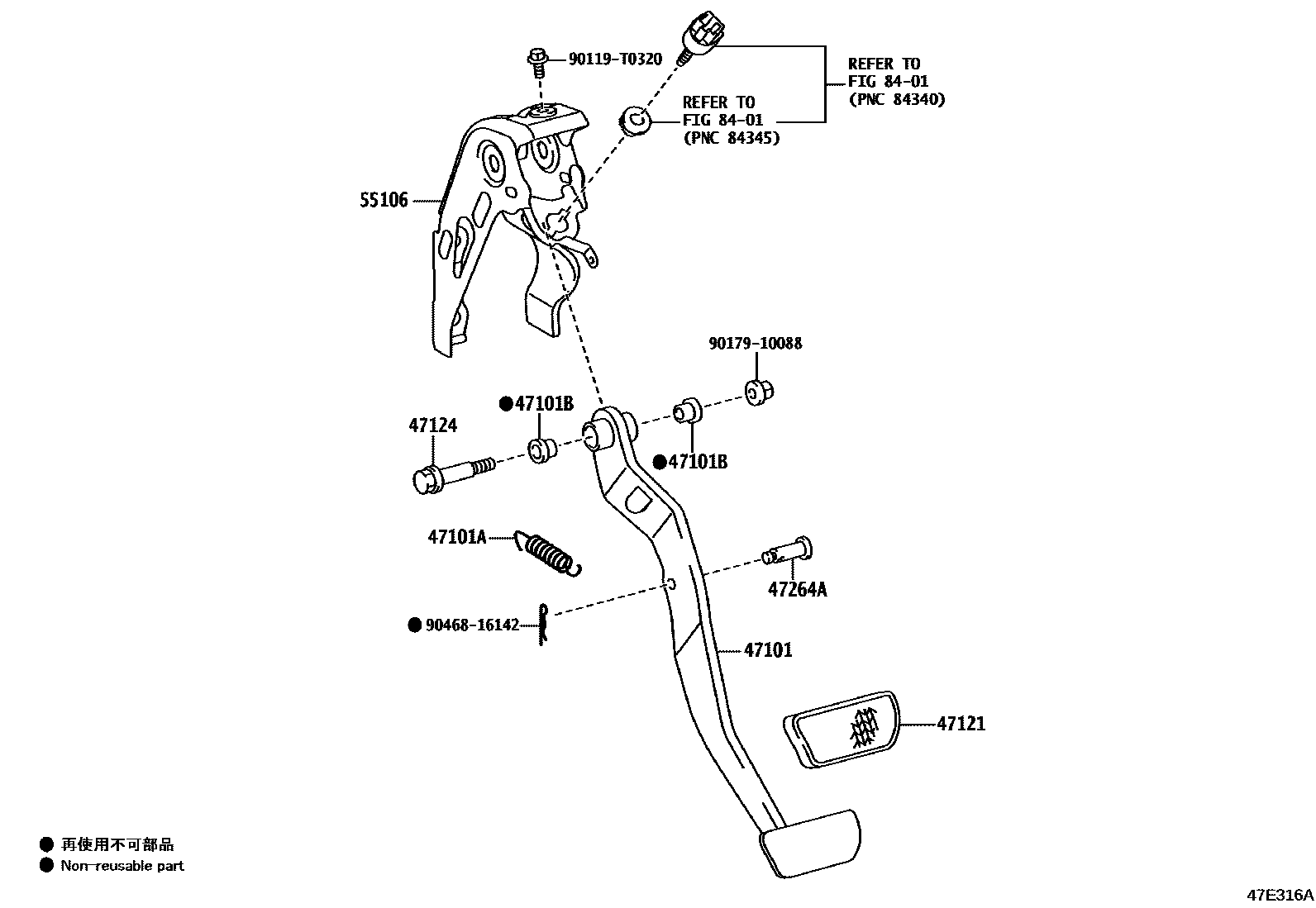

Toyota VIOS/YARIS — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-0D330iNSP150,151..5F..GEN202303

main47101-0D340iNSP150,151..LHD..5D..CVT202303

main47101-0D360iNSP151,152..RHD..5D202303

main47101-0D380iNSP151..5F..VN202304

main47101-0D390iNSP151..4D..CVT..VN202304

main47101-0D610iNSP150,151..CVT..PKN202407

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-T0015iNSP15#202303

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP15#..CVT;NSP150,151..5F..R¥120202303

47121PAD, BRAKE PEDAL

main31321-0D060iNSP150,151..5F..PKN202407

main31321-0D070iNSP150,151..5F..GEN202303

(L)

main31321-52010iNSP150,151..5F..GEN¥200202303

(J)

main31321-52010iNSP151..5F..VN¥200202304

main47121-0D060iNSP150,151..CVT..PKN202407

main47121-0D070iNSP15#..5D..CVT202303

(L)

main47121-52010iNSP15#..5D..CVT¥260202303

(J)

main47121-52010iNSP151..4D..CVT..VN¥260202304

47124SHAFT, BRAKE PEDAL

main90109-10167iNSP151..4D..VN¥190202304

main90109-10167iNSP150,151..CVT..PKN¥190202407

(J)

main90109-T0044iNSP15#..5D202303

main90109-T0044iNSP150,151..CVT..PKN202407

(L)

47264APIN(FOR PUSH ROD)

main90249-08051iNSP15#¥170202303

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D170iNSP150,151..LHD..5D202303

main55106-0D180iNSP151,152..RHD..5D202303

main55106-0D220iNSP151..4D..VN202304

main55106-0D250iNSP150,151..CVT..PKN202407

8401

90119T0320

main90119-T0320

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 3 diagrams in section
