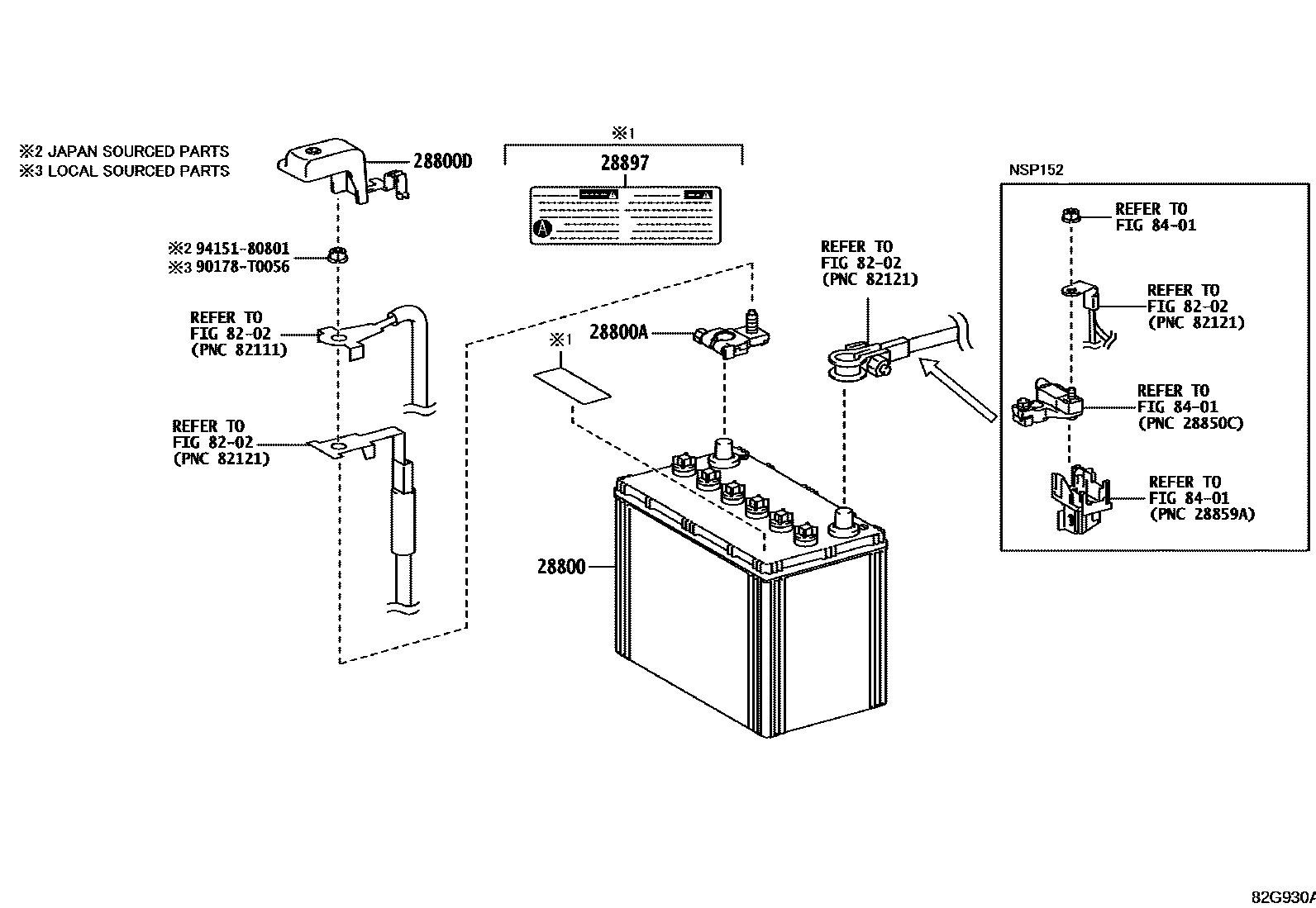

Toyota VIOS/YARIS — BATTERY & BATTERY CABLE

28800BATTERY

main28800-0D412i1NRFE..NSP150..CVT..PKN202407

46C24L

main28800-0M061i1NRFE..NSP150..CVT..GEN202303

46B24L(S)

main28800-0M152i1NRFE..NSP150..5F;2NRFE..NSP151..LHD..5D202303-202402

34B19L(S)

sub28800-0M153

main28800-0M153i1NRFE..NSP150..5F..GEN;2NRFE..NSP151..LHD..5D202403

34B19L(S)

main28800-0Y151i3NRFKE..NSP152202303

Q-85

main28800-0Y162i1NRFE..NSP150..GCC202303

46B24L(S)

main28800-0Y261i2NRFE..NSP151..PKN;1NRFE..NSP150..5F..PKN202407

34B19L

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i1NRFE..NSP150..CVT;1NRFE..NSP150..5F..GEN;2NRFE,3NRFKE..NSP151,152..GEN,MA,TH,VN¥850202303

main90982-05063i2NRFE..NSP151..PKN;1NRFE..NSP150..5F..PKN¥930202407

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i1NRFE,2NRFE,3NRFKE..NSP15#¥570202303

28897PLATE, BATTERY CAUTION

main28897-36030i1NRFE..NSP150..GCC¥110202303

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801¥80

8 parts on this diagram · 1 diagram in section
