E
EPC Data

Toyota VIOS/YARIS — ARMREST & VISOR

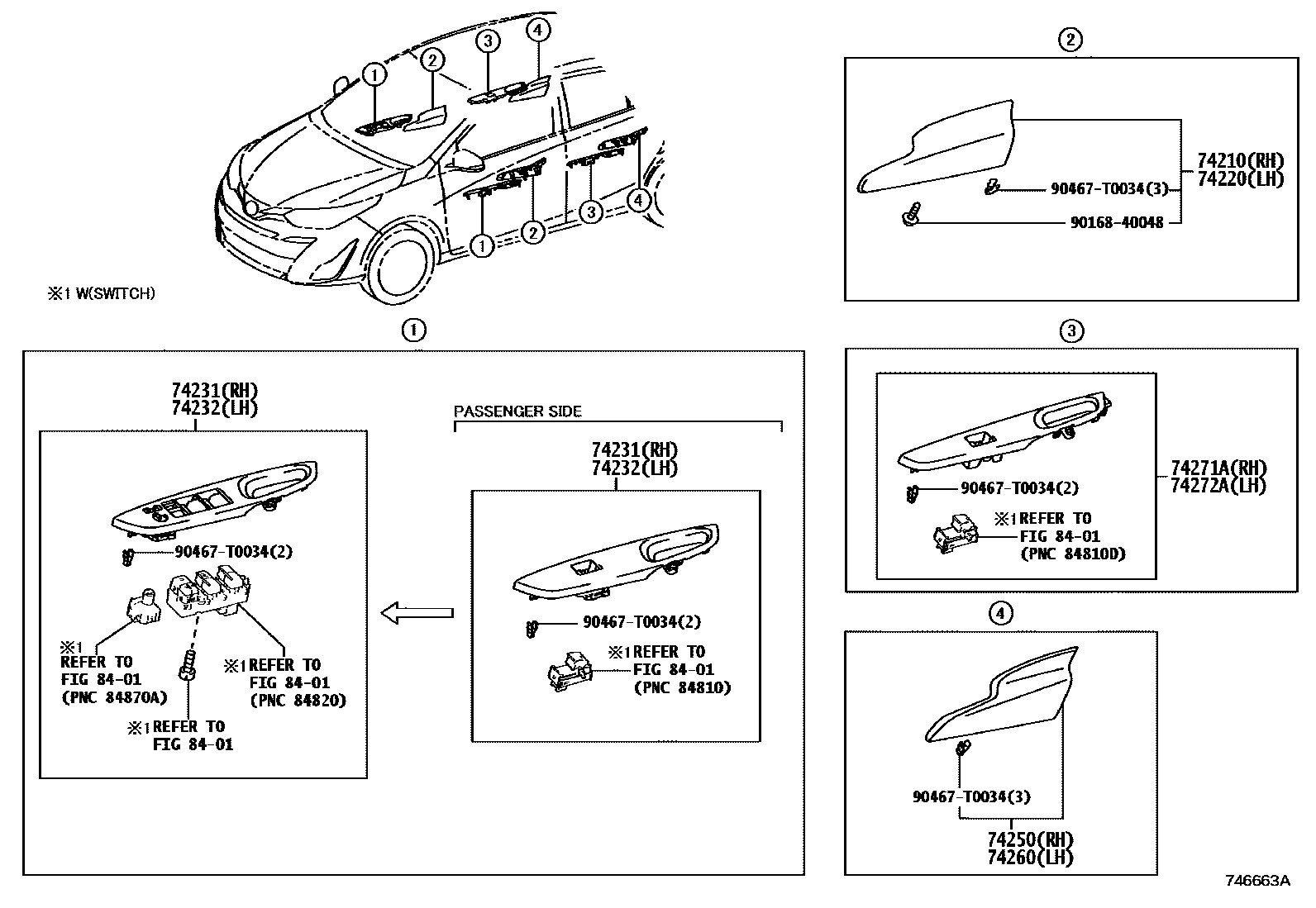

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-0D050-A0i202303
IVORY,TRIM0#
main74210-0D050-C0i202303
ECO PACKAGE,BLACK,TRIM2#
main74210-0D050-C0i202303
BLACK,TRIM2#
main74210-0D060-A0i202303
IVORY/CAMEL STITCH,TRIM0#
main74210-0D060-A1i202303
-,TRIM2#
main74210-0D060-A1i202303
G PACKAGE,-,TRIM23
main74210-0D060-C2i202303
E-SPORT PACKAGE(GRADE MARK(S)),BLACK/BLUE,TRIM26
main74210-0D060-C2i202303
BLACK/BLUE,TRIM26
main74210-0D060-C4i202303
BLACK,TRIM23
main74210-0D060-C4i202303
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM23
main74210-0D060-C4i202304
BLACK,TRIM2#
main74210-0D120-C2i202305
BLACK,TRIM25
main74210-0D120-C5i202305
BLACK,TRIM23
main74210-0D240-C0i202305
BLACK,TRIM2#
main74210-0D320-A0i202407
IVORY,TRIM0#
74220ARMREST ASSY, FRONT, LH
main74220-0D050-A0i202303
IVORY,TRIM0#
main74220-0D050-C0i202303
BLACK,TRIM2#
main74220-0D050-C0i202303
ECO PACKAGE,BLACK,TRIM2#
main74220-0D060-A0i202303
IVORY/CAMEL STITCH,TRIM0#
main74220-0D060-A1i202303
-,TRIM2#
main74220-0D060-A1i202303
G PACKAGE,-,TRIM23
main74220-0D060-C2i202303
E-SPORT PACKAGE(GRADE MARK(S)),BLACK/BLUE,TRIM26
main74220-0D060-C2i202303
BLACK/BLUE,TRIM26
main74220-0D060-C4i202303
E-SPORT PACKAGE(GRADE MARK(S)),BLACK,TRIM23
main74220-0D060-C4i202303
BLACK,TRIM23
main74220-0D060-C4i202304
BLACK,TRIM2#
main74220-0D120-C2i202305
BLACK,TRIM25
main74220-0D120-C5i202305
BLACK,TRIM23
main74220-0D240-C0i202305
BLACK,TRIM2#
main74220-0D320-A0i202407
IVORY,TRIM0#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0D770i202407
main74231-0DA60i202303
main74231-0DA70i202303
main74231-0DA80i202303
E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE
main74231-0DB30i202305
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0D750i202407
main74232-0DA50i202303
main74232-0DB00i202303
main74232-0DB10i202304
main74232-0DB30i202303
E-SPORT PACKAGE(GRADE MARK(S))&YP2 PACKAGE
main74232-0DB70i202305
74250ARMREST ASSY, REAR RH
main74250-0D020-A1i202303
IVORY,TRIM0#
main74250-0D020-C1i202303
BLACK,TRIM2#
main74250-0D040-A0i202303
IVORY/CAMEL STITCH,TRIM0#
main74250-0D040-A1i202303
-,TRIM2#
main74250-0D040-A1i202303
G PACKAGE,-,TRIM23
main74250-0D040-C4i202304
BLACK,TRIM2#
main74250-0D110-C2i202305
BLACK,TRIM25
main74250-0D110-C5i202305
BLACK,TRIM23
main74250-0D230-C0i202305
BLACK,TRIM2#
main74250-0D290-A0i202407
IVORY,TRIM0#
74260ARMREST ASSY, REAR LH
main74260-0D020-A1i202303
IVORY,TRIM0#
main74260-0D020-C1i202303
BLACK,TRIM2#
main74260-0D040-A0i202303
IVORY/CAMEL STITCH,TRIM0#
main74260-0D040-A1i202303
-,TRIM2#
main74260-0D040-A1i202303
G PACKAGE,-,TRIM23
main74260-0D040-C4i202304
BLACK,TRIM2#
main74260-0D110-C2i202305
BLACK,TRIM25
main74260-0D110-C5i202305
BLACK,TRIM23
main74260-0D230-C0i202305
BLACK,TRIM2#
main74260-0D290-A0i202407
IVORY,TRIM0#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0D320i202303
ECO PACKAGE
main74271-0D370i202407
main74271-0D540i202303
E-SPORT PACKAGE(GRADE MARK(S))
main74271-0D580i202305
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0D320i202303
ECO PACKAGE
main74272-0D370i202407
main74272-0D540i202303
E-SPORT PACKAGE(GRADE MARK(S))
main74272-0D580i202305
8401
9016840048
main90168-40048¥60
90467T0034
main90467-T0034

11 parts on this diagram · 2 diagrams in section
