Toyota VIOS/YARIS — ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 80A

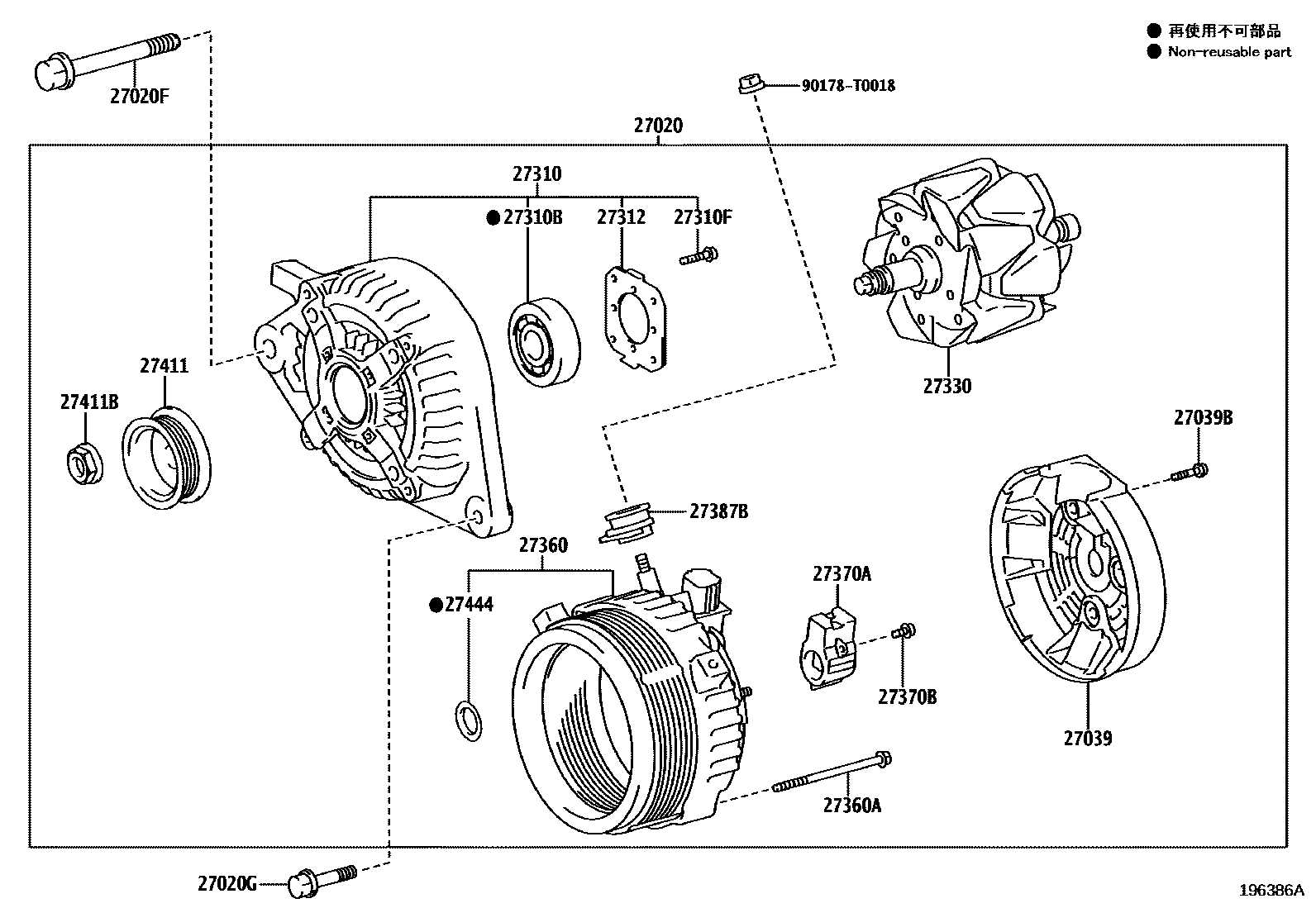

27020ALTERNATOR ASSY

main27060-0Y240i1NRFE,2NRFE..NSP150,151..PKN202407

12V 80A

main27060-0Y300i1NRFE,2NRFE..NSP150,151..LHD202303

12V 80A

main27060-0Y320i2NRFE..NSP151..MA202305

12V 80A

main27060-0Y410i3NRFKE..NSP152202303

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-T0172i1NRFE,2NRFE,3NRFKE..NSP15#202303

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-T0130i1NRFE,2NRFE,3NRFKE..NSP15#202303

27039COVER, ALTERNATOR REAR END

main27039-0M100i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main27039-0Y200i3NRFKE..NSP152202303

27039BBOLT(FOR ALTERNATOR REAR END COVER)

main90068-04046i3NRFKE..NSP152202303

main90068-04047i1NRFE,2NRFE..NSP150,151..LHD202303

main90099-04628i2NRFE..NSP151..MA¥0202305

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0Y180i2NRFE..NSP151..MA202305

main27310-0Y190i1NRFE,2NRFE..NSP150,151..LHD202303

main27310-0Y380i3NRFKE..NSP152202303

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10029i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main90068-10033i3NRFKE..NSP152202309

main90068-10050i3NRFKE..NSP152202303-202309

sub90068-10033

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,TH,VN202303

main90099-00268i2NRFE..NSP151..MA¥0202305

27312PLATE, RETAINER

main27312-0C020i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

27330ROTOR ASSY, ALTERNATOR

main27330-0M100i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main27330-0V220i3NRFKE..NSP152202303

27360COIL ASSY, ALTERNATOR

main27360-0Y280i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main27360-0Y380i3NRFKE..NSP152202303

27360ABOLT(FOR ALTERNATOR COIL)

main90068-04048i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,TH,VN202303

main90099-04626i2NRFE..NSP151..MA¥0202305

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0M040i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,TH,VN202303

main27370-31220i2NRFE..NSP151..MA¥0202305

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90068-00023i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,TH,VN202303

main90099-00197i2NRFE..NSP151..MA202305

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0C020i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

27411PULLEY, ALTERNATOR

main27411-0D200i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

27411BNUT(FOR ALTERNATOR PULLEY)

main90068-05009i1NRFE,2NRFE..NSP150,151..LHD202303

main90099-05171i2NRFE..NSP151..MA202305

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

90178T0018

main90178-T0018¥70

19 parts on this diagram · 3 diagrams in section
