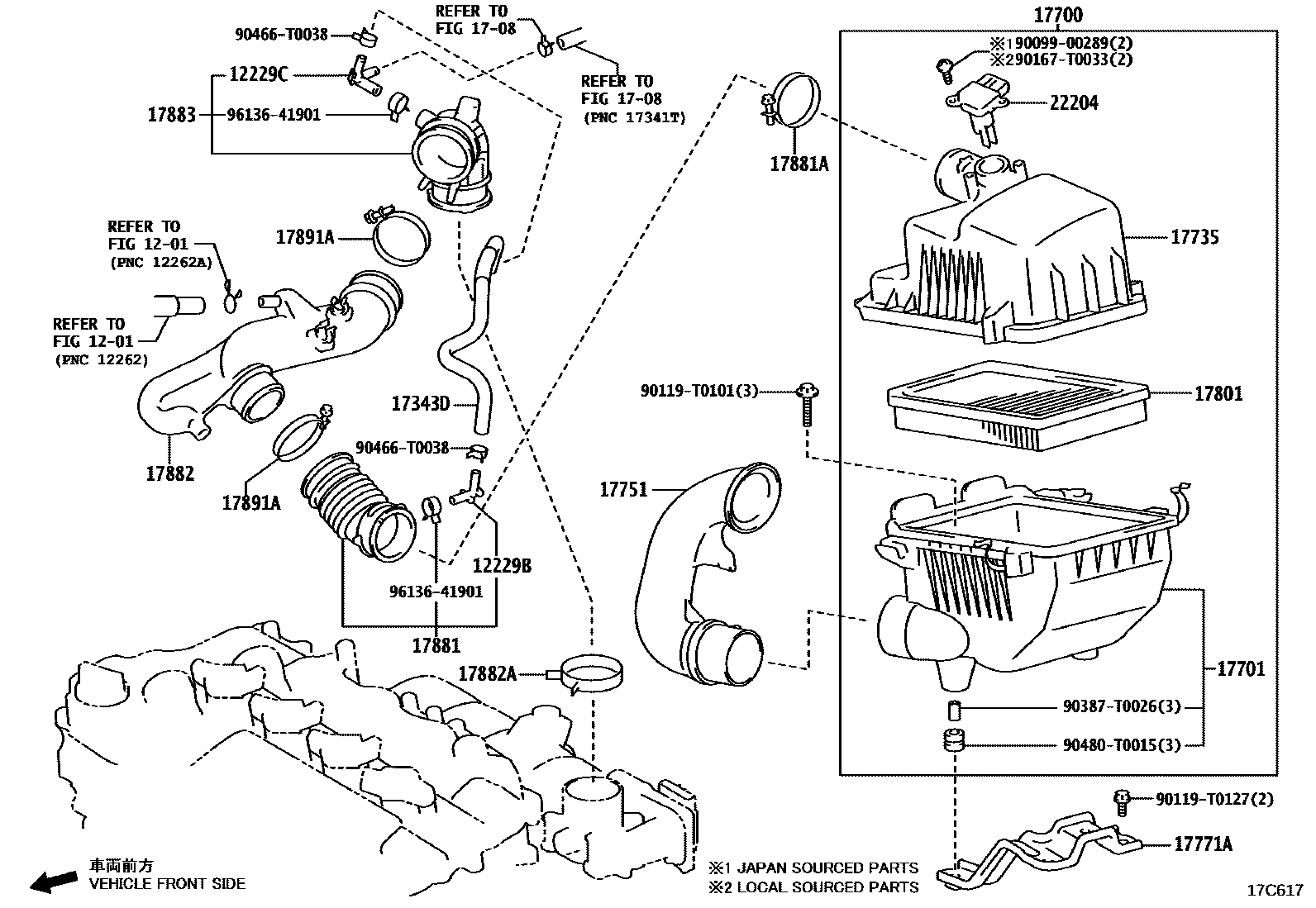

Toyota VIOS/YARIS — AIR CLEANER

0001 1 0002 1 0003 1

1201

12229BPIPE, VENTILATION, NO.1

main12229-0Y100i1NRFE,2NRFE..NSP150,151..CVT202303

12229CPIPE, VENTILATION, NO.2

main12229-0Y150i1NRFE,2NRFE..NSP150,151..CVT202303

1708

17343DHOSE, AIR, NO.3

main17343-0Y011i1NRFE,2NRFE..NSP150,151..CVT202303

17700CLEANER ASSY, AIR

main17700-0Y190i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

main17700-0Y370i1NRFE,2NRFE..NSP150,151..PKN202407

17701CASE SUB-ASSY, AIR CLEANER

main17701-0M070i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

main17701-0Y270i1NRFE,2NRFE..NSP150,151..PKN202407

17735CAP, AIR CLEANER

main17735-0Y130i1NRFE,2NRFE..NSP150,151..PKN202407

main17735-0Y140i1NRFE,2NRFE,3NRFKE..NSP15#..GCC,GEN,MA,TH,VN202303

17751INLET, AIR CLEANER, NO.1

main17751-0Y261i1NRFE,2NRFE..NSP150,151..GCC,GEN,MA,VN202303

main17751-0Y320i1NRFE,2NRFE..NSP150,151..PKN202407

main17751-0Y330i3NRFKE..NSP152202303

17771ABRACKET, AIR CLEANER

main17771-0Y080i1NRFE,2NRFE,3NRFKE..NSP15#202303

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0Y040i1NRFE,2NRFE,3NRFKE..NSP15#202303

17881HOSE, AIR CLEANER, NO.1

main17881-0Y160i3NRFKE..NSP152;1NRFE,2NRFE..NSP150,151..5F202303

main17881-0Y240i1NRFE,2NRFE..NSP150,151..CVT202303

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0017i1NRFE,2NRFE,3NRFKE..NSP15#202303

(L)

main96111-10690i1NRFE,2NRFE,3NRFKE..NSP15#¥160202303

(J)

17882HOSE, AIR CLEANER, NO.2

main17882-0Y130i1NRFE,2NRFE..NSP150,151..5F202303

main17882-0Y140i1NRFE,2NRFE..NSP150,151..CVT202303

main17882-0Y240i3NRFKE..NSP152202303

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i3NRFKE..NSP152¥320202303

main90466-62002i1NRFE,2NRFE..NSP150,151¥320202303

17883HOSE, AIR CLEANER, NO.3

main17883-0Y031i1NRFE,2NRFE..NSP150,151..5F202303

main17883-0Y041i1NRFE,2NRFE..NSP150,151..CVT202303

main17883-0Y190i3NRFKE..NSP152202303

17891ACLAMP, AIR CLEANER HOSE

main96111-10730i1NRFE,2NRFE,3NRFKE..NSP15#¥160202303

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V020i1NRFE,2NRFE,3NRFKE..NSP15#¥16,500202303

9009900289

main90099-00289¥60

90119T0101

main90119-T0101¥80

90119T0127

main90119-T0127

90167T0033

main90167-T0033

90387T0026

main90387-T0026¥100

90466T0038

main90466-T0038

90480T0015

main90480-T0015¥130

9613641901

main96136-41901¥120

26 parts on this diagram · 3 diagrams in section
