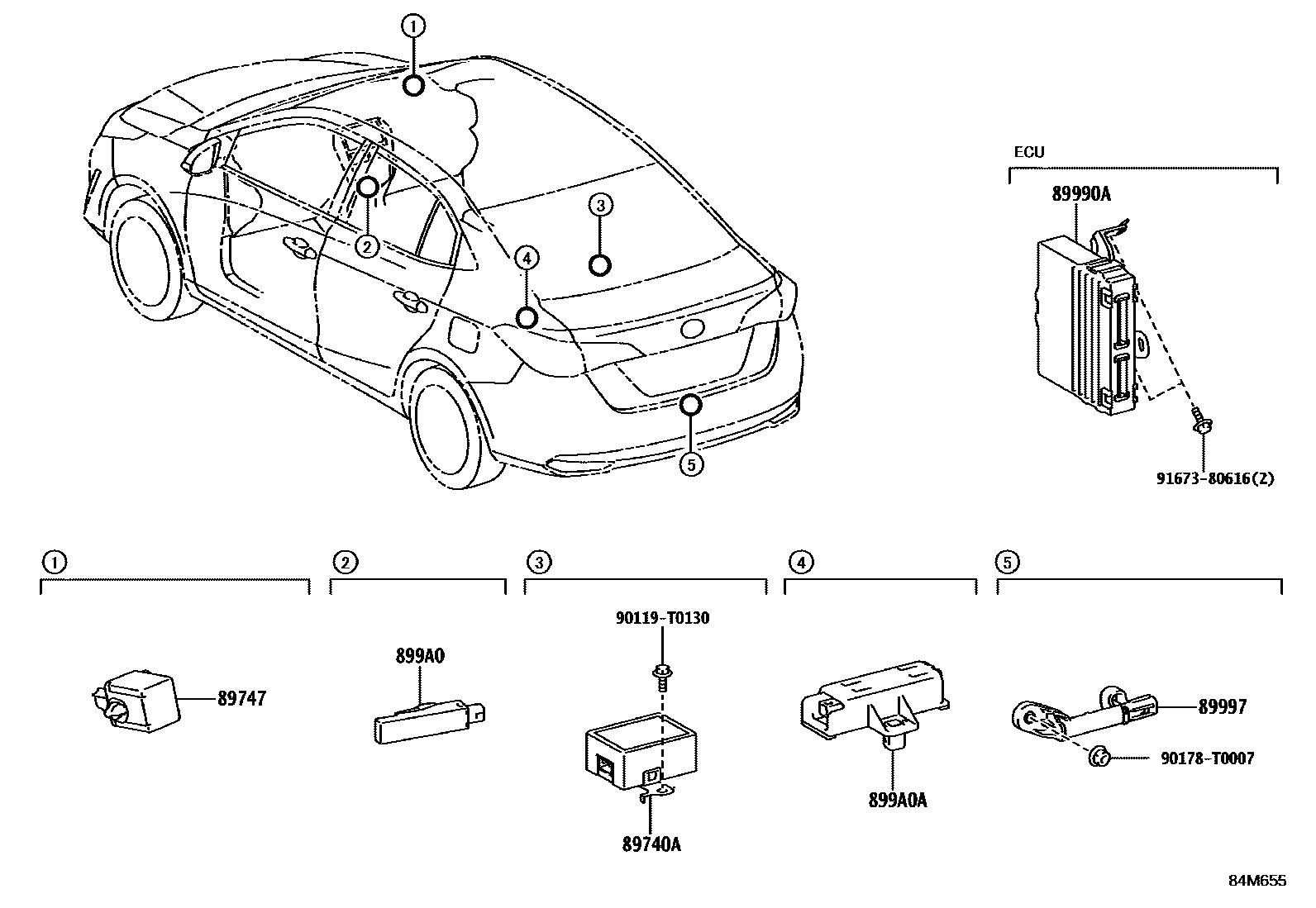

Toyota VIOS/YARIS — WIRELESS DOOR LOCK

0001 1 0002 1

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-0D350iNSP151..SED202012

main89740-0D380iNSP151..HB202012

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNSP151¥2,900202012

89990ACOMPUTER ASSY, SMART KEY

main89990-0D240iNSP151..SED202012

main89990-0D370iNSP151..HB202012

89997ANTENNA, ELECTRICAL KEY

main89997-30100iNSP151¥1,800202012

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0D170iNSP151¥1,410202012

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0D100iNSP151202012

90119T0130

main90119-T0130

90178T0007

main90178-T0007¥80

9167380616

main91673-80616¥60

9 parts on this diagram · 2 diagrams in section
