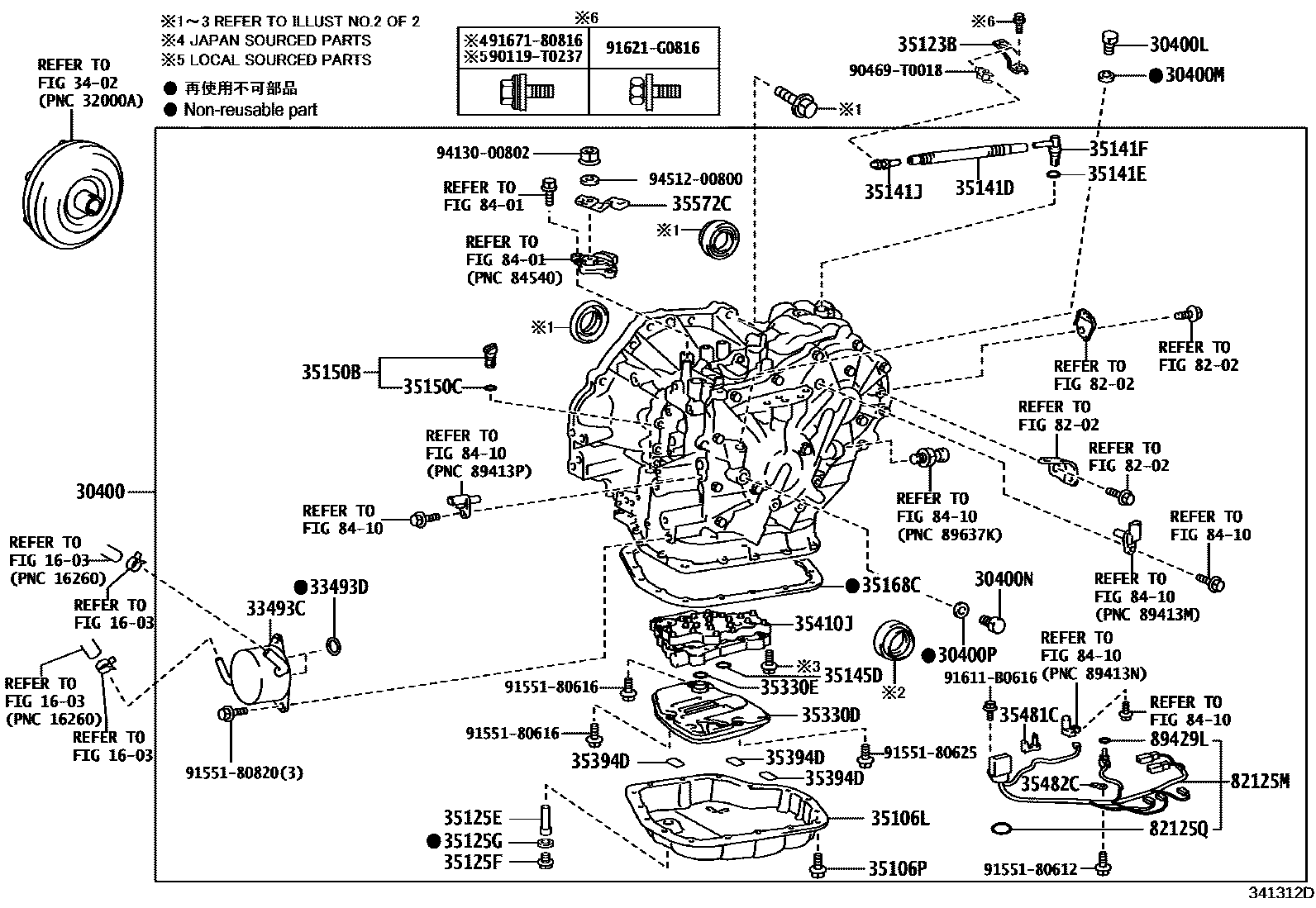

Toyota VIOS/YARIS — TRANSAXLE ASSY(CVT)

0001 1K312 0002 1K312

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52450iNSP151..CVT202012

K312

30400LPLUG , FILLER(CVT)

main90341-12025iNSP151..CVT¥190202012

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNSP151..CVT¥200202012

30400NPLUG, REFILL(CVT)

main90341-18077iNSP151..CVT¥190202012

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP151..CVT¥110202012

33493CCOOLER, TRANSMISSION OIL

main33493-20100iNSP151..CVT¥11,900202012

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNSP151..CVT¥170202012

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iNSP151..CVT¥3,590202012

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNSP151..CVT¥80202012

35123BSKIRT,TRANSMISSION BREATHER

main35123-0D060iNSP151..CVT202012

35125ETUBE, OVERFLOW(CVT)

main35125-12440iNSP151..CVT¥130202012

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP151..CVT¥190202012

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP151..CVT¥90202012

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iNSP151..CVT¥590202012

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iNSP151..CVT¥140202012

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03191iNSP151..CVT¥260202012

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03149iNSP151..CVT¥220202012

35145DGASKET, TRANSAXLE CASE

main35145-33010iNSP151..CVT¥360202012

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNSP151..CVT¥280202012

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNSP151..CVT¥140202012

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNSP151..CVT¥370202012

35330DSTRAINER ASSY, OIL

main35330-12050iNSP151..CVT¥4,480202012

35330ERING, O (FOR OIL STRAINER)

main90301-22019iNSP151..CVT¥130202012

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iNSP151..CVT¥360202012-202101

main35394-48010iNSP151..CVT¥280202102

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12871iNSP151..CVT¥53,700202012

35481CCLAMP, VALVE BODY WIRE HARNESS

main35481-12030iNSP151..CVT¥140202012

35482CCLAMP, TEMPERATURE SENSOR

main35482-73010iNSP151..CVT¥170202012

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNSP151..CVT¥390202012

8202

82125MWIRE, TRANSMISSION

main82125-12642iNSP151..CVT¥1,790202012

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNSP151..CVT¥170202012

8401

8410

89429LRING, O(FOR OIL TEMPERATURE SENSOR)

main90301-06004iNSP151..CVT¥120202012

90119T0237

main90119-T0237

90469T0018

main90469-T0018

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

91611B0616

main91611-B0616¥110

91621G0816

main91621-G0816¥140

9167180816

main91671-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

47 parts on this diagram · 2 diagrams in section
