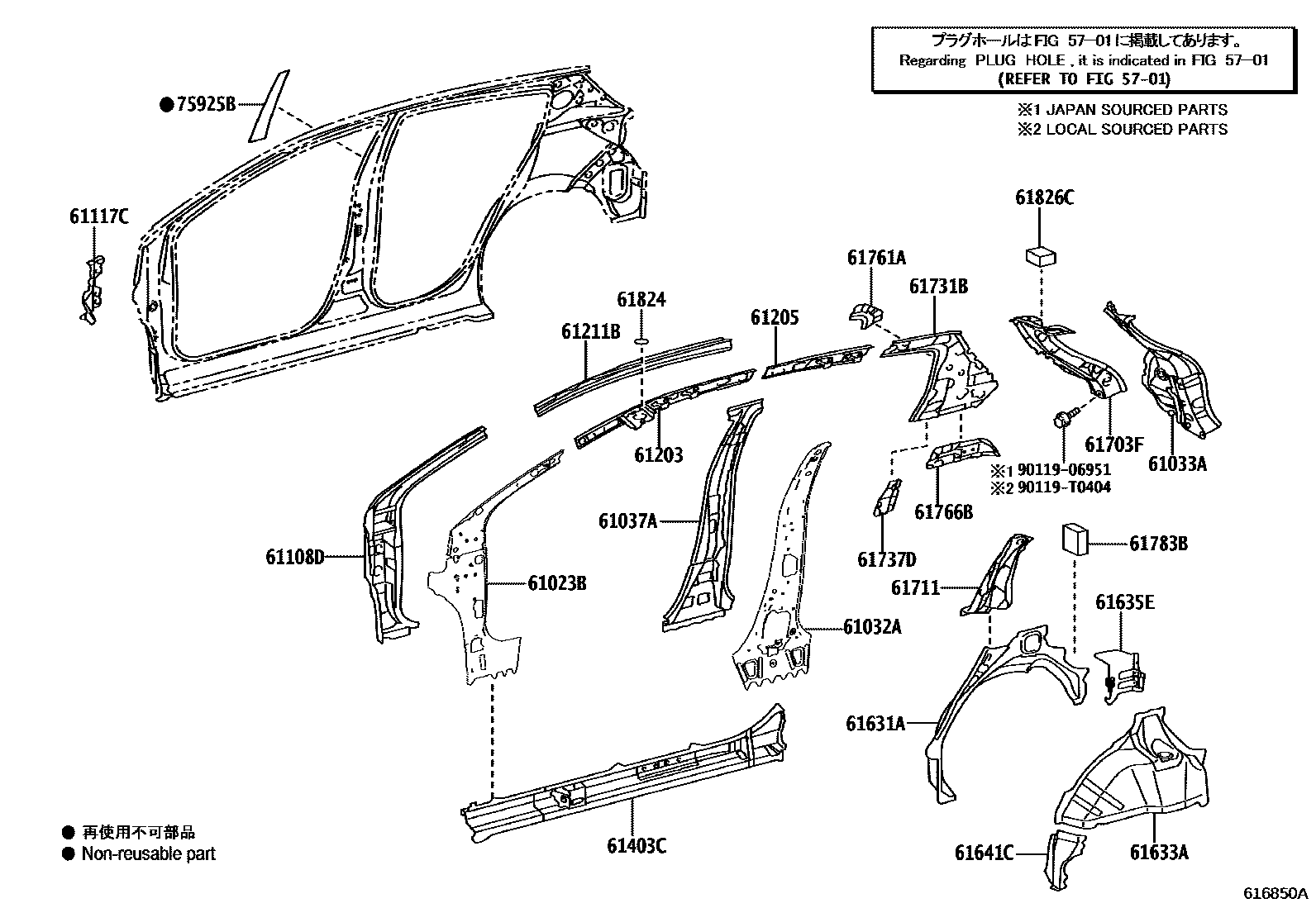

Toyota VIOS/YARIS — SIDE MEMBER

0001 1INNER PANEL, RH 0002 1INNER PANEL, LH 0003 1OUTER PANEL 0004 1INNER PANEL, RH 0005 1INNER PANEL, LH 0006 1OUTER PANEL

5701

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-0D370iNSP151202012

61032APILLAR SUB-ASSY, NO.1 INNER, RH

main61032-0D300iNSP151202012

61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

main61033-0D210iNSP151..HB202012

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-0D917iNSP151202012

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-0D240iNSP151202012

61117CGUSSET, SIDE PANEL TO COWL, RH

main61117-0D030iNSP151202012

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-0D030iNSP151202012

61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH

main61205-0D010iNSP151..SED202012

main61205-0D070iNSP151..HB202012

61211BRAIL, ROOF SIDE, OUTER REAR RH

main61211-0D260iNSP151..SED202012

main61211-0D310iNSP151..HB202012

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-0D370iNSP151202012

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-K0010iNSP151..SED202012

main61631-K0020iNSP151..HB202012

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61605-0D050iNSP151..SED202012

main61607-0D280iNSP151..HB202012

61635EEXTENSION, QUARTER WHEEL HOUSE, RH

main61635-0D060iNSP151..HB202012

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-0D070iNSP151202012

61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH

main61703-0D160iNSP151..HB202012

61711PANEL, ROOF SIDE, OUTER RH

main61711-0D100iNSP151..HB202012

main61711-K0030iNSP151..SED202012

61731BPANEL, ROOF SIDE, INNER RH

main61731-0D170iNSP151..HB202012

main61731-K0060iNSP151..SED202012

61737DREINFORCEMENT, ROOF SIDE, INNER RH

main61737-0D040iNSP151..SED202012

main61737-0D060iNSP151..HB202012

61761AREINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

main61761-0D010iNSP151..HB202012

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-0D080iNSP151..HB202012

61783BPAD, REAR WHEEL OPENING EXTENSION, NO.1

main61783-0D010iNSP151..HB202012

LH

main61783-0D080iNSP151..HB202012

RH

main61783-0D100iNSP151..SED..(G,R)202012

61824PLATE, NOISE CONTROL, NO.1

main61824-0D020iNSP151202012

61826CPAD, NOISE SHUTTER, NO.3

main61826-0D030iNSP151..HB202012

75925BTAPE, BLACK OUT, NO.3 RH

main75925-0D090iNSP151202012

9011906951

main90119-06951¥80

90119T0404

main90119-T0404

27 parts on this diagram · 6 diagrams in section
