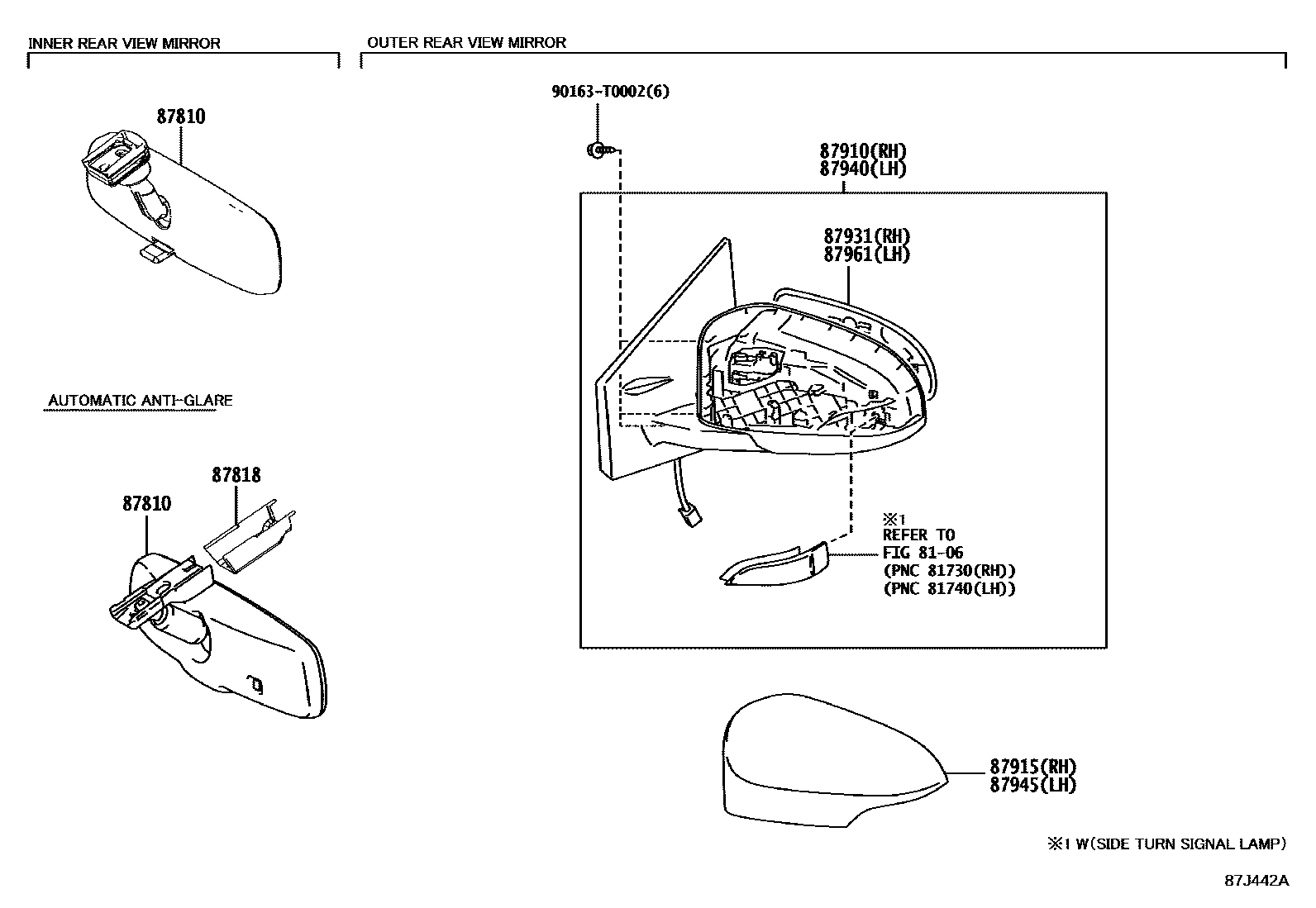

Toyota VIOS/YARIS — MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0D090iNSP151..D,R202012

main87810-0D120iNSP151..G202012

87818COVER, INNER RR VIEW MIRROR

main87818-0W070iNSP151..G¥380202012

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0D830iNSP151..SED..D202012

NO PAINT REQ.

main87910-0D840iNSP151..HB;NSP151..SED..(G,R)202012

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-0D916iNSP151..SED..D202012

PAINT REQ.

main87915-0D917iNSP151..HB;NSP151..SED..(G,R)202012

PAINT REQ.

87931OUTER MIRROR, RH

main87931-0D840iNSP151202012

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0D830iNSP151..SED..D202012

NO PAINT REQ.

main87940-0D840iNSP151..HB;NSP151..SED..(G,R)202012

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-0D916iNSP151..SED..D202012

PAINT REQ.

main87945-0D917iNSP151..HB;NSP151..SED..(G,R)202012

PAINT REQ.

87961MIRROR OUTER, LH

main87961-0D840iNSP151202012

90163T0002

main90163-T0002

10 parts on this diagram · 1 diagram in section
