Toyota VIOS/YARIS — MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0D200iNSP151202012

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0D210iNSP151202012

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-0D150iNSP151202012

58442FCOVER, JACK

main58442-0D120iNSP151202012

58510DCARPET ASSY, FLOOR, FRONT

main58510-0DF11-C1iNSP151202012

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7iNSP151202012-202111

BLACK,TRIM2#

sub90467-05164¥110

main90467-T0004-C4iNSP151202111

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-52050iNSP151¥200202012

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030iNSP151¥380202012

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D240iNSP151202012

58562CSILENCER, FRONT FLOOR, NO.2

main58562-0D200iNSP151202012

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-07049-23iNSP151202012

BLACK,TRIM2#

sub90467-07049¥90

58571FPAD, FRONT FLOOR, FRONT

main58571-0D150iNSP151202012

58573CPAD, FRONT FLOOR CENTER

main58573-0D030iNSP151202012

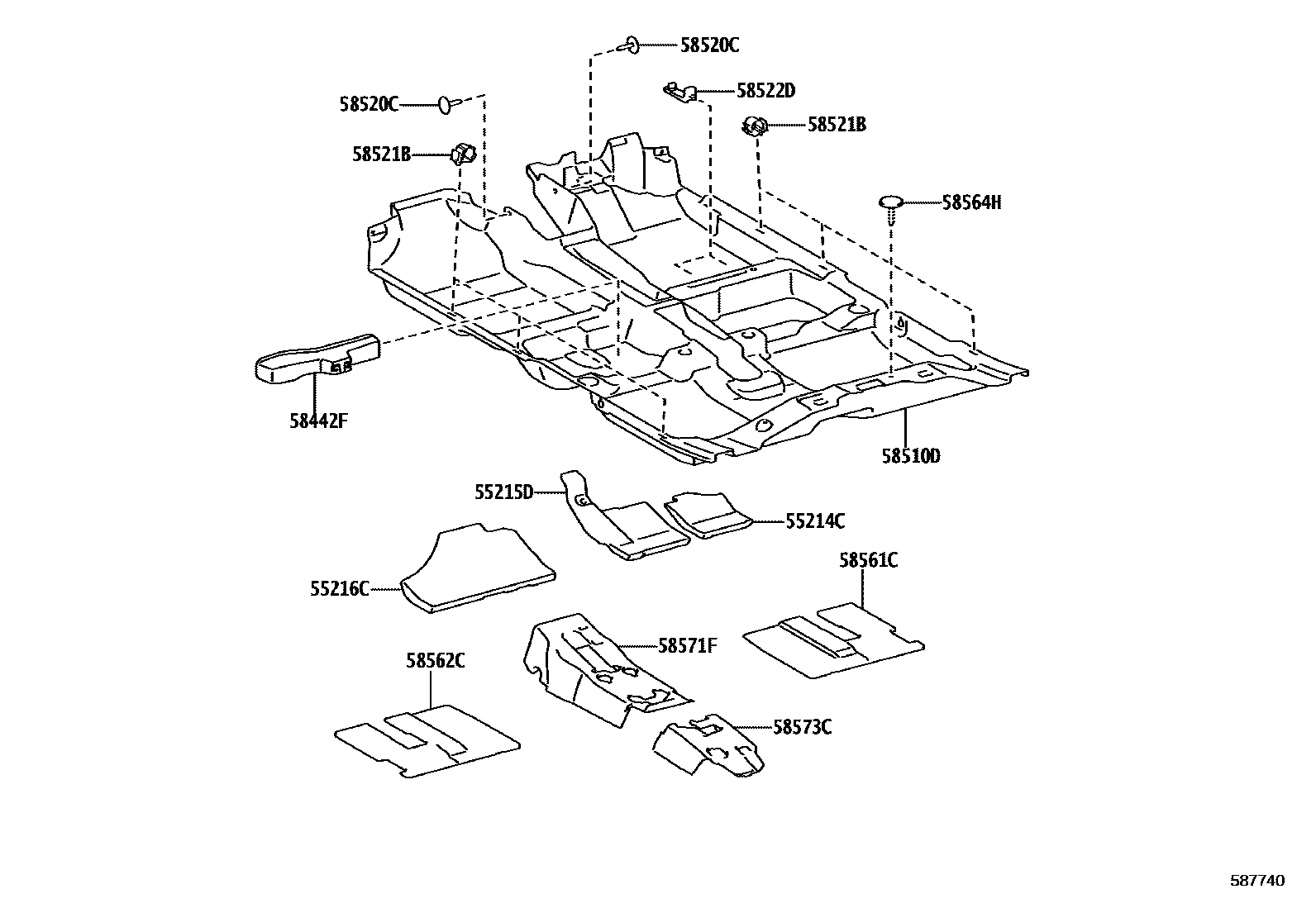

13 parts on this diagram · 1 diagram in section
