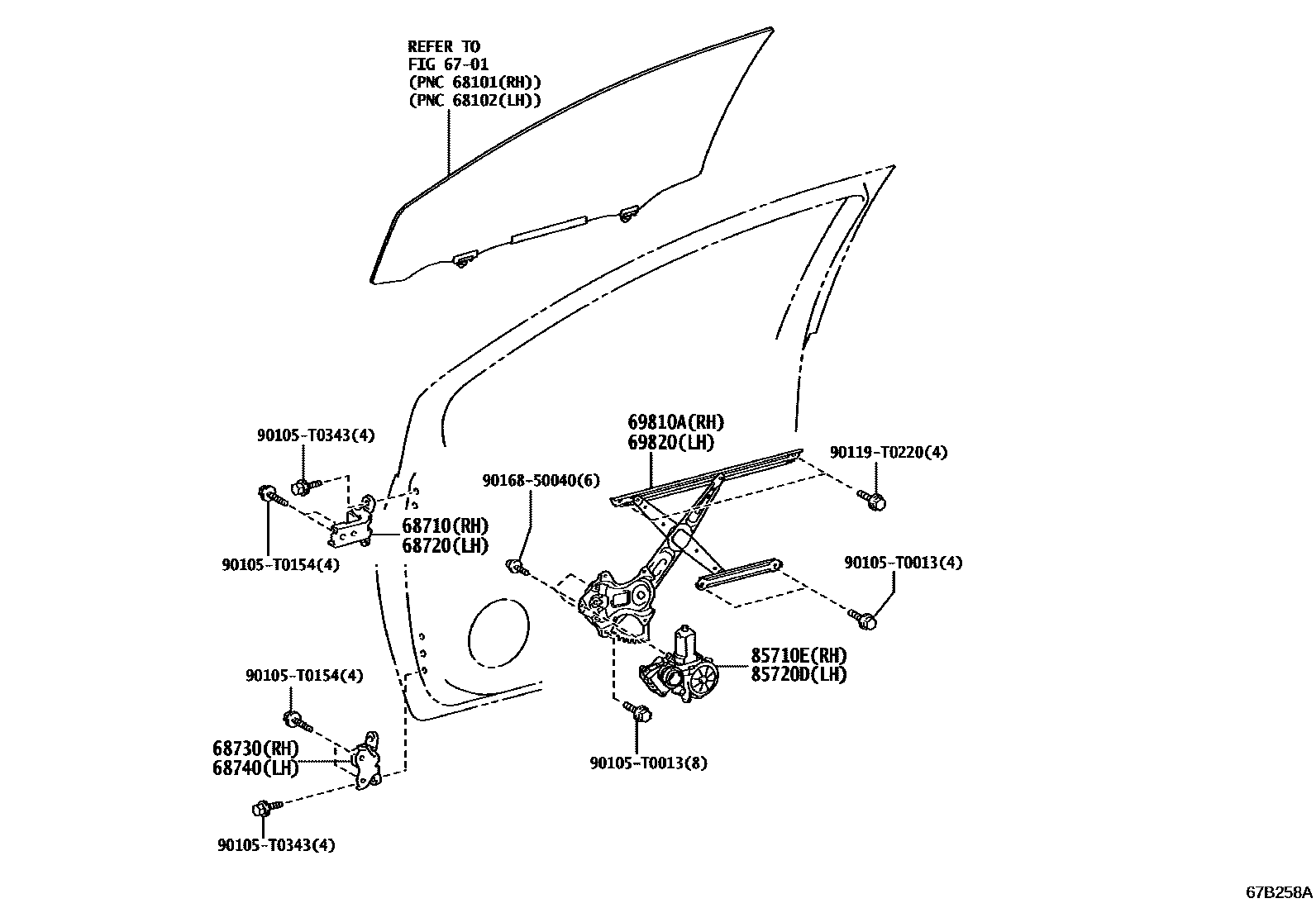

Toyota VIOS/YARIS — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D050iNSP151¥2,030202012

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D050iNSP151¥2,030202012

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iNSP151202012

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iNSP151202012

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-0D351iNSP151202012

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-0D331iNSP151202012

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D560iNSP151202012

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D570iNSP151202012

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90119T0220

main90119-T0220

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
